الأزرق المصري

"Caeruleum" redirects here. For the latin word, see la:Caeruleus.
Egyptian blue

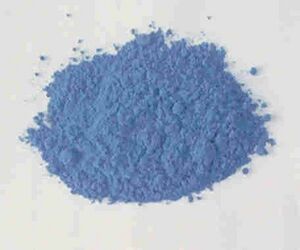

Egyptian blue.jpg
About these coordinates     Color coordinates
Hex triplet#1034A6
sRGBB (r, g, b)(16, 52, 166)
HSV (h, s, v)(226°, 90%, 65%)
CIELChuv (L, C, h)(28, 82, 263°)
المصدر[Unsourced]
ISCC–NBS descriptorVivid blue
B: Normalized to [0–255] (byte)

Egyptian blue, also known as calcium copper silicate (CaCuSi4O10 or CaOCuO(SiO2)4 (calcium copper tetrasilicate)) or cuprorivaite,[1] is a pigment that was used in ancient Egypt for thousands of years. It is considered to be the first synthetic pigment.[2] It was known to the Romans by the name caeruleum. After the Roman era, Egyptian blue fell from use and, thereafter, the manner of its creation was forgotten. In modern times, scientists have been able to analyze its chemistry and reconstruct how to make it.

The ancient Egyptian word wꜣḏ signifies blue, blue-green, and green.

The first recorded use of "Egyptian blue" as a color name in English was in 1809.[3]

الأزرق المصري هو أقدم صبغة صناعية معروفة. كان اللون الأزرق عبر تاريخ البشرية من أكثر الألوان التي تم الاستشهاد بها، حيث ارتبط بالملكية والألوهية، بسبب صعوبة الحصول عليه. استخدمت الأصباغ الزرقاء منذ العصور القديمة، لكن في وقت متأخر عن الأصباغ الأخرى مثل الأحمر أو البني الداكن أو المغرة، والتي يمكن الحصول عليها بسهولة أكبر بشكل طبيعي وتستخدم الآن في الفن. لكن الصبغة الزرقاء الأكثر ذكرًا تأتي من معادن مثل pencil، وهي نادرة وبالتالي باهظة الثمن. [4]

توجد أكبر رواسب لازورد في منطقة هندوكوش في أفغانستان، حيث لا تزال يتم تشغيلها بطرق مشابهة جدًا لتلك المستخدمة منذ أكثر من 3000 عام.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

تعريف

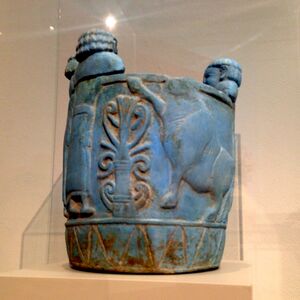

Pyxis made out of "Egyptian blue" faience): Imported to Italy from northern Syria, it was produced 750–700 BC. (Shown at Altes Museum in Berlin)

Egyptian blue is a synthetic blue pigment produced from a mixture of silica, lime, copper, and an alkali. Its color is due to a calcium-copper tetrasilicate CaCuSi4O10 of the same composition as the naturally occurring mineral cuprorivaite.[2] It was first synthesized in Egypt during the Fourth Dynasty and used extensively until the end of the Roman period in Europe,[2] after which its use declined significantly.[5]

The term for it in the Egyptian language is ḫsbḏ-ỉrjt (khesbedj irtiu), which referred to artificial lapis lazuli (ḫsbḏ).[6] It was used in antiquity as a blue pigment to color a variety of different media such as stone, wood, plaster, papyrus, and canvas, and in the production of numerous objects, including cylinder seals, beads, scarabs, inlays, pots, and statuettes. Sometimes, it is referred to in Egyptological literature as blue frit. Some have argued that this is an erroneous term that should be reserved for use to describe the initial phase of glass or glaze production,[7] while others argue that Egyptian blue is a frit in both the fine and coarse form since it is a product of solid state reaction.[8] Its characteristic blue color, resulting from one of its main components—copper—ranges from a light to a dark hue, depending on differential processing and composition.

Apart from Egypt, it has also been found in the Near East, the Eastern Mediterranean, and the limits of the Roman Empire. It is unclear whether the pigment's existence elsewhere was a result of parallel invention or evidence of the technology's spread from Egypt to those areas.


تاريخ وخلفية

الأزرق المصري في إحدى الرسومات الفرعونية القديمة.

The ancient Egyptians held the color blue in very high regard and were eager to present it on many media and in a variety of forms. They also desired to imitate the semiprecious stones turquoise and lapis lazuli, which were valued for their rarity and stark blue color. Use of naturally occurring minerals such as azurite to acquire this blue was impractical, as these minerals were rare and difficult to work.[بحاجة لمصدر] Therefore, to have access to the large quantities of blue color to meet demand, the Egyptians needed to manufacture the pigment themselves.

The earliest evidence for the use of Egyptian blue, identified by Egyptologist Lorelei H. Corcoran of The University of Memphis, is on an alabaster bowl dated to the late pre-dynastic period or Naqada III (circa 3250 BC), excavated at Hierakonpolis, and now in the Museum of Fine Arts, Boston.[9] In the Middle Kingdom (2050–1652 BC) it continued to be used as a pigment in the decoration of tombs, wall paintings, furnishings, and statues, and by the New Kingdom (1570–1070 BC) began to be more widely used in the production of numerous objects. Its use continued throughout the Late period and Greco-Roman period, only dying out in the fourth century AD, when the secret to its manufacture was lost.[10]

No written information exists in ancient Egyptian texts about the manufacture of Egyptian blue in antiquity, and it was first mentioned only in Roman literature by Vitruvius during the first century BC.[11] He refers to it as caeruleum and describes in his work De architectura how it was produced by grinding sand, copper, and natron, and heating the mixture, shaped into small balls, in a furnace. Lime is necessary for the production as well, but probably lime-rich sand was used. Theophrastus gives it the Greek term κύανος (kyanos, blue),[12] which originally probably referred to lapis lazuli. Finally, only at the beginning of the nineteenth century was interest renewed in learning more about its manufacture when it was investigated by Humphry Davy in 1815,[13] and others such as W. T. Russell and F. Fouqué.

التركيب والتصنيع

Several experiments have been carried out by scientists and archaeologists interested in analyzing the composition of Egyptian blue and the techniques used to manufacture it. It is now generally regarded as a multiphase material that was produced by heating together quartz sand, a copper compound, calcium carbonate, and a small amount of an alkali (ash from salt-tolerant, halophyte plants or natron) at temperatures ranging between 800 and 1,000 °C (1,470 and 1,830 °F) (depending on the amount of alkali used) for several hours.[14] The result is cuprorivaite or Egyptian blue, carbon dioxide, and water vapor:

Cu2CO3(OH)2 + 8 SiO2 + 2 CaCO3 → 2 CaCuSi4O10 + 3 CO2 + H2O

في حالته النهائية، Egyptian blue consists of rectangular blue crystals together with unreacted quartz and some glass. From the analysis of a number of samples from Egypt and elsewhere, the weight percentage of the materials used to obtain Egyptian blue in antiquity was determined usually to range within these amounts:[14]

To obtain theoretical cuprorivaite, where only blue crystals occur, with no excess of unreacted quartz or formation of glass, these percentages would need to be used:[14]

  • 64% silica
  • 15% calcium oxide
  • 21% copper oxide

However, none of the analyzed samples from antiquity was made of this definitive composition, as all had excesses of silica, together with an excess of either CuO or CaO.[15] This may have been intentional; an increase in the alkali content results in the pigment containing more unreacted quartz embedded in a glass matrix, which in turn results in a harder texture.[14] Lowering the alkali content (less than 1%), though, does not allow glass to form and the resultant Egyptian blue is softer, with a hardness of 1–2 Mohs.[15]

In addition to the way the different compositions influenced texture, the way Egyptian blue was processed also had an effect on its texture, in terms of coarseness and fineness. Following a number of experiments, Tite et al. concluded that for fine-textured Egyptian blue, two stages were necessary to obtain uniformly interspersed crystals. First, the ingredients are heated, and the result is a coarse-textured product. This is then ground to a fine powder and water is added. The paste is then reshaped and fired again at temperatures ranging between 850 and 950 °C for one hour. These two stages possibly were needed to produce a paste that was fine enough for the production of small objects. Coarse-textured Egyptian blue, though, would not have gone through the second stage. Since it usually is found in the form of slabs (in the dynastic periods) and balls (in the Greco-Roman period), these either could have been awaiting to be processed through a second stage, where they would be ground and finely textured, or they would have been ground for use as a blue pigment.[14]

The shade of blue reached was also related to the coarseness and fineness of Egyptian blue as it was determined by the degree of aggregation of the Egyptian blue crystals. Coarse Egyptian blue was relatively thick in form, due to the large clusters of crystals which adhere to the unreacted quartz. This clustering results in a dark blue color that is the appearance of coarse Egyptian blue. Alternatively, fine-textured Egyptian blue consists of smaller clusters that are uniformly interspersed between the unreacted quartz grains and tends to be light blue in color.[14] Diluted light blue, though, is used to describe the color of fine-textured Egyptian blue that has a large amount of glass formed in its composition, which masks the blue color, and gives it a diluted appearance. It depends on the level of alkali added to the mixture, so with more alkali, more glass formed, and the more diluted the appearance.[14] This type of Egyptian blue is especially evident during the eighteenth dynasty and later, and probably is associated with the surge in glass technology at this time.[7]

If certain conditions were not met, the Egyptian blue would not be satisfactorily produced. For example, if the temperatures were above 1050 °C, it would become unstable.[16] If too much lime was added, wollastonite (CaSiO3) forms and gives the pigment a green color. Too much of the copper ingredients results in excesses of copper oxides cuprite and tenorite.[16]

Sources

The main component of Egyptian blue was the silica, and quartz sand found adjacent to the sites where Egyptian blue was being manufactured may have been its source,[14] although no concrete evidence supports this hypothesis. The only evidence cited is by Jakcsh et al., who found crystals of titanomagnetite, a mineral found in desert sand, in samples collected from the tomb of Sabni (sixth dynasty). Its presence in Egyptian blue indicates that quartz sand, rather than flint or chert, was used as the silica source. This contrasts with the source of silica used for glass-making at Qantir (New Kingdom Ramesside site), which is quartz pebbles and not sand.[17]

It is believed that calcium oxide was not added intentionally on its own during the manufacture of Egyptian blue, but introduced as an impurity in the quartz sand and alkali.[14] As to whether the craftsmen involved in the manufacture realized the importance of adding lime to the Egyptian blue mixture is not clear from this.

The source of copper could have been either a copper ore (such as malachite), filings from copper ingots, or bronze scrap and other alloys. Before the New Kingdom, evidence is scarce as to which copper source was being used, but it is believed to have been copper ores. During the New Kingdom, evidence has been found for the use of copper alloys, such as bronze, due to the presence of varying amounts of tin, arsenic, or lead found in the Egyptian blue material.[16] The presence of tin oxide could have come from copper ores that contained tin oxide and not from the use of bronze. However, no copper ores have been found with these amounts of tin oxide.[16] Why a switch from the use of copper ores in earlier periods, to the use of bronze scrap during the Late Bronze Age is unclear as yet.

The total alkali content in analyzed samples of Egyptian blue is greater than 1%, suggesting the alkali was introduced deliberately into the mixture and not as an impurity from other components. Sources of alkali either could have been natron from areas such as Wadi Natroun and El-Kab, or plant ash. By measuring the amounts of potash and magnesia in the samples of Egyptian blue, it is generally possible to identify which source of alkali had been used, since the plant ash contains higher amounts of potash and magnesia than the natron. However, due to the low concentration of alkali in Egyptian blue, which is a mere 4% or less, compared to glass, for example, which is at 10–20%, identifying the source is not always easy. The alkali source likely was natron,[15] although the reasons for this assumption are unclear. However, analysis by Jaksch et al. of various samples of Egyptian blue identified variable amounts of phosphorus (up to 2 wt %), suggesting the alkali source used was in actuality plant ash and not natron.[16] Since the glass industry during the Late Bronze Age used plant ash as its source of alkali,[18] a link in terms of the alkali used for Egyptian blue before and after the introduction of the glass industry might have been possible.

Archaeological evidence

Amarna

In the excavations at Amarna, Lisht, and Malkata at the beginning of the twentieth century, Petrie uncovered two types of vessels that he suggested were used in antiquity to make Egyptian blue: bowl-shaped pans and cylindrical vessels or saggers. In recent excavations at Amarna by Barry Kemp (1989), very small numbers of these "fritting" pans were uncovered, although various remaining pieces of Egyptian blue 'cake' were found, which allowed the identification of five different categories of Egyptian blue forms and the vessels associated with them: large round flat cakes, large flat rectangular cakes, bowl-shaped cakes, small sack-shaped pieces, and spherical shapes.[19] No tin was found in the samples analyzed, which the authors suggest is an indication that use of scrap copper was possible instead of bronze.[20]

Qantir

In the 1930s, Mahmud Hamza excavated a number of objects related to the production of Egyptian blue at Qantir, such as Egyptian blue cakes and fragments in various stages of production,[21] providing evidence that Egyptian blue was actually produced at the site. Recent excavations at the same site uncovered a large copper-based industry, with several associated crafts, namely bronze-casting, red-glass making, faience production, and Egyptian blue.[21] Ceramic crucibles with adhering remains of Egyptian blue were found in the excavations, suggesting again it had been manufactured on site. These Egyptian blue 'cakes' possibly were later exported to other areas around the country to be worked, as a scarcity of finished Egyptian blue products existed on site. For example, Egyptian blue cakes were found at Zawiyet Umm el-Rakham, a Ramesside fort near the Libyan coast, indicating in fact that the cakes were traded, and worked at and reshaped away from their primary production site.[21]


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

صلات بمواد زجاجية أخرى وبفلزات

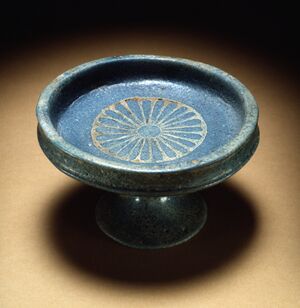

Blue faience saucer and stand, New Kingdom (1400–1325 BC)

Egyptian blue is closely related to the other vitreous materials produced by the ancient Egyptians, namely glass and Egyptian faience, and it is possible that the Egyptians did not employ separate terms to distinguish the three products from one another.[10] Although it is easier to distinguish between faience and Egyptian blue, due to the distinct core of faience objects and their separate glaze layers, it sometimes is difficult to differentiate glass from Egyptian blue due to the very fine texture that Egyptian blue occasionally could have. This is especially true during the New Kingdom, as Egyptian blue became more refined and glassy and continued as such into the Greco-Roman period.[22]

Since Egyptian blue, like faience, is a much older technology than glass, which only begins during the reign of Thutmose III (1479–1425 BC), changes in the manufacture of Egyptian blue undoubtedly were associated with the introduction of the glass industry.

Analysis of the source of copper used in the manufacture of Egyptian blue indicates a relationship with the contemporaneous metal industry. Whereas in the earlier periods, it is most probable that copper ores were used, during the reign of Tutmosis III, the copper ore is replaced by the use of bronze filings.[7] This has been established by the detection of a specific amount of tin oxide in Egyptian blue, which only could have resulted from the use of tin bronze scraps as the source of copper, which coincides with the time when bronze became widely available in ancient Egypt.

Occurrences outside Egypt

Egyptian blue was found in Western Asia during the middle of third millennium BC in the form of small artifacts and inlays, but not as a pigment.[7] It was found in the Mediterranean area at the end of the Middle Bronze Age, and traces of tin were found in its composition suggesting the use of bronze scrap instead of copper ore as the source of copper.[7] During the Roman period, use of Egyptian blue was extensive, as a pot containing the unused pigment, found in 1814 in Pompeii, illustrates. It was also found as unused pigment in the tombs of a number of painters. Etruscans also used it in their wall paintings. The related Chinese blue has been suggested as having Egyptian roots.

Later, Raphael used Egyptian blue in his Triumph of Galatea.[23]

Roman production of Egyptian blue

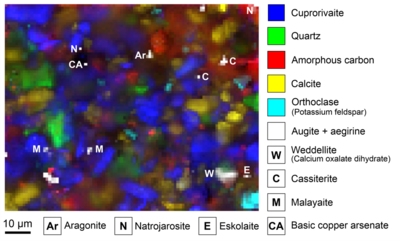

Raman microspectroscopic phase distribution map of a paint layer from the church of St. Peter above Gratsch showing several minor, major and trace compounds of Egyptian blue.[24]

Around the turn of the eras, Roman sources report that a certain Vestorius transferred the production technology from Alexandria to Pozzuoli near Naples (Campania, Southern Italy).[25] In fact, archaeological evidences confirm production sites in the northern Phlegraean Fields and seem to indicate a monopoly in the manufacture and trade of pigment spheres. Due to its almost exclusive use, Egyptian blue is the blue pigment par excellence of Roman antiquity; its art technological traces vanish in the course of the Middle Ages.[24]

In 2021, Early Medieval Egyptian blue (fifth/sixth century AD) was identified on a monochrome blue mural fragment from the church of St. Peter above Gratsch (South Tyrol, Northern Italy). By a new analytical approach based on Raman microspectroscopy, 28 different minerals with contents from the percent range down to 100 ppm were identified. Inclusion of knowledge from neighbouring disciplines made possible to read out the information about the type and provenance of the raw materials, synthesis and application of the pigment and ageing of the paint layer preserved in the previously not accessible trace components, and thus to reconstruct the individual "biography" of the Egyptian blue from St. Peter. This paradigm shift in the research history of Egyptian blue provided natural scientific evidences for the production in the northern Phlegraean fields (agreement with trace minerals found in the beach sands at the Gulf of Gaeta), the use of a sulphidic copper ore (instead of often-mentioned metallic copper or bronze), and plant ash as flux in the raw material mixture. Furthermore, indications for a synthesis predominated by solid state reactions were found, while the melting of the raw materials into glass most likely played a negligible role.[24]

A follow-up study on Roman Imperial pigment balls excavated in Aventicum and Augusta Raurica (Switzerland; first to third century AD) confirmed the results in 2022. The consistent composition of around 40 identified minerals establishes a connection to the northern Phlegraean Fields; a sulphidic copper ore and plant ash have also left their marks. Thus, the Roman production monopoly probably existed for centuries. In addition, the analyses revealed unwanted by-products of the synthesis, locally limited to microparticles on the sphere's surfaces, which can be traced back to suboptimal burning times or mixing ratios, respectively: a cuprorivaite with crystal defects in its layer structure and a copper-bearing green glass phase, characterised by Raman spectroscopy for the first time.[26]

Modern applications

Egyptian blue's extremely powerful and long-lived infrared luminescence under visible light has enabled its presence to be detected on objects which appear unpainted to the human eye.[27] This property has also been used to identify traces of the pigment on paintings produced as late as the sixteenth century, long after its use was presumed to have died out.[28] The luminescence in the near-infrared, where neither fat nor hemoglobin show high absorption coefficients, in conjunction with the capacity of Egyptian blue to delaminate by splitting into nanosheets after immersion in water, also indicates it may have several high-technology applications, such as in biomedicine (e.g. bioimaging), telecommunications, laser technology, and security inks.[29][30][31]

Researchers at the Lawrence Berkeley National Laboratory discovered that Egyptian blue pigment absorbs visible light, and emits light in the near-infrared range. This suggests that Egyptian blue pigment could be used in construction materials designed to cool rooftops and walls in sunny climates, and for tinting glass to improve photovoltaic cell performance.[32][33][34]

انظر أيضاً

References

  1. ^ Cuprorivaite, mindat.org
  2. ^ أ ب ت Eastaugh, Nicholas; Walsh, Valentine; Chaplin, Tracey; Siddall, Ruth (2004). "Egyptian blue". The pigment compendium: Optical microscopy of historical pigments. Oxford, UK: Elsevier Butterworth Heinemann. pp. 147–148.
  3. ^ Maerz and Paul A Dictionary of Color New York:1930 McGraw-Hill Page 194; Color Sample of Sunset: Page 93 Plate 35 Color Sample L8
  4. ^ "Egyptian blue". archeohistories. 2023-10-15. Retrieved 2023-10-15.
  5. ^ McCouat, Philip (2018). "Egyptian blue: The colour of technology". artinsociety.com. Journal of Art in Society. Archived from the original on 2019-03-28. Retrieved 2019-05-29.
  6. ^ Pagès-Camagna, S. (1998). "Bleu et vert égyptiens en question: vocabulaire et analyses". In Colinart S, Menu M, eds., La couleur dans la peinture et l'émaillage de l'Egypte Ancienne, CUEBC, Ravello, 20–22 March 1997, Edipuglia, Bari, pp. 51–59.
  7. ^ أ ب ت ث ج Lee, L.; Quirke, S. (2000). "Painting materials". In P. Nicholson; I. Shaw (eds.). Ancient Egyptian materials and technology. Cambridge University Press. ISBN 978-0-521-45257-1.
  8. ^ Nicholson, P. T. & Henderson, J. (2000). "Glass". In: P. Nicholson and I. Shaw (eds.), Ancient Egyptian materials and technology. Cambridge: Cambridge University Press. ISBN 0-521-45257-0
  9. ^ Lorelei H. Corcoran, "The Color Blue as an 'Animator' in Ancient Egyptian Art", in Rachael B.Goldman, (ed.), Essays in Global Color History: Interpreting the Ancient Spectrum (New Jersey: Gorgias Press, 2016), pp. 59–82.
  10. ^ أ ب Chase, W. T. (1971:. "Egyptian blue as a pigment and ceramic material". In: R. Brill (ed.) Science and Archaeology. Cambridge, MMassachusetts: MIT Press. ISBN 0-262-02061-0
  11. ^ Vitruvius, De Architectura, Book VII, Chapter 11.
  12. ^ Theophrastus, De Lapidibus (On Stones), section 55.
  13. ^ Sir Humphry Davy (1815), "Some experiments and observations on the colours used in painting by the ancients", Philosophical Transactions of the Royal Society of London, vol. 105, pages 97–124. Reprinted in: The Collected Works of Sir Humphry Davy, ... (London, England: Smith, Elder, and Co., 1840), vol. VI, pp. 131–159.
  14. ^ أ ب ت ث ج ح خ د ذ Tite, M.S., Bimson, M. & Cowell, M.R. (1987). "The technology of Egyptian blue". In M. Bimson; I.C. Freestone (eds.). Early Vitreous materials. British Museum occasional paper 56. London: British Museum. ISBN 978-0-86159-056-8.{{cite book}}: CS1 maint: multiple names: authors list (link)
  15. ^ أ ب ت Tite, M.S., Bimson, M. & Cowell, M.R. (1984). "Technological examination of Egyptian blue". In J. B. Lambert (ed.). Archaeological Chemistry III. Advances in chemistry series 205. Washington, DC: American Chemical Society. ISBN 978-0-8412-0767-7.{{cite book}}: CS1 maint: multiple names: authors list (link)
  16. ^ أ ب ت ث ج Jaksch, H., Seipel, W., Weiner, K.L. & El Goresy, A. (1983). "Egyptian Blue- Cuprorivaite, a window to Ancient Egyptian technology". Die Naturwissenschaften. 70 (11): 525–535. Bibcode:1983NW.....70..525J. doi:10.1007/BF00376668. S2CID 2457936.{{cite journal}}: CS1 maint: multiple names: authors list (link)
  17. ^ Rehren, Th.; Pusch, E.B. (2005). "Late Bronze Age glass production at Qantir-Piramesses, Egypt". Science. 308 (5729): 1756–1758. Bibcode:2005Sci...308.1756R. doi:10.1126/science.1110466. PMID 15961663. S2CID 26214625.
  18. ^ Rehren, Th. (2001). "Aspects of the production of cobalt-blue glass in Egypt". Archaeometry. 43 (4): 483–489. doi:10.1111/1475-4754.00031.
  19. ^ Kemp, B. 1989, Amarna Reports V. London: Egypt Exploration Society. ISBN 0-85698-109-5
  20. ^ Weatherhead, F. & Buckley, A. 1989, Artists’ pigments from Amarna. In: B. Kemp (ed.), Amarna Reports V: 202–239. London: Egypt Exploration Society. ISBN 0-85698-109-5
  21. ^ أ ب ت Rehren, Th.; Pusch, E. B.; Herold, A. (2001). "Problems and possibilities in workshop reconstruction: Qantir and the organization of LBA glass working sites". In A. J. Shortland (ed.). The social context of technological change, Egypt and the Near East 1650–1550 BC. Proceedings of a conference held at St Edmund Hall, Oxford 12–14 September 2000. Oxford: Oxbow Books. ISBN 978-1-84217-050-2.
  22. ^ Nicholson, P. T. & Peltenburg, E. (2000). "Egyptian faience". In: In: P. Nicholson and I. Shaw (eds.), Ancient Egyptian materials and technology. Cambridge: Cambridge University Press. ISBN 0-521-45257-0
  23. ^ "Ancient Hue Detected in Renaissance Painting - Archaeology Magazine". www.archaeology.org. Retrieved 2021-10-12.
  24. ^ أ ب ت Petra Dariz; Thomas Schmid (2021). "Trace compounds in Early Medieval Egyptian blue carry information on provenance, manufacture, application, and ageing". Scientific Reports. 11 (11296): 11296. Bibcode:2021NatSR..1111296D. doi:10.1038/s41598-021-90759-6. ISSN 2045-2322. PMC 8163881. PMID 34050218.
  25. ^ ”The recipes for blue [sky blue] were first discovered in Alexandria, and subsequently Vestorius began to manufacture it in Puteoli as well.”, from: Vitruvius (Marcus Vitruvius Pollio): De architectura libri decem, Liber VII, Caput Xl (first century A.D.); English translation: Ingrid D. Rowland (1999). "Chapter 11: Blue". Ten Books on Architecture. Book 7: Finishing. Cambridge: Cambridge University Press. p. 94. ISBN 978-0-511-84095-1..
  26. ^ Petra Dariz; Thomas Schmid (2022). "Raman focal point on Roman Egyptian blue elucidates disordered cuprorivaite, green glass phase and trace compounds". Scientific Reports. 12 (15596): 15596. Bibcode:2022NatSR..1215596D. doi:10.1038/s41598-022-19923-w. ISSN 2045-2322. PMC 9481618. PMID 36114229.
  27. ^ Verri, G. (June 2009). "The spatially resolved characterisation of Egyptian blue, Han blue and Han purple by photo-induced luminescence digital imaging". Analytical and Bioanalytical Chemistry, Vol 394, Issue 4, pp. 1011–1021.
  28. ^ McCouat, P. "Egyptian blue: the colour of technology". Journal of Art in Society
  29. ^ Accorsi, G. et al. (2009). "The exceptional near-infrared luminescence of cuprorivaite (Egyptian blue)". Chemical Communications, Issue 23, p. 3392.
  30. ^ Bredal-Jørgensen, J. et al. (September 2011). "Striking presence of Egyptian blue identified in a painting by Giovanni Battista Benvenuto from 1524". Analytical and Bioanalytical Chemistry, Vol 401, Issue 4, p. 1433.
  31. ^ Gabriele Selvaggio, Alexey Chizhik, Robert Nißler, llyas Kuhlemann, Daniel Meyer, Loan Vuong, Helen Preiß, Niklas Herrmann, Florian A. Mann, Zhiyi Lv, Tabea A. Oswald, Alexander Spreinat, Luise Erpenbeck, Jörg Großhans, Volker Karius, Andreas Janshoff, Juan Pablo Giraldo, Sebastian Kruss: (2020). "Exfoliated near infrared fluorescent silicate nanosheets for (bio)photonics". In Nature Communications Vol. 11, No. 1495. DOI:10.1038/s41467-020-15299-5
  32. ^ "Egyptian Blue for Energy Efficiency". Lawrence Berkeley Laboratory Heat Island Group (in الإنجليزية). October 9, 2018. Retrieved 2018-10-14.
  33. ^ "World's 1st artificially-made pigment Egyptian blue, can help produce solar energy". India Today (in الإنجليزية). October 11, 2018. Retrieved October 14, 2018.
  34. ^ "Scientists give solar PV a paint job". PV magazine USA (in الإنجليزية الأمريكية). October 9, 2018. Retrieved October 14, 2018.

Further reading

  • Dayton, J. 1978, Minerals, Metals, Glazing & Man, or, Who Was Sesostris I? London: Harrap. ISBN 0-245-52807-5.
  • Lucas, A. & Harris. J.R. [1948] 1999, Ancient Egyptian Materials and Industries. Dover books on Egypt. Mineola, N.Y. : Dover. ISBN 0-486-40446-3.
  • Noll, W. 1981, Mineralogy and technology of the painted ceramics of ancient Egypt. In: M.J. Huges (ed.) Scientific studies in ancient ceramics. Occasional paper 19. London : British Museum, ISBN 0-86159-018-X.
  • Rehren, Th. & Pusch, E.B. & Herold, A. 1998, Glass coloring works within a copper-centered industrial complex in Late Bronze Age Egypt. In: McCray, P (ed), The prehistory and history of glassmaking technology. Ceramics and Civilization 8. Westerville, OH: American Ceramic Society. ISBN 1-57498-041-6
  • Riederer, J. 1997, Egyptian Blue. In: E.W. Fitzhugh, (ed.), Artists’ pigments 3: 23–45. Oxford university Press. ISBN 0-89468-256-3
  • Tite, M.S. 1985, Egyptian blue, faience and related materials: technological investigations. In: R.E. Jones & H.W. Catling (eds.) Science in Archaeology: Proceedings of a Meeting Held at the British School at Athens, January 1985. London : Leopard's Head. ISBN 0-904887-02-2.
  • Warner, T.E. 2011, Artificial Cuprorivaite CaCuSi4O10 (Egyptian Blue) by a Salt-Flux Method. In: Terence E. Warner, Synthesis, Properties and Mineralogy of Important Inorganic Materials, 26–49. Chichester: Wiley. ISBN 978-0-470-74611-0.
  • Wiedemann, H.G., Bayer, G. & Reller, A. 1998, Egyptian blue and Chinese blue. Production technologies and applications of two historically important blue pigments. In: S. Colinart & M. Menu (eds.), La couleur dans la peinture et lémaillage de l’Egypte Ancienne. Scienze e materiali del patrimonio culturale 4. Bari: Edipuglia. ISBN 88-7228-201-2.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
