صمام ثنائي باعث للضوء
 LED in white. The LEDs in this picture are housed in "regular" cases, but there are many variants of LEDs. | |
| مبدأ العمل | Electroluminescence |
|---|---|
| اِختُرِعَ |
|
| أول انتاج | أكتوبر 1962 |
| ترتيب الدبابيس | Anode and cathode |
| الرمز الإلكتروني | |
_8.5.4.2.svg&filetimestamp=20231005131944&) | |
.svg&filetimestamp=20231005131916&)
مصباح ثنائي باعث للضوء أو ديود باعث للضوء ( light-emitting diode ؛ LED) هو مصدر ضوئي يبعث الضوء حينما يمر به تيار كهربائي. يرجع تطويره إلى الستينات من القرن العشرين عندما اِكتـُشِفت أشباه الموصلات. في البدأ كان يبعث ضوءا واحدا ضعيفا ، لكن مع الوقت أمكن تطويره لبعث الثلاثة ألوان المستخدمة كثيرا في التكنولوجيا اليومية، الأحمر والأزرق والأصفر. وكثيرا ما يـُستعمل في اللوحات الكبيرة المنيرة وغيرها. وأصبح لها طاقة كبيرة على إصدار ضوءا ناصعاً.
light-emitting diode (LED) is a semiconductor device that emits light when current flows through it. Electrons in the semiconductor recombine with electron holes, releasing energy in the form of photons. The color of the light (corresponding to the energy of the photons) is determined by the energy required for electrons to cross the band gap of the semiconductor.[5] White light is obtained by using multiple semiconductors or a layer of light-emitting phosphor on the semiconductor device.[6]
Appearing as practical electronic components in 1962, the earliest LEDs emitted low-intensity infrared (IR) light.[7] Infrared LEDs are used in remote-control circuits, such as those used with a wide variety of consumer electronics. The first visible-light LEDs were of low intensity and limited to red.
Early LEDs were often used as indicator lamps, replacing small incandescent bulbs, and in seven-segment displays. Later developments produced LEDs available in visible, ultraviolet (UV), and infrared wavelengths with high, low, or intermediate light output, for instance, white LEDs suitable for room and outdoor lighting. LEDs have also given rise to new types of displays and sensors, while their high switching rates are useful in advanced communications technology with applications as diverse as aviation lighting, fairy lights, strip lights, automotive headlamps, advertising, general lighting, traffic signals, camera flashes, lighted wallpaper, horticultural grow lights, and medical devices.[8]
LEDs have many advantages over incandescent light sources, including lower power consumption, a longer lifetime, improved physical robustness, smaller sizes, and faster switching. In exchange for these generally favorable attributes, disadvantages of LEDs include electrical limitations to low voltage and generally to DC (not AC) power, the inability to provide steady illumination from a pulsing DC or an AC electrical supply source, and a lesser maximum operating temperature and storage temperature.
LEDs are transducers of electricity into light. They operate in reverse of photodiodes, which convert light into electricity.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
History
Discoveries and early devices
Electroluminescence as a phenomenon was discovered in 1907 by the English experimenter H. J. Round of Marconi Labs, using a crystal of silicon carbide and a cat's-whisker detector.[9][10] Russian inventor Oleg Losev reported the creation of the first LED in 1927.[11] His research was distributed in Soviet, German and British scientific journals, but no practical use was made of the discovery for several decades, partly due to the very inefficient light-producing properties of silicon carbide, the semiconductor Losev used.[12][13]
In 1936, Georges Destriau observed that electroluminescence could be produced when zinc sulphide (ZnS) powder is suspended in an insulator and an alternating electrical field is applied to it. In his publications, Destriau often referred to luminescence as Losev-Light. Destriau worked in the laboratories of Madame Marie Curie, also an early pioneer in the field of luminescence with research on radium.[14][15]
Hungarian Zoltán Bay together with György Szigeti pre-empted LED lighting in Hungary in 1939 by patenting a lighting device based on silicon carbide, with an option on boron carbide, that emitted white, yellowish white, or greenish white depending on impurities present.[16] Kurt Lehovec, Carl Accardo, and Edward Jamgochian explained these first LEDs in 1951 using an apparatus employing SiC crystals with a current source of a battery or a pulse generator and with a comparison to a variant, pure, crystal in 1953.[17][18]
Rubin Braunstein[19] of the Radio Corporation of America reported on infrared emission from gallium arsenide (GaAs) and other semiconductor alloys in 1955.[20] Braunstein observed infrared emission generated by simple diode structures using gallium antimonide (GaSb), GaAs, indium phosphide (InP), and silicon-germanium (SiGe) alloys at room temperature and at 77 kelvins. In 1957, Braunstein further demonstrated that the rudimentary devices could be used for non-radio communication across a short distance. As noted by Kroemer[21] Braunstein "…had set up a simple optical communications link: Music emerging from a record player was used via suitable electronics to modulate the forward current of a GaAs diode. The emitted light was detected by a PbS diode some distance away. This signal was fed into an audio amplifier and played back by a loudspeaker. Intercepting the beam stopped the music. We had a great deal of fun playing with this setup." This setup presaged the use of LEDs for optical communication applications.
In September 1961, while working at Texas Instruments in Dallas, Texas, James R. Biard and Gary Pittman discovered near-infrared (900 nm) light emission from a tunnel diode they had constructed on a GaAs substrate.[7] By October 1961, they had demonstrated efficient light emission and signal coupling between a GaAs p-n junction light emitter and an electrically isolated semiconductor photodetector.[22] On August 8, 1962, Biard and Pittman filed a patent titled "Semiconductor Radiant Diode" based on their findings, which described a zinc-diffused p–n junction LED with a spaced cathode contact to allow for efficient emission of infrared light under forward bias. After establishing the priority of their work based on engineering notebooks predating submissions from G.E. Labs, RCA Research Labs, IBM Research Labs, Bell Labs, and Lincoln Lab at MIT, the U.S. patent office issued the two inventors the patent for the GaAs infrared light-emitting diode (U.S. Patent US3293513), the first practical LED.[7] Immediately after filing the patent, Texas Instruments (TI) began a project to manufacture infrared diodes. In October 1962, TI announced the first commercial LED product (the SNX-100), which employed a pure GaAs crystal to emit an 890 nm light output.[7] In October 1963, TI announced the first commercial hemispherical LED, the SNX-110.[23]
In the 1960s, several laboratories focused on LEDs that would emit visible light. A particularly important device was demonstrated by Nick Holonyak on October 9, 1962, while he was working for General Electric in Syracuse, New York. The device used the semiconducting alloy gallium phosphide arsenide (GaAsP). It was the first semiconductor laser to emit visible light, albeit at low temperatures. At room temperature it still functioned as a red light-emitting diode. GaAsP was the basis for the first wave of commercial LEDs emitting visible light. It was mass produced by the Monsanto and Hewlett-Packard companies and used widely for displays in calculators and wrist watches.[24][25][26]
M. George Craford,[27] a former graduate student of Holonyak, invented the first yellow LED and improved the brightness of red and red-orange LEDs by a factor of ten in 1972.[28] In 1976, T. P. Pearsall designed the first high-brightness, high-efficiency LEDs for optical fiber telecommunications by inventing new semiconductor materials specifically adapted to optical fiber transmission wavelengths.[29]
Initial commercial development
Until 1968, visible and infrared LEDs were extremely costly, on the order of US$200 per unit, and so had little practical use.[30] The first commercial visible-wavelength LEDs used GaAsP semiconductors and were commonly used as replacements for incandescent and neon indicator lamps, and in seven-segment displays, first in expensive equipment such as laboratory and electronics test equipment, then later in such appliances as calculators, TVs, radios, telephones, as well as watches.[31]
The Hewlett-Packard company (HP) was engaged in research and development (R&D) on practical LEDs between 1962 and 1968, by a research team under Howard C. Borden, Gerald P. Pighini at HP Associates and HP Labs.[32] During this time HP collaborated with Monsanto Company on developing the first usable LED products.[33] The first usable LED products were HP's LED display and Monsanto's LED indicator lamp, both launched in 1968.[33]
Monsanto was the first organization to mass-produce visible LEDs, using Gallium arsenide phosphide (GaAsP) in 1968 to produce red LEDs suitable for indicators.[30] Monsanto had previously offered to supply HP with GaAsP, but HP decided to grow its own GaAsP.[30] In February 1969, Hewlett-Packard introduced the HP Model 5082-7000 Numeric Indicator, the first LED device to use integrated circuit (integrated LED circuit) technology.[32] It was the first intelligent LED display, and was a revolution in digital display technology, replacing the Nixie tube and becoming the basis for later LED displays.[34]
In the 1970s, commercially successful LED devices at less than five cents each were produced by Fairchild Optoelectronics. These devices employed compound semiconductor chips fabricated with the planar process (developed by Jean Hoerni,[35][36] ). The combination of planar processing for chip fabrication and innovative packaging methods enabled the team at Fairchild led by optoelectronics pioneer Thomas Brandt to achieve the needed cost reductions.[37] LED producers continue to use these methods.[38]
The early red LEDs were bright enough for use as indicators, as the light output was not enough to illuminate an area. Readouts in calculators were so small that plastic lenses were built over each digit to make them legible. Later, other colors became widely available and appeared in appliances and equipment.
Early LEDs were packaged in metal cases similar to those of transistors, with a glass window or lens to let the light out. Modern indicator LEDs are packed in transparent molded plastic cases, tubular or rectangular in shape, and often tinted to match the device color. Infrared devices may be dyed, to block visible light. More complex packages have been adapted for efficient heat dissipation in high-power LEDs. Surface-mounted LEDs further reduce the package size. LEDs intended for use with fiber optics cables may be provided with an optical connector.
Blue LED
The first blue-violet LED using magnesium-doped gallium nitride was made at Stanford University in 1972 by Herb Maruska and Wally Rhines, doctoral students in materials science and engineering.[39][40] At the time Maruska was on leave from RCA Laboratories, where he collaborated with Jacques Pankove on related work. In 1971, the year after Maruska left for Stanford, his RCA colleagues Pankove and Ed Miller demonstrated the first blue electroluminescence from zinc-doped gallium nitride, though the subsequent device Pankove and Miller built, the first actual gallium nitride light-emitting diode, emitted green light.[41][42] In 1974 the U.S. Patent Office awarded Maruska, Rhines, and Stanford professor David Stevenson a patent for their work in 1972 (U.S. Patent US3819974 A). Today, magnesium-doping of gallium nitride remains the basis for all commercial blue LEDs and laser diodes. In the early 1970s, these devices were too dim for practical use, and research into gallium nitride devices slowed.
In August 1989, Cree introduced the first commercially available blue LED based on the indirect bandgap semiconductor, silicon carbide (SiC).[43] SiC LEDs had very low efficiency, no more than about 0.03%, but did emit in the blue portion of the visible light spectrum.[44][45]
In the late 1980s, key breakthroughs in GaN epitaxial growth and p-type doping[46] ushered in the modern era of GaN-based optoelectronic devices. Building upon this foundation, Theodore Moustakas at Boston University patented a method for producing high-brightness blue LEDs using a new two-step process in 1991.[47] In 2015, a US court ruled that three Taiwanese companies had infringed Moustakas's prior patent, and ordered them to pay licensing fees of not less than US$13 million.[48]
Two years later, in 1993, high-brightness blue LEDs were demonstrated by Shuji Nakamura of Nichia Corporation using a gallium nitride (GaN) growth process.[49][50][51] These LEDs had efficiencies of 10%.[52] In parallel, Isamu Akasaki and Hiroshi Amano of Nagoya University were working on developing the important GaN deposition on sapphire substrates and the demonstration of p-type doping of GaN. This new development revolutionized LED lighting, making high-power blue light sources practical, leading to the development of technologies like Blu-ray.[53][54]
Nakamura was awarded the 2006 Millennium Technology Prize for his invention.[55] Nakamura, Hiroshi Amano, and Isamu Akasaki were awarded the Nobel Prize in Physics in 2014 for "the invention of efficient blue light-emitting diodes, which has enabled bright and energy-saving white light sources."[56]
In 1995, Alberto Barbieri at the Cardiff University Laboratory (GB) investigated the efficiency and reliability of high-brightness LEDs and demonstrated a "transparent contact" LED using indium tin oxide (ITO) on (AlGaInP/GaAs).
In 2001[57] and 2002,[58] processes for growing gallium nitride (GaN) LEDs on silicon were successfully demonstrated. In January 2012, Osram demonstrated high-power InGaN LEDs grown on silicon substrates commercially,[59] and GaN-on-silicon LEDs are in production at Plessey Semiconductors. As of 2017, some manufacturers are using SiC as the substrate for LED production, but sapphire is more common, as it has the most similar properties to that of gallium nitride, reducing the need for patterning the sapphire wafer (patterned wafers are known as epi wafers). Samsung, the University of Cambridge, and Toshiba are performing research into GaN on Si LEDs. Toshiba has stopped research, possibly due to low yields.[60][61][62][63][64][65][66] Some opt for epitaxy, which is difficult on silicon, while others, like the University of Cambridge, choose a multi-layer structure, in order to reduce (crystal) lattice mismatch and different thermal expansion ratios, to avoid cracking of the LED chip at high temperatures (e.g. during manufacturing), reduce heat generation and increase luminous efficiency. Sapphire substrate patterning can be carried out with nanoimprint lithography.[67][68][69][70][71][72][73]
GaN-on-Si is difficult but desirable since it takes advantage of existing semiconductor manufacturing infrastructure. It allows for the wafer-level packaging of LED dies resulting in extremely small LED packages.[74]
GaN is often deposited using Metalorganic vapor-phase epitaxy (MOCVD),[75] and it also utilizes Lift-off.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
White LEDs and the illumination breakthrough
Even though white light can be created using individual red, green and blue LEDs, this results in poor color rendering, since only three narrow bands of wavelengths of light are being emitted. The attainment of high efficiency blue LEDs was quickly followed by the development of the first white LED. In this device a Y 3Al 5O 12:Ce (known as "YAG" or Ce:YAG phosphor) cerium-doped phosphor coating produces yellow light through fluorescence. The combination of that yellow with remaining blue light appears white to the eye. Using different phosphors produces green and red light through fluorescence. The resulting mixture of red, green and blue is perceived as white light, with improved color rendering compared to wavelengths from the blue LED/YAG phosphor combination.[76]
The first white LEDs were expensive and inefficient. The light output then increased exponentially. The latest research and development has been propagated by Japanese manufacturers such as Panasonic, and Nichia, and by Korean and Chinese manufacturers such as Samsung, Solstice, Kingsun, Hoyol and others. This trend in increased output has been called Haitz's law after Roland Haitz.[77][78]
Light output and efficiency of blue and near-ultraviolet LEDs rose and the cost of reliable devices fell. This led to relatively high-power white-light LEDs for illumination, which are replacing incandescent and fluorescent lighting.[79][80]
Experimental white LEDs were demonstrated in 2014 to produce 303 lumens per watt of electricity (lm/W); some can last up to 100,000 hours.[81][82] Commercially available LEDs have an efficiency of up to 223 lm/W as of 2018.[83][84][85] A previous record of 135 lm/W was achieved by Nichia in 2010.[86] Compared to incandescent bulbs, this is a huge increase in electrical efficiency, and even though LEDs are more expensive to purchase, overall lifetime cost is significantly cheaper than that of incandescent bulbs.[87]
The LED chip is encapsulated inside a small, plastic, white mold[88][89] although sometimes an LED package can incorporate a reflector.[90] It can be encapsulated using resin (polyurethane-based), silicone,[91][92][93] or epoxy[94] containing (powdered) Cerium-doped YAG phosphor particles.[95] The viscosity of phosphor-silicon mixtures must be carefully controlled.[96] After application of a phosphor-silicon mixture on the LED using techniques such as jet dispensing,[97] and allowing the solvents to evaporate, the LEDs are often tested, and placed on tapes for SMT placement equipment for use in LED light bulb production. Some "remote phosphor" LED light bulbs use a single plastic cover with YAG phosphor for one[98] or several blue LEDs, instead of using phosphor coatings on single-chip white LEDs.[99] Ce:YAG phosphors and epoxy in LEDs[100] can degrade with use, and is more apparent with higher concentrations of Ce:YAG in phosphor-silicone mixtures, because the Ce:YAG decomposes with use.[101][102][103] The output of LEDs can shift to yellow over time due to degradation of the silicone.[104] There are several variants of Ce:YAG, and manufacturers in many cases do not reveal the exact compoosition of their Ce:YAG offerings.[105] Several other phosphors are available for phosphor-converted LEDs to produce several colors such as red, which uses nitrosilicate phosphors,[106][107] and many other kinds of phosphor materials exist for LEDs such as phosphors based on oxides, oxynitrides, oxyhalides, halides, nitrides, sulfides, quantum dots, and inorganic-organic hybrid semiconductors. A single LED can have several phosphors at the same time.[108][109] Some LEDs use phosphors made of glass-ceramic or composite phosphor/glass materials.[110][111] Alternatively, the LED chips themselves can be coated with a thin coating of phosphor-containing material, called a conformal coating.[112][113]
The temperature of the phosphor during operation and how it is applied limits the size of an LED die. Wafer-level packaged white LEDs allow for extremely small LEDs.[74]
فيزياء انتاج وانبعاث الضوء
In a light-emitting diode, the recombination of electrons and electron holes in a semiconductor produces light (be it infrared, visible or UV), a process called "electroluminescence". The wavelength of the light depends on the energy band gap of the semiconductors used. Since these materials have a high index of refraction, design features of the devices such as special optical coatings and die shape are required to efficiently emit light.[114]
Unlike a laser, the light emitted from an LED is neither spectrally coherent nor even highly monochromatic. Its spectrum is sufficiently narrow that it appears to the human eye as a pure (saturated) color.[115][116] Also unlike most lasers, its radiation is not spatially coherent, so it cannot approach the very high intensity characteristic of lasers.
Single-color LEDs
 | |
 "The Original Blue LED", Science History Institute |
By selection of different semiconductor materials, single-color LEDs can be made that emit light in a narrow band of wavelengths from near-infrared through the visible spectrum and into the ultraviolet range. As the wavelengths become shorter, because of the larger band gap of these semiconductors, the operating voltage of the LED increases.
Blue LEDs have an active region consisting of one or more InGaN quantum wells sandwiched between thicker layers of GaN, called cladding layers. By varying the relative In/Ga fraction in the InGaN quantum wells, the light emission can in theory be varied from violet to amber.
Aluminium gallium nitride (AlGaN) of varying Al/Ga fraction can be used to manufacture the cladding and quantum well layers for ultraviolet LEDs, but these devices have not yet reached the level of efficiency and technological maturity of InGaN/GaN blue/green devices. If unalloyed GaN is used in this case to form the active quantum well layers, the device emits near-ultraviolet light with a peak wavelength centred around 365 nm. Green LEDs manufactured from the InGaN/GaN system are far more efficient and brighter than green LEDs produced with non-nitride material systems, but practical devices still exhibit efficiency too low for high-brightness applications.[بحاجة لمصدر]
With AlGaN and AlGaInN, even shorter wavelengths are achievable. Near-UV emitters at wavelengths around 360–395 nm are already cheap and often encountered, for example, as black light lamp replacements for inspection of anti-counterfeiting UV watermarks in documents and bank notes, and for UV curing. Substantially more expensive, shorter-wavelength diodes are commercially available for wavelengths down to 240 nm.[117] As the photosensitivity of microorganisms approximately matches the absorption spectrum of DNA, with a peak at about 260 nm, UV LED emitting at 250–270 nm are expected in prospective disinfection and sterilization devices. Recent research has shown that commercially available UVA LEDs (365 nm) are already effective disinfection and sterilization devices.[118] UV-C wavelengths were obtained in laboratories using aluminium nitride (210 nm),[119] boron nitride (215 nm)[120][121] and diamond (235 nm).[122]
White LEDs
There are two primary ways of producing white light-emitting diodes. One is to use individual LEDs that emit three primary colors—red, green and blue—and then mix all the colors to form white light. The other is to use a phosphor material to convert monochromatic light from a blue or UV LED to broad-spectrum white light, similar to a fluorescent lamp. The yellow phosphor is cerium-doped YAG crystals suspended in the package or coated on the LED. This YAG phosphor causes white LEDs to appear yellow when off, and the space between the crystals allow some blue light to pass through in LEDs with partial phosphor conversion. Alternatively, white LEDs may use other phosphors like manganese(IV)-doped potassium fluorosilicate (PFS) or other engineered phosphors. PFS assists in red light generation, and is used in conjunction with conventional Ce:YAG phosphor. In LEDs with PFS phosphor, some blue light passes through the phosphors, the Ce:YAG phosphor converts blue light to green and red (yellow) light, and the PFS phosphor converts blue light to red light. The color, emission spectrum or color temperature of white phosphor converted and other phosphor converted LEDs can be controlled by changing the concentration of several phosphors that form a phosphor blend used in an LED package.[123][124][125][126]
The 'whiteness' of the light produced is engineered to suit the human eye. Because of metamerism, it is possible to have quite different spectra that appear white. The appearance of objects illuminated by that light may vary as the spectrum varies. This is the issue of color rendition, quite separate from color temperature. An orange or cyan object could appear with the wrong color and much darker as the LED or phosphor does not emit the wavelength it reflects. The best color rendition LEDs use a mix of phosphors, resulting in less efficiency and better color rendering.[بحاجة لمصدر]
The first white light-emitting diodes (LEDs) were offered for sale in the autumn of 1996.[127] Nichia made some of the first white LEDs which were based on blue LEDs with Ce:YAG phosphor.[128] Ce:YAG is often grown using the Czochralski method.[129]
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RGB systems
Mixing red, green, and blue sources to produce white light needs electronic circuits to control the blending of the colors. Since LEDs have slightly different emission patterns, the color balance may change depending on the angle of view, even if the RGB sources are in a single package, so RGB diodes are seldom used to produce white lighting. Nonetheless, this method has many applications because of the flexibility of mixing different colors,[130] and in principle, this mechanism also has higher quantum efficiency in producing white light.[131]
There are several types of multicolor white LEDs: di-, tri-, and tetrachromatic white LEDs. Several key factors that play among these different methods include color stability, color rendering capability, and luminous efficacy. Often, higher efficiency means lower color rendering, presenting a trade-off between the luminous efficacy and color rendering. For example, the dichromatic white LEDs have the best luminous efficacy (120 lm/W), but the lowest color rendering capability. Although tetrachromatic white LEDs have excellent color rendering capability, they often have poor luminous efficacy. Trichromatic white LEDs are in between, having both good luminous efficacy (>70 lm/W) and fair color rendering capability.[132]
One of the challenges is the development of more efficient green LEDs. The theoretical maximum for green LEDs is 683 lumens per watt but as of 2010 few green LEDs exceed even 100 lumens per watt. The blue and red LEDs approach their theoretical limits.[بحاجة لمصدر]
Multicolor LEDs offer a means to form light of different colors. Most perceivable colors can be formed by mixing different amounts of three primary colors. This allows precise dynamic color control. Their emission power decays exponentially with rising temperature,[133] resulting in a substantial change in color stability. Such problems inhibit industrial use. Multicolor LEDs without phosphors cannot provide good color rendering because each LED is a narrowband source. LEDs without phosphor, while a poorer solution for general lighting, are the best solution for displays, either backlight of LCD, or direct LED based pixels.
Dimming a multicolor LED source to match the characteristics of incandescent lamps is difficult because manufacturing variations, age, and temperature change the actual color value output. To emulate the appearance of dimming incandescent lamps may require a feedback system with color sensor to actively monitor and control the color.[134]
Phosphor-based LEDs
This method involves coating LEDs of one color (mostly blue LEDs made of InGaN) with phosphors of different colors to form white light; the resultant LEDs are called phosphor-based or phosphor-converted white LEDs (pcLEDs).[135] A fraction of the blue light undergoes the Stokes shift, which transforms it from shorter wavelengths to longer. Depending on the original LED's color, various color phosphors are used. Using several phosphor layers of distinct colors broadens the emitted spectrum, effectively raising the color rendering index (CRI).[136]
Phosphor-based LEDs have efficiency losses due to heat loss from the Stokes shift and also other phosphor-related issues. Their luminous efficacies compared to normal LEDs depend on the spectral distribution of the resultant light output and the original wavelength of the LED itself. For example, the luminous efficacy of a typical YAG yellow phosphor based white LED ranges from 3 to 5 times the luminous efficacy of the original blue LED because of the human eye's greater sensitivity to yellow than to blue (as modeled in the luminosity function). Due to the simplicity of manufacturing, the phosphor method is still the most popular method for making high-intensity white LEDs. The design and production of a light source or light fixture using a monochrome emitter with phosphor conversion is simpler and cheaper than a complex RGB system, and the majority of high-intensity white LEDs presently on the market are manufactured using phosphor light conversion.[بحاجة لمصدر]
Among the challenges being faced to improve the efficiency of LED-based white light sources is the development of more efficient phosphors. As of 2010, the most efficient yellow phosphor is still the YAG phosphor, with less than 10% Stokes shift loss. Losses attributable to internal optical losses due to re-absorption in the LED chip and in the LED packaging itself account typically for another 10% to 30% of efficiency loss. Currently, in the area of phosphor LED development, much effort is being spent on optimizing these devices to higher light output and higher operation temperatures. For instance, the efficiency can be raised by adapting better package design or by using a more suitable type of phosphor. Conformal coating process is frequently used to address the issue of varying phosphor thickness.[بحاجة لمصدر]
Some phosphor-based white LEDs encapsulate InGaN blue LEDs inside phosphor-coated epoxy. Alternatively, the LED might be paired with a remote phosphor, a preformed polycarbonate piece coated with the phosphor material. Remote phosphors provide more diffuse light, which is desirable for many applications. Remote phosphor designs are also more tolerant of variations in the LED emissions spectrum. A common yellow phosphor material is cerium-doped yttrium aluminium garnet (Ce3+:YAG).[بحاجة لمصدر]
White LEDs can also be made by coating near-ultraviolet (NUV) LEDs with a mixture of high-efficiency europium-based phosphors that emit red and blue, plus copper and aluminium-doped zinc sulfide (ZnS:Cu, Al) that emits green. This is a method analogous to the way fluorescent lamps work. This method is less efficient than blue LEDs with YAG:Ce phosphor, as the Stokes shift is larger, so more energy is converted to heat, but yields light with better spectral characteristics, which render color better. Due to the higher radiative output of the ultraviolet LEDs than of the blue ones, both methods offer comparable brightness. A concern is that UV light may leak from a malfunctioning light source and cause harm to human eyes or skin.[بحاجة لمصدر]
A new style of wafers composed of gallium-nitride-on-silicon (GaN-on-Si) is being used to produce white LEDs using 200-mm silicon wafers. This avoids the typical costly sapphire substrate in relatively small 100- or 150-mm wafer sizes.[137] The sapphire apparatus must be coupled with a mirror-like collector to reflect light that would otherwise be wasted. It was predicted that since 2020, 40% of all GaN LEDs are made with GaN-on-Si. Manufacturing large sapphire material is difficult, while large silicon material is cheaper and more abundant. LED companies shifting from using sapphire to silicon should be a minimal investment.[138]
Mixed white LEDs
There are RGBW LEDs that combine RGB units with a phosphor white LED on the market. Doing so retains the extremely tunable color of RGB LED, but allows color rendering and efficiency to be optimized when a color close to white is selected.[139]
Some phosphor white LED units are "tunable white", blending two extremes of color temperatures (commonly 2700K and 6500K) to produce intermediate values. This feature allows users to change the lighting to suit the current use of a multifunction room.[140] As illustrated by a straight line on the chromaticity diagram, simple two-white blends will have a pink bias, becoming most severe in the middle. A small amount of green light, provided by another LED, could correct the problem.[141] Some products are RGBWW, i.e. RGBW with tunable white.[142]
A final class of white LED with mixed light is dim-to-warm. These are ordinary 2700K white LED bulbs with a small red LED that turns on when the bulb is dimmed. Doing so makes the color warmer, emulating an incandescent light bulb.[142]
Other white LEDs
Another method used to produce experimental white light LEDs used no phosphors at all and was based on homoepitaxially grown zinc selenide (ZnSe) on a ZnSe substrate that simultaneously emitted blue light from its active region and yellow light from the substrate.[143]
Organic light-emitting diodes (OLEDs)
In an organic light-emitting diode (OLED), the electroluminescent material composing the emissive layer of the diode is an organic compound. The organic material is electrically conductive due to the delocalization of pi electrons caused by conjugation over all or part of the molecule, and the material therefore functions as an organic semiconductor.[144] The organic materials can be small organic molecules in a crystalline phase, or polymers.[145]
The potential advantages of OLEDs include thin, low-cost displays with a low driving voltage, wide viewing angle, and high contrast and color gamut.[146] Polymer LEDs have the added benefit of printable and flexible displays.[147][148][149] OLEDs have been used to make visual displays for portable electronic devices such as cellphones, digital cameras, lighting and televisions.[145][146]
Perovskite Light-emitting diodes (PeLEDs)
Perovskite light-emitting diodes (PeLEDs) have emerged as promising candidates for next-generation display and lighting technologies. In recent years, researchers have shown a growing interest in perovskite light-emitting diodes (PeLEDs) owing to their capacity for emitting light with narrow bandwidth, adjustable spectrum, ability to deliver high color purity, and cost-effective solution fabrication.[150][151]
Green PeLEDs
When it comes to efficiency, PeLEDs have not surpassed commercial organic light-emitting diodes (OLEDs) because specific critical parameters, such as charge carrier transport and optical output coupling efficiency, have not been thoroughly optimized.[151]
In response to this challenge, the development of ultra-efficient green PeLEDs with a external quantum efficiency (EQE) exceeding the remarkable 30% milestone was reported by Bai and his colleagues on May 29, 2023.[151] This achievement was made by strategic adjustments in charge carrier transport and the distribution of near-field light. These optimizations effectively reduced electron leakage and resulted in an exceptional light output coupling efficiency of 41.82%. A Ni0.9Mg0.1Ox film with high refractive index and increased hole carrier mobility was used as a hole injection layer to balance charge carrier injection, and a polyethylene glycol layer was inserted between the hole transport layer and the perovskite emission layer to prevent electron leakage and minimize photon loss.[151]
The modified structure of green PeLED enabled it to achieve a world-record external quantum efficiency of 30.84% (with a mean of 29.05 ± 0.77%) at a brightness level of 6514 cd/m2. This pioneering work introduces a compelling approach to building ultra-efficient PeLEDs by effectively balancing electron-hole recombination and enhancing light outcoupling.[151]
However, expanding the effective area of perovskite LEDs can lead to a significant drop in their performance. To address this issue, Sun et.al[152] introduced L-methionine (NVAL) to construct an intermediate phase with low formation enthalpy and COO- coordination. This new intermediate phase altered the crystallization pathway, effectively inhibiting phase segregation. Consequently, high-quality large-area quasi-2D perovskite films were achieved. They further fine-tuned the film's composite dynamics, leading to high-efficiency quasi-2D perovskite green LEDs with an effective area of 9.0 cm2. An external quantum efficiency (EQE) of 16.4% was attained at <n> = 3, making it the most efficient large-area perovskite LED. Moreover, a luminance of 9.1×104 cd/m2 was achieved in the <n> = 10 films.[152]
Blue PeLEDs
On March 16, 2023, Zhou et al.[153] published a study demonstrating their successful control of ion behavior to create highly efficient sky-blue perovskite light-emitting diodes. They achieved this by utilizing a bifunctional passivator, which consisted of Lewis base benzoic acid anions and alkali metal cations. This passivator had a dual role: it effectively passivated the deficient lead atom while inhibited the migration of halide ions. The outcome of this innovative approach was the realization of an efficient perovskite LED that emitted light at a stable wavelength of 483 nm. The LED exhibited a commendable external quantum efficiency (EQE) of 16.58%, with a peak EQE reaching 18.65%. Through optical coupling enhancement, the EQE was further boosted to 28.82%.[153]
Red PeLEDs
One of the most crucial aspects of lighting and display technology is the efficient generation of red emission. Quasi-2D perovskites have demonstrated potential for high emission efficiency due to robust carrier confinement. However, the external quantum efficiencies (EQE) of most red quasi-2D PeLEDs are not optimal due to different n-value phases within complex quasi-2D perovskite films.
To address this challenge, Jiang et.al[150] published their findings in Advanced Materials on July 20, 2022. Their research focused on strategically incorporating large cations to enhance the efficiency of red light perovskite LEDs. By introducing phenethylammonium iodide (PEAI)/3-fluorophenylethylammonium iodide (m-F-PEA) and 1-naphthylmethylammonium iodide (NMAI), they achieved precise control over the phase distribution of quasi-2D perovskite materials. This approach effectively reduced the prevalence of smaller n-index phases and concurrently addressed lead and halide defects in the perovskite films. The outcome of this research was the development of perovskite LEDs capable of achieving an EQE of 25.8% at 680 nm, accompanied by a peak brightness of 1300 cd/m2.[150]
White PeLEDs
High-performance white perovskite LED with high light extraction efficiency can be constructed through near-field optical coupling.[154] The near-field optical coupling between blue perovskite diode and red perovskite nanocrystal was achieved by a reasonably designed multi-layer translucent electrode (LiF/Al/Ag/LiF). The red perovskite nano-crystalline layer allows the waveguide mode and surface plasmon polarization mode captured in the blue perovskite diode to be extracted and converted into red light emission, increasing the light extraction efficiency by 50%. At the same time, the complementary emission spectra of blue photons and down-converted red photons contribute to the formation of white LEDs. Finally, the off-device quantum efficiency exceeds 12%, and the brightness exceeds 2000cd/m2, which are both the highest in white PeLEDs.[154]
Lifetime
Preparing high-quality all-inorganic perovskite films through solution-based methods remains a formidable challenge, primarily attributed to the rapid and uncontrollable crystallization of such materials. The key innovation involved controlling the crystal orientation of the all-inorganic perovskite along the (110) plane through a low-temperature annealing process (35-40°C). This precise control led to the orderly stacking of crystals, which significantly increased surface coverage and reduced defects within the material. After thorough optimization, the well-oriented CsPbBr3 perovskite LED achieved an external quantum efficiency (EQE) of up to 16.45%, a remarkable brightness of 79,932 cd/m2, and a lifespan of 136 hours when initially operated at a brightness level of 100 cd/m2.[155]
On September 20, 2021, the team led by Sargent et.al[156] from the University of Toronto published their research findings in the Journal of the American Chemical Society (JACS) on bright and stable light-emitting diodes (LEDs) based on perovskite quantum dots within a perovskite matrix. The research reported that perovskite quantum dots remain stable in a precursor solution thin film of perovskite and drive the uniform crystallization of the perovskite matrix using strain quantum dots as nucleation centers. The type I band alignment ensures that quantum dots act as charge acceptors and radiative emitters.[156]
The new material exhibits suppressed biexciton Auger recombination and bright luminescence even at high excitation (600 W/cm2). The red LEDs based on the new material demonstrate an external quantum efficiency of 18% and maintain high performance at a brightness exceeding 4700 cd/m2. The new material extends the LED's operating half-life to 2400 hours at an initial brightness of 100 cd/m2.[156]
Types
LEDs are made in different packages for different applications. A single or a few LED junctions may be packed in one miniature device for use as an indicator or pilot lamp. An LED array may include controlling circuits within the same package, which may range from a simple resistor, blinking or color changing control, or an addressable controller for RGB devices. Higher-powered white-emitting devices will be mounted on heat sinks and will be used for illumination. Alphanumeric displays in dot matrix or bar formats are widely available. Special packages permit connection of LEDs to optical fibers for high-speed data communication links.

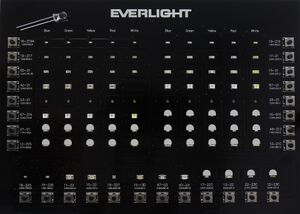

Miniature
 | هذا القسم يحتاج المزيد من الأسانيد للتحقق. (December 2020) (Learn how and when to remove this template message) |

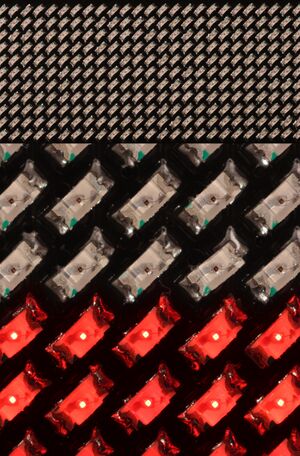

These are mostly single-die LEDs used as indicators, and they come in various sizes from 2 mm to 8 mm, through-hole and surface mount packages.[157] Typical current ratings range from around 1 mA to above 20 mA. Multiple LED dies attached to a flexible backing tape form an LED strip light.[بحاجة لمصدر]
Common package shapes include round, with a domed or flat top, rectangular with a flat top (as used in bar-graph displays), and triangular or square with a flat top. The encapsulation may also be clear or tinted to improve contrast and viewing angle. Infrared devices may have a black tint to block visible light while passing infrared radiation.[بحاجة لمصدر]
Ultra-high-output LEDs are designed for viewing in direct sunlight.[بحاجة لمصدر]
5 V and 12 V LEDs are ordinary miniature LEDs that have a series resistor for direct connection to a 5 V or 12 V supply.[بحاجة لمصدر]
High-power
.jpg&filetimestamp=20230823170107&)
High-power LEDs (HP-LEDs) or high-output LEDs (HO-LEDs) can be driven at currents from hundreds of mA to more than an ampere, compared with the tens of mA for other LEDs. Some can emit over a thousand lumens.[158][159] LED power densities up to 300 W/cm2 have been achieved. Since overheating is destructive, the HP-LEDs must be mounted on a heat sink to allow for heat dissipation. If the heat from an HP-LED is not removed, the device fails in seconds. One HP-LED can often replace an incandescent bulb in a flashlight, or be set in an array to form a powerful LED lamp.
Some well-known HP-LEDs in this category are the Nichia 19 series, Lumileds Rebel Led, Osram Opto Semiconductors Golden Dragon, and Cree X-lamp. As of September 2009, some HP-LEDs manufactured by Cree now exceed 105 lm/W.[160]
Examples for Haitz's law—which predicts an exponential rise in light output and efficacy of LEDs over time—are the CREE XP-G series LED, which achieved 105 lm/W in 2009[160] and the Nichia 19 series with a typical efficacy of 140 lm/W, released in 2010.[161]
AC-driven
LEDs developed by Seoul Semiconductor can operate on AC power without a DC converter. For each half-cycle, part of the LED emits light and part is dark, and this is reversed during the next half-cycle. The efficiency of this type of HP-LED is typically 40 lm/W.[162] A large number of LED elements in series may be able to operate directly from line voltage. In 2009, Seoul Semiconductor released a high DC voltage LED, named 'Acrich MJT', capable of being driven from AC power with a simple controlling circuit. The low-power dissipation of these LEDs affords them more flexibility than the original AC LED design.[163]
Strip
Application-specific
| هذا section يحتاج المزيد من الأسانيد للتحقق. (October 2020) (Learn how and when to remove this template message) |
- Flashing
- Flashing LEDs are used as attention seeking indicators without requiring external electronics. Flashing LEDs resemble standard LEDs but they contain an integrated voltage regulator and a multivibrator circuit that causes the LED to flash with a typical period of one second. In diffused lens LEDs, this circuit is visible as a small black dot. Most flashing LEDs emit light of one color, but more sophisticated devices can flash between multiple colors and even fade through a color sequence using RGB color mixing. Flashing SMD LEDs in the 0805 and other size formats have been available since early 2019.
- Flickering
- Integrated electronics Simple electronic circuits integrated into the LED package have been around since at least 2011 which produce a random LED intensity pattern reminiscent of a flickering candle.[164] Reverse engineering in 2024 has suggested that some flickering LEDs with automatic sleep and wake modes might be using an integrated 8-bit microcontroller for such functionally.[165]
- Bi-color
- Bi-color LEDs contain two different LED emitters in one case. There are two types of these. One type consists of two dies connected to the same two leads antiparallel to each other. Current flow in one direction emits one color, and current in the opposite direction emits the other color. The other type consists of two dies with separate leads for both dies and another lead for common anode or cathode so that they can be controlled independently. The most common bi-color combination is red/traditional green. Others include amber/traditional green, red/pure green, red/blue, and blue/pure green.

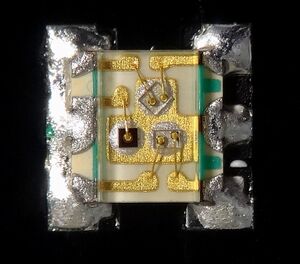

- RGB tri-color
- Tri-color LEDs contain three different LED emitters in one case. Each emitter is connected to a separate lead so they can be controlled independently. A four-lead arrangement is typical with one common lead (anode or cathode) and an additional lead for each color. Others have only two leads (positive and negative) and have a built-in electronic controller. RGB LEDs consist of one red, one green, and one blue LED.[166] By independently adjusting each of the three, RGB LEDs are capable of producing a wide color gamut. Unlike dedicated-color LEDs, these do not produce pure wavelengths. Modules may not be optimized for smooth color mixing.
- Decorative-multicolor
- Decorative-multicolor LEDs incorporate several emitters of different colors supplied by only two lead-out wires. Colors are switched internally by varying the supply voltage.
- Alphanumeric
- Alphanumeric LEDs are available in seven-segment, starburst, and dot-matrix format. Seven-segment displays handle all numbers and a limited set of letters. Starburst displays can display all letters. Dot-matrix displays typically use 5×7 pixels per character. Seven-segment LED displays were in widespread use in the 1970s and 1980s, but rising use of liquid crystal displays, with their lower power needs and greater display flexibility, has reduced the popularity of numeric and alphanumeric LED displays.
- Digital RGB
- Digital RGB addressable LEDs contain their own "smart" control electronics. In addition to power and ground, these provide connections for data-in, data-out, clock and sometimes a strobe signal. These are connected in a daisy chain, which allows individual LEDs in a long LED strip light to be easily controlled by a microcontroller. Data sent to the first LED of the chain can control the brightness and color of each LED independently of the others. They are used where a combination of maximum control and minimum visible electronics are needed such as strings for Christmas and LED matrices. Some even have refresh rates in the kHz range, allowing for basic video applications. These devices are known by their part number (WS2812 being common) or a brand name such as NeoPixel.
- Filament
- An LED filament consists of multiple LED chips connected in series on a common longitudinal substrate that forms a thin rod reminiscent of a traditional incandescent filament.[167] These are being used as a low-cost decorative alternative for traditional light bulbs that are being phased out in many countries. The filaments use a rather high voltage, allowing them to work efficiently with mains voltages. Often a simple rectifier and capacitive current limiting are employed to create a low-cost replacement for a traditional light bulb without the complexity of the low voltage, high current converter that single die LEDs need.[168] Usually, they are packaged in bulb similar to the lamps they were designed to replace, and filled with inert gas at slightly lower than ambient pressure to remove heat efficiently and prevent corrosion.
- Chip-on-board arrays
- Surface-mounted LEDs are frequently produced in chip on board (COB) arrays, allowing better heat dissipation than with a single LED of comparable luminous output.[169] The LEDs can be arranged around a cylinder, and are called "corn cob lights" because of the rows of yellow LEDs.[170]
Considerations for use
Power sources
The current in an LED or other diodes rises exponentially with the applied voltage (see Shockley diode equation), so a small change in voltage can cause a large change in current. Current through the LED must be regulated by an external circuit such as a constant current source to prevent damage. Since most common power supplies are (nearly) constant-voltage sources, LED fixtures must include a power converter, or at least a current-limiting resistor. In some applications, the internal resistance of small batteries is sufficient to keep current within the LED rating.[بحاجة لمصدر]
Electrical polarity
Unlike a traditional incandescent lamp, an LED will light only when voltage is applied in the forward direction of the diode. No current flows and no light is emitted if voltage is applied in the reverse direction. If the reverse voltage exceeds the breakdown voltage, which is typically about five volts, a large current flows and the LED will be damaged. If the reverse current is sufficiently limited to avoid damage, the reverse-conducting LED is a useful noise diode.[بحاجة لمصدر]
By definition, the energy band gap of any diode is higher when reverse-biased than when forward-biased. Because the band gap energy determines the wavelength of the light emitted, the color cannot be the same when reverse-biased. The reverse breakdown voltage is sufficiently high that the emitted wavelength cannot be similar enough to still be visible. Though dual-LED packages exist that contain a different color LED in each direction, it is not expected that any single LED element can emit visible light when reverse-biased.[بحاجة لمصدر]
It is not known if any zener diode could exist that emits light only in reverse-bias mode. Uniquely, this type of LED would conduct when connected backwards.
Safety and health
Certain blue LEDs and cool-white LEDs can exceed safe limits of the so-called blue-light hazard as defined in eye safety specifications such as "ANSI/IESNA RP-27.1–05: Recommended Practice for Photobiological Safety for Lamp and Lamp Systems".[171] One study showed no evidence of a risk in normal use at domestic illuminance,[172] and that caution is only needed for particular occupational situations or for specific populations.[173] In 2006, the International Electrotechnical Commission published IEC 62471 Photobiological safety of lamps and lamp systems, replacing the application of early laser-oriented standards for classification of LED sources.[174]
While LEDs have the advantage over fluorescent lamps, in that they do not contain mercury, they may contain other hazardous metals such as lead and arsenic.[175]
In 2016 the American Medical Association (AMA) issued a statement concerning the possible adverse influence of blueish street lighting on the sleep-wake cycle of city-dwellers. Industry critics claim exposure levels are not high enough to have a noticeable effect.[176]
Advantages
- Efficiency: LEDs emit more lumens per watt than incandescent light bulbs.[177] The efficiency of LED lighting fixtures is not affected by shape and size, unlike fluorescent light bulbs or tubes.
- Color: LEDs can emit light of an intended color without using any color filters as traditional lighting methods need. This is more efficient and can lower initial costs.
- Size: LEDs can be very small (smaller than 2 mm2[178]) and are easily attached to printed circuit boards.
- Switch on time: LEDs light up extremely quickly. A typical red indicator LED achieves full brightness in under a microsecond.[179] LEDs used in communications devices can have even faster response times.
- Cycling: LEDs are ideal for uses subject to frequent on-off cycling, unlike incandescent and fluorescent lamps that fail faster when cycled often, or high-intensity discharge lamps (HID lamps) that require a long time to warm up to full output and to cool down before they can be lighted again if they are being restarted.
- Dimming: LEDs can very easily be dimmed either by pulse-width modulation or lowering the forward current.[180] This pulse-width modulation is why LED lights, particularly headlights on cars, when viewed on camera or by some people, seem to flash or flicker. This is a type of stroboscopic effect.
- Cool light: In contrast to most light sources, LEDs radiate very little heat in the form of IR that can cause damage to sensitive objects or fabrics. Wasted energy is dispersed as heat through the base of the LED.
- Slow failure: LEDs mainly fail by dimming over time, rather than the abrupt failure of incandescent bulbs.[181]
- Lifetime: LEDs can have a relatively long useful life. One report estimates 35,000 to 50,000 hours of useful life, though time to complete failure may be shorter or longer.[182] Fluorescent tubes typically are rated at about 10,000 to 25,000 hours, depending partly on the conditions of use, and incandescent light bulbs at 1,000 to 2,000 hours. Several DOE demonstrations have shown that reduced maintenance costs from this extended lifetime, rather than energy savings, is the primary factor in determining the payback period for an LED product.[183]
- Shock resistance: LEDs, being solid-state components, are difficult to damage with external shock, unlike fluorescent and incandescent bulbs, which are fragile.[184]
- Focus: The solid package of the LED can be designed to focus its light. Incandescent and fluorescent sources often require an external reflector to collect light and direct it in a usable manner. For larger LED packages total internal reflection (TIR) lenses are often used to the same effect. When large quantities of light are needed, many light sources such as LED chips are usually deployed, which are difficult to focus or collimate on the same target.
Disadvantages
- Temperature dependence: LED performance largely depends on the ambient temperature of the operating environment – or thermal management properties. Overdriving an LED in high ambient temperatures may result in overheating the LED package, eventually leading to device failure. An adequate heat sink is needed to maintain long life. This is especially important in automotive, medical, and military uses where devices must operate over a wide range of temperatures, and require low failure rates.
- Voltage sensitivity: LEDs must be supplied with a voltage above their threshold voltage and a current below their rating. Current and lifetime change greatly with a small change in applied voltage. They thus require a current-regulated supply (usually just a series resistor for indicator LEDs).[185]
- Color rendition: Most cool-white LEDs have spectra that differ significantly from a black body radiator like the sun or an incandescent light. The spike at 460 nm and dip at 500 nm can make the color of objects appear differently under cool-white LED illumination than sunlight or incandescent sources, due to metamerism,[186] red surfaces being rendered particularly poorly by typical phosphor-based cool-white LEDs. The same is true with green surfaces. The quality of color rendition of an LED is measured by the Color Rendering Index (CRI).
- Area light source: Single LEDs do not approximate a point source of light giving a spherical light distribution, but rather a lambertian distribution. So, LEDs are difficult to apply to uses needing a spherical light field. Different fields of light can be manipulated by the application of different optics or "lenses". LEDs cannot provide divergence below a few degrees.[187]
- Light pollution: Because white LEDs emit more short wavelength light than sources such as high-pressure sodium vapor lamps, the increased blue and green sensitivity of scotopic vision means that white LEDs used in outdoor lighting cause substantially more sky glow.[163]
- Efficiency droop: The efficiency of LEDs decreases as the electric current increases. Heating also increases with higher currents, which compromises LED lifetime. These effects put practical limits on the current through an LED in high power applications.[188]
- Impact on wildlife: LEDs are much more attractive to insects than sodium-vapor lights, so much so that there has been speculative concern about the possibility of disruption to food webs.[189][190] LED lighting near beaches, particularly intense blue and white colors, can disorient turtle hatchlings and make them wander inland instead.[191] The use of "turtle-safe lighting" LEDs that emit only at narrow portions of the visible spectrum is encouraged by conservancy groups in order to reduce harm.[192]
- Use in winter conditions: Since they do not give off much heat in comparison to incandescent lights, LED lights used for traffic control can have snow obscuring them, leading to accidents.[193][194]
- Thermal runaway: Parallel strings of LEDs will not share current evenly due to the manufacturing tolerances in their forward voltage. Running two or more strings from a single current source may result in LED failure as the devices warm up. If forward voltage binning is not possible, a circuit is required to ensure even distribution of current between parallel strands.[195]
Manufacturing
LED manufacturing involves multiple steps, including epitaxy, chip processing, chip separation, and packaging.[196]
In a typical LED manufacturing process, encapsulation is performed after probing, dicing, die transfer from wafer to package, and wire bonding or flip chip mounting,[197] perhaps using Indium tin oxide, a transparent electrical conductor. In this case, the bond wire(s) are attached to the ITO film that has been deposited in the LEDs.
Flip chip circuit on board (COB) is a technique that can be used to manufacture LEDs.[198]
Applications
LED uses fall into five major categories:
- Visual signals where light goes more or less directly from the source to the human eye, to convey a message or meaning
- Illumination where light is reflected from objects to give visual response of these objects
- Measuring and interacting with processes involving no human vision[199]
- Narrow band light sensors where LEDs operate in a reverse-bias mode and respond to incident light, instead of emitting light[200][201][202][203]
- Indoor cultivation, including cannabis.[204]
Indicators and signs
|
The low energy consumption, low maintenance and small size of LEDs has led to uses as status indicators and displays on a variety of equipment and installations. Large-area LED displays are used as stadium displays, dynamic decorative displays, and dynamic message signs on freeways. Thin, lightweight message displays are used at airports and railway stations, and as destination displays for trains, buses, trams, and ferries.
One-color light is well suited for traffic lights and signals, exit signs, emergency vehicle lighting, ships' navigation lights, and LED-based Christmas lights
Because of their long life, fast switching times, and visibility in broad daylight due to their high output and focus, LEDs have been used in automotive brake lights and turn signals. The use in brakes improves safety, due to a great reduction in the time needed to light fully, or faster rise time, about 0.1 second faster[بحاجة لمصدر] than an incandescent bulb. This gives drivers behind more time to react. In a dual intensity circuit (rear markers and brakes) if the LEDs are not pulsed at a fast enough frequency, they can create a phantom array, where ghost images of the LED appear if the eyes quickly scan across the array. White LED headlamps are beginning to appear. Using LEDs has styling advantages because LEDs can form much thinner lights than incandescent lamps with parabolic reflectors.
Due to the relative cheapness of low output LEDs, they are also used in many temporary uses such as glowsticks, and throwies. Artists have also used LEDs for LED art.
Lighting
With the development of high-efficiency and high-power LEDs, it has become possible to use LEDs in lighting and illumination. To encourage the shift to LED lamps and other high-efficiency lighting, in 2008 the US Department of Energy created the L Prize competition. The Philips Lighting North America LED bulb won the first competition on August 3, 2011, after successfully completing 18 months of intensive field, lab, and product testing.[205]
Efficient lighting is needed for sustainable architecture. As of 2011, some LED bulbs provide up to 150 lm/W and even inexpensive low-end models typically exceed 50 lm/W, so that a 6-watt LED could achieve the same results as a standard 40-watt incandescent bulb. The lower heat output of LEDs also reduces demand on air conditioning systems. Worldwide, LEDs are rapidly adopted to displace less effective sources such as incandescent lamps and CFLs and reduce electrical energy consumption and its associated emissions. Solar powered LEDs are used as street lights and in architectural lighting.
The mechanical robustness and long lifetime are used in automotive lighting on cars, motorcycles, and bicycle lights. LED street lights are employed on poles and in parking garages. In 2007, the Italian village of Torraca was the first place to convert its street lighting to LEDs.[206]
Cabin lighting on recent[when?] Airbus and Boeing jetliners uses LED lighting. LEDs are also being used in airport and heliport lighting. LED airport fixtures currently include medium-intensity runway lights, runway centerline lights, taxiway centerline and edge lights, guidance signs, and obstruction lighting.
LEDs are also used as a light source for DLP projectors, and to backlight newer LCD television (referred to as LED TV), computer monitor (including laptop) and handheld device LCDs, succeeding older CCFL-backlit LCDs although being superseded by OLED screens. RGB LEDs raise the color gamut by as much as 45%. Screens for TV and computer displays can be made thinner using LEDs for backlighting.[207]
LEDs are small, durable and need little power, so they are used in handheld devices such as flashlights. LED strobe lights or camera flashes operate at a safe, low voltage, instead of the 250+ volts commonly found in xenon flashlamp-based lighting. This is especially useful in cameras on mobile phones, where space is at a premium and bulky voltage-raising circuitry is undesirable.
LEDs are used for infrared illumination in night vision uses including security cameras. A ring of LEDs around a video camera, aimed forward into a retroreflective background, allows chroma keying in video productions.
LEDs are used in mining operations, as cap lamps to provide light for miners. Research has been done to improve LEDs for mining, to reduce glare and to increase illumination, reducing risk of injury to the miners.[208]
LEDs are increasingly finding uses in medical and educational applications, for example as mood enhancement.[209] NASA has even sponsored research for the use of LEDs to promote health for astronauts.[210]
Data communication and other signalling
Light can be used to transmit data and analog signals. For example, lighting white LEDs can be used in systems assisting people to navigate in closed spaces while searching necessary rooms or objects.[211]
Assistive listening devices in many theaters and similar spaces use arrays of infrared LEDs to send sound to listeners' receivers. Light-emitting diodes (as well as semiconductor lasers) are used to send data over many types of fiber optic cable, from digital audio over TOSLINK cables to the very high bandwidth fiber links that form the Internet backbone. For some time, computers were commonly equipped with IrDA interfaces, which allowed them to send and receive data to nearby machines via infrared.
Because LEDs can cycle on and off millions of times per second, very high data bandwidth can be achieved.[212] For that reason, visible light communication (VLC) has been proposed as an alternative to the increasingly competitive radio bandwidth.[213] VLC operates in the visible part of the electromagnetic spectrum, so data can be transmitted without occupying the frequencies of radio communications.
أنظمة الرؤية الآلية
Machine vision systems often require bright and homogeneous illumination, so features of interest are easier to process. LEDs are often used.
Barcode scanners are the most common example of machine vision applications, and many of those scanners use red LEDs instead of lasers. Optical computer mice use LEDs as a light source for the miniature camera within the mouse.
LEDs are useful for machine vision because they provide a compact, reliable source of light. LED lamps can be turned on and off to suit the needs of the vision system, and the shape of the beam produced can be tailored to match the system's requirements.
Biological detection
The discovery of radiative recombination in aluminum gallium nitride (AlGaN) alloys by U.S. Army Research Laboratory (ARL) led to the conceptualization of UV light-emitting diodes (LEDs) to be incorporated in light-induced fluorescence sensors used for biological agent detection.[214][215][216] In 2004, the Edgewood Chemical Biological Center (ECBC) initiated the effort to create a biological detector named TAC-BIO. The program capitalized on semiconductor UV optical sources (SUVOS) developed by the Defense Advanced Research Projects Agency (DARPA).[216]
UV-induced fluorescence is one of the most robust techniques used for rapid real-time detection of biological aerosols.[216] The first UV sensors were lasers lacking in-field-use practicality. In order to address this, DARPA incorporated SUVOS technology to create a low-cost, small, lightweight, low-power device. The TAC-BIO detector's response time was one minute from when it sensed a biological agent. It was also demonstrated that the detector could be operated unattended indoors and outdoors for weeks at a time.[216]
Aerosolized biological particles fluoresce and scatter light under a UV light beam. Observed fluorescence is dependent on the applied wavelength and the biochemical fluorophores within the biological agent. UV induced fluorescence offers a rapid, accurate, efficient and logistically practical way for biological agent detection. This is because the use of UV fluorescence is reagentless, or a process that does not require an added chemical to produce a reaction, with no consumables, or produces no chemical byproducts.[216]
Additionally, TAC-BIO can reliably discriminate between threat and non-threat aerosols. It was claimed to be sensitive enough to detect low concentrations, but not so sensitive that it would cause false positives. The particle-counting algorithm used in the device converted raw data into information by counting the photon pulses per unit of time from the fluorescence and scattering detectors, and comparing the value to a set threshold.[217]
The original TAC-BIO was introduced in 2010, while the second-generation TAC-BIO GEN II, was designed in 2015 to be more cost-efficient, as plastic parts were used. Its small, light-weight design allows it to be mounted to vehicles, robots, and unmanned aerial vehicles. The second-generation device could also be utilized as an environmental detector to monitor air quality in hospitals, airplanes, or even in households to detect fungus and mold.[218][219]
Other applications
The light from LEDs can be modulated very quickly so they are used extensively in optical fiber and free space optics communications. This includes remote controls, such as for television sets, where infrared LEDs are often used. Opto-isolators use an LED combined with a photodiode or phototransistor to provide a signal path with electrical isolation between two circuits. This is especially useful in medical equipment where the signals from a low-voltage sensor circuit (usually battery-powered) in contact with a living organism must be electrically isolated from any possible electrical failure in a recording or monitoring device operating at potentially dangerous voltages. An optoisolator also lets information be transferred between circuits that do not share a common ground potential.
Many sensor systems rely on light as the signal source. LEDs are often ideal as a light source due to the requirements of the sensors. The Nintendo Wii's sensor bar uses infrared LEDs. Pulse oximeters use them for measuring oxygen saturation. Some flatbed scanners use arrays of RGB LEDs rather than the typical cold-cathode fluorescent lamp as the light source. Having independent control of three illuminated colors allows the scanner to calibrate itself for more accurate color balance, and there is no need for warm-up. Further, its sensors only need be monochromatic, since at any one time the page being scanned is only lit by one color of light.
Since LEDs can also be used as photodiodes, they can be used for both photo emission and detection. This could be used, for example, in a touchscreen that registers reflected light from a finger or stylus.[220] Many materials and biological systems are sensitive to, or dependent on, light. Grow lights use LEDs to increase photosynthesis in plants,[221] and bacteria and viruses can be removed from water and other substances using UV LEDs for sterilization.[118] LEDs of certain wavelengths have also been used for light therapy treatment of neonatal jaundice and acne.[222]
UV LEDs, with spectra range of 220 nm to 395 nm, have other applications, such as water/air purification, surface disinfection, glue curing, free-space non-line-of-sight communication, high performance liquid chromatography, UV curing dye printing, phototherapy (295nm Vitamin D, 308nm Excimer lamp or laser replacement), medical/ analytical instrumentation, and DNA absorption.[215][223]
LEDs have also been used as a medium-quality voltage reference in electronic circuits. The forward voltage drop (about 1.7 V for a red LED or 1.2V for an infrared) can be used instead of a Zener diode in low-voltage regulators. Red LEDs have the flattest I/V curve above the knee. Nitride-based LEDs have a fairly steep I/V curve and are useless for this purpose. Although LED forward voltage is far more current-dependent than a Zener diode, Zener diodes with breakdown voltages below 3 V are not widely available.
The progressive miniaturization of low-voltage lighting technology, such as LEDs and OLEDs, suitable to incorporate into low-thickness materials has fostered experimentation in combining light sources and wall covering surfaces for interior walls in the form of LED wallpaper.
A large LED display behind a disc jockey
Seven-segment display that can display four digits and points
البحث والتطوير
Key challenges
LEDs require optimized efficiency to hinge on ongoing improvements such as phosphor materials and quantum dots.[224]
The process of down-conversion (the method by which materials convert more-energetic photons to different, less energetic colors) also needs improvement. For example, the red phosphors that are used today are thermally sensitive and need to be improved in that aspect so that they do not color shift and experience efficiency drop-off with temperature. Red phosphors could also benefit from a narrower spectral width to emit more lumens and becoming more efficient at converting photons.[225]
In addition, work remains to be done in the realms of current efficiency droop, color shift, system reliability, light distribution, dimming, thermal management, and power supply performance.[224]
Early suspicions were that the LED droop was caused by elevated temperatures. Scientists showed that temperature was not the root cause of efficiency droop.[226] The mechanism causing efficiency droop was identified in 2007 as Auger recombination, which was taken with mixed reaction.[188] A 2013 study conclusively identified Auger recombination as the cause.[227]
Potential technology
A new family of LEDs are based on the semiconductors called perovskites. In 2018, less than four years after their discovery, the ability of perovskite LEDs (PLEDs) to produce light from electrons already rivaled those of the best performing OLEDs.[228] They have a potential for cost-effectiveness as they can be processed from solution, a low-cost and low-tech method, which might allow perovskite-based devices that have large areas to be made with extremely low cost. Their efficiency is superior by eliminating non-radiative losses, in other words, elimination of recombination pathways that do not produce photons; or by solving outcoupling problem (prevalent for thin-film LEDs) or balancing charge carrier injection to increase the EQE (external quantum efficiency). The most up-to-date PLED devices have broken the performance barrier by shooting the EQE above 20%.[229]
In 2018, Cao et al. and Lin et al. independently published two papers on developing perovskite LEDs with EQE greater than 20%, which made these two papers a mile-stone in PLED development. Their device have similar planar structure, i.e. the active layer (perovskite) is sandwiched between two electrodes. To achieve a high EQE, they not only reduced non-radiative recombination, but also utilized their own, subtly different methods to improve the EQE.[229]
In the work of Cao et al.,[230] researchers targeted the outcoupling problem, which is that the optical physics of thin-film LEDs causes the majority of light generated by the semiconductor to be trapped in the device.[231] To achieve this goal, they demonstrated that solution-processed perovskites can spontaneously form submicrometre-scale crystal platelets, which can efficiently extract light from the device. These perovskites are formed via the introduction of amino acid additives into the perovskite precursor solutions. In addition, their method is able to passivate perovskite surface defects and reduce nonradiative recombination. Therefore, by improving the light outcoupling and reducing nonradiative losses, Cao and his colleagues successfully achieved PLED with EQE up to 20.7%.[230]
Lin and his colleague used a different approach to generate high EQE. Instead of modifying the microstructure of perovskite layer, they chose to adopt a new strategy for managing the compositional distribution in the device—an approach that simultaneously provides high luminescence and balanced charge injection. In other words, they still used flat emissive layer, but tried to optimize the balance of electrons and holes injected into the perovskite, so as to make the most efficient use of the charge carriers. Moreover, in the perovskite layer, the crystals are perfectly enclosed by MABr additive (where MA is CH3NH3). The MABr shell passivates the nonradiative defects that would otherwise be present perovskite crystals, resulting in reduction of the nonradiative recombination. Therefore, by balancing charge injection and decreasing nonradiative losses, Lin and his colleagues developed PLED with EQE up to 20.3%.[232]
See also
References
- ^ "HJ Round was a pioneer in the development of the LED". www.myledpassion.com. Archived from the original on أكتوبر 28, 2020. Retrieved أبريل 11, 2017.
- ^ "The life and times of the LED — a 100-year history" (PDF). The Optoelectronics Research Centre, University of Southampton. أبريل 2007. Archived from the original (PDF) on سبتمبر 15, 2012. Retrieved سبتمبر 4, 2012.
- ^ US Patent 3293513, "Semiconductor Radiant Diode", James R. Biard and Gary Pittman, Filed on Aug. 8th, 1962, Issued on Dec. 20th, 1966.
- ^ "Inventor of Long-Lasting, Low-Heat Light Source Awarded $500,000 Lemelson-MIT Prize for Invention". Washington, D.C. Massachusetts Institute of Technology. أبريل 21, 2004. Archived from the original on أكتوبر 9, 2011. Retrieved ديسمبر 21, 2011.
- ^ Edwards, Kimberly D. "Light Emitting Diodes" (PDF). University of California, Irvine. p. 2. Archived from the original (PDF) on فبراير 14, 2019. Retrieved يناير 12, 2019.
- ^ Lighting Research Center. "How is white light made with LEDs?". Rensselaer Polytechnic Institute. Archived from the original on مايو 2, 2021. Retrieved يناير 12, 2019.
- ^ أ ب ت ث Okon, Thomas M.; Biard, James R. (2015). "The First Practical LED" (PDF). EdisonTechCenter.org. Edison Tech Center. Retrieved فبراير 2, 2016.
- ^ Peláez, E. A; Villegas, E. R (2007). "LED power reduction trade-offs for ambulatory pulse oximetry". 2007 29th Annual International Conference of the IEEE Engineering in Medicine and Biology Society. Vol. 2007. pp. 2296–9. doi:10.1109/IEMBS.2007.4352784. ISBN 978-1-4244-0787-3. PMID 18002450. S2CID 34626885.
- ^ Round, H. J. (1907). "A note on carborundum". Electrical World. 19: 309.
- ^ Margolin J. "The Road to the Transistor". jmargolin.com.
- ^ Losev, O. V. (1927). "Светящийся карборундовый детектор и детектирование с кристаллами" [Luminous carborundum detector and detection with crystals]. Телеграфия и Телефония без Проводов [Wireless Telegraphy and Telephony] (in الروسية). 5 (44): 485–494. English translation: Losev, O. V. (نوفمبر 1928). "Luminous carborundum detector and detection effect and oscillations with crystals". Philosophical Magazine. 7th series. 5 (39): 1024–1044. doi:10.1080/14786441108564683.
- ^ Zheludev, N. (2007). "The life and times of the LED: a 100-year history" (PDF). Nature Photonics. 1 (4): 189–192. Bibcode:2007NaPho...1..189Z. doi:10.1038/nphoton.2007.34. Archived from the original (PDF) on مايو 11, 2011. Retrieved أبريل 11, 2007.
- ^ Lee, Thomas H. (2004). The design of CMOS radio-frequency integrated circuits. Cambridge University Press. p. 20. ISBN 978-0-521-83539-8.
- ^ Destriau, G. (1936). "Recherches sur les scintillations des sulfures de zinc aux rayons". Journal de Chimie Physique. 33: 587–625. doi:10.1051/jcp/1936330587.
- ^ McGraw-Hill Concise Encyclopedia of Physics: electroluminescence. (n.d.) McGraw-Hill Concise Encyclopedia of Physics. (2002).
- ^ "Brief history of LEDs" (PDF).
- ^ Lehovec, K; Accardo, C. A; Jamgochian, E (1951). "Injected Light Emission of Silicon Carbide Crystals". Physical Review. 83 (3): 603–607. Bibcode:1951PhRv...83..603L. doi:10.1103/PhysRev.83.603. Archived from the original on ديسمبر 11, 2014.
- ^ Lehovec, K; Accardo, C. A; Jamgochian, E (1953). "Injected Light Emission of Silicon Carbide Crystals". Physical Review. 89 (1): 20–25. Bibcode:1953PhRv...89...20L. doi:10.1103/PhysRev.89.20.
- ^ "Rubin Braunstein". UCLA. Archived from the original on مارس 11, 2011. Retrieved يناير 24, 2012.
- ^ Braunstein, Rubin (1955). "Radiative Transitions in Semiconductors". Physical Review. 99 (6): 1892–1893. Bibcode:1955PhRv...99.1892B. doi:10.1103/PhysRev.99.1892.
- ^ Kroemer, Herbert (سبتمبر 16, 2013). "The Double-Heterostructure Concept: How It Got Started". Proceedings of the IEEE. 101 (10): 2183–2187. doi:10.1109/JPROC.2013.2274914. S2CID 2554978.
- ^ Matzen, W. T. ed. (March 1963) "Semiconductor Single-Crystal Circuit Development", Texas Instruments Inc., Contract No. AF33(616)-6600, Rept. No ASD-TDR-63-281.
- ^ Carr, W. N.; G. E. Pittman (نوفمبر 1963). "One-watt GaAs p-n junction infrared source". Applied Physics Letters. 3 (10): 173–175. Bibcode:1963ApPhL...3..173C. doi:10.1063/1.1753837.
- ^ Kubetz, Rick (مايو 4, 2012). "Nick Holonyak, Jr., six decades in pursuit of light". University of Illinois. Archived from the original on يوليو 10, 2020. Retrieved يوليو 7, 2020.
- ^ Holonyak Nick; Bevacqua, S. F. (ديسمبر 1962). "Coherent (Visible) Light Emission from Ga(As1−x Px) Junctions". Applied Physics Letters. 1 (4): 82. Bibcode:1962ApPhL...1...82H. doi:10.1063/1.1753706. Archived from the original on أكتوبر 14, 2012.
- ^ Wolinsky, Howard (فبراير 5, 2005). "U. of I.'s Holonyak out to take some of Edison's luster". Chicago Sun-Times. Archived from the original on مارس 28, 2006. Retrieved يوليو 29, 2007.
- ^ Perry, T. S. (1995). "M. George Craford [biography]". IEEE Spectrum. 32 (2): 52–55. doi:10.1109/6.343989.
- ^ "Brief Biography — Holonyak, Craford, Dupuis" (PDF). Technology Administration. Archived from the original (PDF) on أغسطس 9, 2007. Retrieved مايو 30, 2007.
- ^ Pearsall, T. P.; Miller, B. I.; Capik, R. J.; Bachmann, K. J. (1976). "Efficient, Lattice-matched, Double Heterostructure LEDs at 1.1 mm from GaxIn1−xAsyP1−y by Liquid-phase Epitaxy". Appl. Phys. Lett. 28 (9): 499. Bibcode:1976ApPhL..28..499P. doi:10.1063/1.88831.
- ^ أ ب ت Schubert, E. Fred (2003). "1". Light-Emitting Diodes. Cambridge University Press. ISBN 978-0-8194-3956-7.
- ^ Rostky, George (مارس 1997). "LEDs cast Monsanto in Unfamiliar Role". Electronic Engineering Times (944).
- ^ أ ب Borden, Howard C.; Pighini, Gerald P. (فبراير 1969). "Solid-State Displays" (PDF). Hewlett-Packard Journal: 2–12. Archived (PDF) from the original on نوفمبر 5, 2023.
- ^ أ ب Kramer, Bernhard (2003). Advances in Solid State Physics. Springer Science & Business Media. p. 40. ISBN 9783540401506.
- ^ "Hewlett-Packard 5082-7000". The Vintage Technology Association. Archived from the original on نوفمبر 17, 2014. Retrieved أغسطس 15, 2019.
- ^ {{{1}}} patent {{{2}}}
- ^ Patent number: 3025589 Retrieved May 17, 2013
- ^ Bausch, Jeffrey (ديسمبر 2011). "The Long History of Light Emitting Diodes". Hearst Business Communications.
- ^ Park, S. -I.; Xiong, Y.; Kim, R. -H.; Elvikis, P.; Meitl, M.; Kim, D. -H.; Wu, J.; Yoon, J.; Yu, C. -J.; Liu, Z.; Huang, Y.; Hwang, K. -C.; Ferreira, P.; Li, X.; Choquette, K.; Rogers, J. A. (2009). "Printed Assemblies of Inorganic Light-Emitting Diodes for Deformable and Semitransparent Displays" (PDF). Science. 325 (5943): 977–981. Bibcode:2009Sci...325..977P. CiteSeerX 10.1.1.660.3338. doi:10.1126/science.1175690. OSTI 1876039. PMID 19696346. S2CID 8062948. Archived from the original (PDF) on أكتوبر 24, 2015.
- ^ "Nobel Shocker: RCA Had the First Blue LED in 1972". IEEE Spectrum. October 9, 2014,
- ^ "Oregon tech CEO says Nobel Prize in Physics overlooks the actual inventors". The Oregonian. October 16, 2014
- ^ Schubert, E. Fred (2006) Light-emitting diodes (2nd ed.), Cambridge University Press. ISBN 0-521-86538-7 pp. 16–17
- ^ Maruska, H. (2005). "A Brief History of GaN Blue Light-Emitting Diodes". LIGHTimes Online – LED Industry News. Archived يونيو 11, 2012 at the Wayback Machine
- ^ Major Business and Product Milestones. Cree.com. Retrieved on March 16, 2012. Archived أبريل 13, 2011 at the Wayback Machine
- ^ Edmond, John A.; Kong, Hua-Shuang; Carter, Calvin H. (أبريل 1, 1993). "Blue LEDs, UV photodiodes and high-temperature rectifiers in 6H-SiC". Physica B: Condensed Matter. 185 (1): 453–460. Bibcode:1993PhyB..185..453E. doi:10.1016/0921-4526(93)90277-D. ISSN 0921-4526.
- ^ "History & Milestones". Cree.com. Cree. Archived from the original on فبراير 16, 2017. Retrieved سبتمبر 14, 2015.
- ^ "GaN-based blue light emitting device development by Akasaki and Amano" (PDF). Takeda Award 2002 Achievement Facts Sheet. The Takeda Foundation. أبريل 5, 2002. Retrieved نوفمبر 28, 2007.
- ^ Moustakas, Theodore D. U.S. Patent 5٬686٬738A "Highly insulating monocrystalline gallium nitride thin films" Issue date: March 18, 1991
- ^ Brown, Joel (ديسمبر 7, 2015). "BU Wins $13 Million in Patent Infringement Suit". BU Today. Retrieved ديسمبر 7, 2015.
- ^ Nakamura, S.; Mukai, T.; Senoh, M. (1994). "Candela-Class High-Brightness InGaN/AlGaN Double-Heterostructure Blue-Light-Emitting-Diodes". Applied Physics Letters. 64 (13): 1687. Bibcode:1994ApPhL..64.1687N. doi:10.1063/1.111832.
- ^ Nakamura, Shuji. "Development of the Blue Light-Emitting Diode". SPIE Newsroom. Retrieved سبتمبر 28, 2015.
- ^ Iwasa, Naruhito; Mukai, Takashi and Nakamura, Shuji U.S. Patent 5٬578٬839 "Light-emitting gallium nitride-based compound semiconductor device" Issue date: November 26, 1996
- ^ Fred Schubert, E. (يناير 2006). Light-Emitting Diodes (2nd Edition, 2006). E. Fred Schubert. ISBN 978-0-9863826-1-1.
- ^ "Professor Shuji Nakamura was key to the Invention of Blu-Ray Technology". University of California, Santa Barbara. يناير 12, 2023. Archived from the original on مارس 24, 2023. Retrieved يونيو 4, 2023.
- ^ "Dr. Shuji Nakamura". National Academy of Engineering. Archived from the original on أبريل 11, 2019. Retrieved يونيو 4, 2023.
- ^ 2006 Millennium technology prize awarded to UCSB's Shuji Nakamura. Ia.ucsb.edu (June 15, 2006). Retrieved on August 3, 2019.
- ^ Overbye, Dennis (أكتوبر 7, 2014). "Nobel Prize in Physics". The New York Times.
- ^ Dadgar, A.; Alam, A.; Riemann, T.; Bläsing, J.; Diez, A.; Poschenrieder, M.; Strassburg, M.; Heuken, M.; Christen, J.; Krost, A. (2001). "Crack-Free InGaN/GaN Light Emitters on Si(111)". Physica Status Solidi A. 188: 155–158. doi:10.1002/1521-396X(200111)188:1<155::AID-PSSA155>3.0.CO;2-P.
- ^ Dadgar, A.; Poschenrieder, M.; BläSing, J.; Fehse, K.; Diez, A.; Krost, A. (2002). "Thick, crack-free blue light-emitting diodes on Si(111) using low-temperature AlN interlayers and in situ Si\sub x]N\sub y] masking". Applied Physics Letters. 80 (20): 3670. Bibcode:2002ApPhL..80.3670D. doi:10.1063/1.1479455.
- ^ "Success in research: First gallium-nitride LED chips on silicon in pilot stage" (PDF). Archived from the original (PDF) on September 15, 2012. Retrieved 2012-09-15.. www.osram.de, January 12, 2012.
- ^ Lester, Steve (2014) Role of Substrate Choice on LED Packaging Archived يوليو 12, 2014 at the Wayback Machine. Toshiba America Electronic Components.
- ^ "GaN on Silicon". Cambridge Centre for Gallium Nitride. Gan.msm.cam.ac.uk. Retrieved July 31, 2018.
- ^ Bush, Steve (June 30, 2016). "Toshiba gets out of GaN-on-Si LEDs". Electronics Weekly. Retrieved July 31, 2018.
- ^ Nunoue, Shin-ya; Hikosaka, Toshiki; Yoshida, Hisashi; Tajima, Jumpei; Kimura, Shigeya; Sugiyama, Naoharu; Tachibana, Koichi; Shioda, Tomonari; Sato, Taisuke; Muramoto, Eiji; Onomura, Masaaki (2013). "LED manufacturing issues concerning gallium nitride-on-silicon (GaN-on-Si) technology and wafer scale up challenges". 2013 IEEE International Electron Devices Meeting. pp. 13.2.1–13.2.4. doi:10.1109/IEDM.2013.6724622. ISBN 978-1-4799-2306-9. S2CID 23448056.
- ^ Wright, Maury (May 2, 2016). "Samsung's Tarn reports progress in CSP and GaN-on-Si LEDs". LEDs Magazine.
- ^ "Increasing the Competitiveness of the GaN-on-silicon LED". Compound Semiconductor (30 March 2016).
- ^ "Samsung To Focus on Silicon-based LED Chip Technology in 2015". LED Inside (17 March 2015).
- ^ Keeping, Steven. (2013-01-15) "Material and Manufacturing Improvements". DigiKey. Retrieved on 2018-07-31.
- ^ Keeping, Steven (December 12, 2014) "Manufacturers Shift Attention to Light Quality to Further LED Market Share Gains". DigiKey. Retrieved July 31, 2018.
- ^ Keeping, Steven. (September 24, 2013). "Will Silicon Substrates Push LED Lighting Into the Mainstream?". DigiKey. Retrieved July 31, 2018.
- ^ Keeping, Steven (March 24, 2015). "Improved Silicon-Substrate LEDs Address High Solid-State Lighting Costs". DigiKey. Retrieved July 31, 2018.
- ^ "Development of the Nano-Imprint Equipment ST50S-LED for High-Brightness LED". Toshiba Machine (May 18, 2011). Retrieved July 31, 2018.
- ^ "The use of sapphire in mobile device and LED industries: Part 2". Solid State Technology (September 26, 2017). Retrieved July 31, 2018.
- ^ "Epitaxy". Applied Materials. Retrieved July 31, 2018.
- ^ أ ب Lester, Steve, Role of Substrate Choice on LED Pacakaging, Toshiba America Electronic Components, https://apps1.eere.energy.gov/buildings/publications/pdfs/ssl/lester_substrate-pkg_tampa2014.pdf
- ^ Semiengineering: MOCVD vendors eye new apps
- ^ Izotov, Sergey; Sitdikov, Anton; Soldatkin, Vasily; Tuev, Vasily; Olisovets, Artem (2014). "Study of Phosphors for White LEDs". Procedia Technology (in الإنجليزية). 18: 14–18. doi:10.1016/j.protcy.2014.11.005.
- ^ "Haitz's law". Nature Photonics. 1 (1): 23. 2007. Bibcode:2007NaPho...1...23.. doi:10.1038/nphoton.2006.78.
- ^ "List of Top 10 LED light manufacturer in China". Archived from the original on أكتوبر 9, 2014.
- ^ Morris, Nick (يونيو 1, 2006). "LED there be light, Nick Morris predicts a bright future for LEDs". Electrooptics.com. Archived from the original on نوفمبر 23, 2011. Retrieved مارس 4, 2009.
- ^ "The LED Illumination Revolution". Forbes. فبراير 27, 2008.
- ^ "The Nobel Prize in Physics 2014" (press release). Nobel Prize Committee, 7 October 2014
- ^ "Cree First to Break 300 Lumens-Per-Watt Barrier". Archived يوليو 28, 2018 at the Wayback Machine. Cree.com (Match 26, 2014). Retrieved July 31, 2018.
- ^ LM301B | SAMSUNG LED | Samsung LED Global Website. Samsung.com. Retrieved on 2018-07-31.
- ^ Samsung Achieves 220 Lumens per Watt with New Mid-Power LED Package. Samsung.com (2017-06-16). Retrieved on 2018-07-31.
- ^ LED breakthrough promises ultra-efficient luminaires | Lux-n-Lum.Retrieved on 2018-04-06.
- ^ "White LEDs with super-high luminous efficacy could satisfy all general lighting needs". phys.org.
- ^ LED bulb efficiency expected to continue improving as cost declines. U.S. Energy Information Administration (March 19, 2014)
- ^ LED Lighting: Technology and Perception. John Wiley & Sons. فبراير 9, 2015. ISBN 978-3-527-41212-9.
- ^ "Hermetic Polymer-Free White LEDs for Harsh Environments".
- ^ From LED to Solid State Lighting: Principles, Materials, Packaging, Characterization, and Applications. John Wiley & Sons. سبتمبر 28, 2021. ISBN 978-1-118-88147-7.
- ^ Introduction to the Light-Emitting Diode: Real Applications for Industrial Engineers. Springer. مايو 12, 2023. ISBN 978-3-031-30716-4.
- ^ Reliability of Organic Compounds in Microelectronics and Optoelectronics: From Physics-of-Failure to Physics-of-Degradation. Springer. يناير 31, 2022. ISBN 978-3-030-81576-9.
- ^ From LED to Solid State Lighting: Principles, Materials, Packaging, Characterization, and Applications. John Wiley & Sons. سبتمبر 28, 2021. ISBN 978-1-118-88147-7.
- ^ Fundamentals of Solid-State Lighting: LEDs, OLEDs, and Their Applications in Illumination and Displays. CRC Press. يونيو 3, 2014. ISBN 978-1-4665-6112-0.
- ^ LED Packaging for Lighting Applications: Design, Manufacturing, and Testing. John Wiley & Sons. يوليو 5, 2011. ISBN 978-0-470-82840-3.
- ^ LED Packaging for Lighting Applications: Design, Manufacturing, and Testing. John Wiley & Sons. يوليو 5, 2011. ISBN 978-0-470-82840-3.
- ^ LED Lighting: Technology and Perception. John Wiley & Sons. فبراير 9, 2015. ISBN 978-3-527-41212-9.
- ^ Chung, Woon Jin; Nam, Yoon Hee (2020). "Review—A Review on Phosphor in Glass as a High Power LED Color Converter". ECS Journal of Solid State Science and Technology. 9 (1): 016010. Bibcode:2020JSSST...9a6010C. doi:10.1149/2.0142001JSS.
- ^ "Philips LED 60W 806lm Retrofit with Remote Phosphor". lamptech.co.uk. Retrieved يناير 9, 2022.
- ^ Light-Emitting Diodes (4th Edition, 2023). E. Fred Schubert. مارس 11, 2023. ISBN 978-0-9863826-7-3.
- ^ Reliability Investigation of LED Devices for Public Light Applications. Elsevier. مارس 9, 2017. ISBN 978-0-08-101092-1.
- ^ Solid State Lighting Reliability: Components to Systems. Springer. سبتمبر 6, 2012. ISBN 978-1-4614-3067-4.
- ^ Solid State Lighting Reliability Part 2: Components to Systems. Springer. يوليو 11, 2017. ISBN 978-3-319-58175-0.
- ^ Reliability of Organic Compounds in Microelectronics and Optoelectronics: From Physics-of-Failure to Physics-of-Degradation. Springer. يناير 31, 2022. ISBN 978-3-030-81576-9.
- ^ Light-Emitting Diodes (2nd Edition, 2006). E. Fred Schubert. يناير 2006. ISBN 978-0-9863826-1-1.
- ^ Nitride Semiconductor Light-Emitting Diodes (LEDs): Materials, Technologies, and Applications. Woodhead. أكتوبر 24, 2017. ISBN 978-0-08-101943-6.
- ^ LED Lighting: Technology and Perception. John Wiley & Sons. فبراير 9, 2015. ISBN 978-3-527-41212-9.
- ^ LED Lighting: Technology and Perception. John Wiley & Sons. فبراير 9, 2015. ISBN 978-3-527-41212-9.
- ^ Fundamentals of Solid-State Lighting: LEDs, OLEDs, and Their Applications in Illumination and Displays. CRC Press. يونيو 3, 2014. ISBN 978-1-4665-6112-0.
- ^ III-Nitride Based Light Emitting Diodes and Applications. Springer. مايو 18, 2017. ISBN 978-981-10-3755-9.
- ^ "New Glass-Based Phosphors for White Light-Emitting Diodes".
- ^ From LED to Solid State Lighting: Principles, Materials, Packaging, Characterization, and Applications. John Wiley & Sons. سبتمبر 28, 2021. ISBN 978-1-118-88147-7.
- ^ LED Lighting: Technology and Perception. John Wiley & Sons. فبراير 9, 2015. ISBN 978-3-527-41212-9.
- ^ Pearsall, Thomas (2010). Photonics Essentials, 2nd edition. McGraw-Hill. ISBN 978-0-07-162935-5. Archived from the original on أغسطس 17, 2021. Retrieved فبراير 25, 2021.
- ^ "LED Basics | Department of Energy". www.energy.gov. Retrieved أكتوبر 22, 2018.
- ^ "LED Spectral Distribution". optiwave.com. يوليو 25, 2013. Retrieved يونيو 20, 2017.
- ^ Cooke, Mike (أبريل–مايو 2010). "Going Deep for UV Sterilization LEDs" (PDF). Semiconductor Today. 5 (3): 82. Archived from the original (PDF) on مايو 15, 2013.
- ^ أ ب Mori, M.; Hamamoto, A.; Takahashi, A.; Nakano, M.; Wakikawa, N.; Tachibana, S.; Ikehara, T.; Nakaya, Y.; Akutagawa, M.; Kinouchi, Y. (2007). "Development of a new water sterilization device with a 365 nm UV-LED". Medical & Biological Engineering & Computing. 45 (12): 1237–1241. doi:10.1007/s11517-007-0263-1. PMID 17978842. S2CID 2821545.
- ^ Taniyasu, Y.; Kasu, M.; Makimoto, T. (2006). "An aluminium nitride light-emitting diode with a wavelength of 210 nanometres". Nature. 441 (7091): 325–328. Bibcode:2006Natur.441..325T. doi:10.1038/nature04760. PMID 16710416. S2CID 4373542.
- ^ Kubota, Y.; Watanabe, K.; Tsuda, O.; Taniguchi, T. (2007). "Deep Ultraviolet Light-Emitting Hexagonal Boron Nitride Synthesized at Atmospheric Pressure". Science. 317 (5840): 932–934. Bibcode:2007Sci...317..932K. doi:10.1126/science.1144216. PMID 17702939.
- ^ Watanabe, K.; Taniguchi, T.; Kanda, H. (2004). "Direct-bandgap properties and evidence for ultraviolet lasing of hexagonal boron nitride single crystal". Nature Materials. 3 (6): 404–409. Bibcode:2004NatMa...3..404W. doi:10.1038/nmat1134. PMID 15156198. S2CID 23563849.
- ^ Koizumi, S.; Watanabe, K.; Hasegawa, M.; Kanda, H. (2001). "Ultraviolet Emission from a Diamond pn Junction". Science. 292 (5523): 1899–1901. Bibcode:2001Sci...292.1899K. doi:10.1126/science.1060258. PMID 11397942. S2CID 10675358.
- ^ "Seeing Red with PFS Phosphor".
- ^ "GE Lighting manufactures PFS red phosphor for LED display backlight applications". مارس 31, 2015.
- ^ Murphy, James E.; Garcia-Santamaria, Florencio; Setlur, Anant A.; Sista, Srinivas (2015). "62.4: PFS, K2SiF6:Mn4+: The Red-line Emitting LED Phosphor behind GE's TriGain Technology™ Platform". Sid Symposium Digest of Technical Papers. 46: 927–930. doi:10.1002/sdtp.10406.
- ^ Dutta, Partha S.; Liotta, Kathryn M. (2018). "Full Spectrum White LEDs of Any Color Temperature with Color Rendering Index Higher Than 90 Using a Single Broad-Band Phosphor". ECS Journal of Solid State Science and Technology. 7: R3194–R3198. doi:10.1149/2.0251801jss. S2CID 103600941.
- ^ Cho, Jaehee; Park, Jun Hyuk; Kim, Jong Kyu; Schubert, E. Fred (2017). "White light-emitting diodes: History, progress, and future". Laser & Photonics Reviews. 11 (2): 1600147. Bibcode:2017LPRv...1100147C. doi:10.1002/lpor.201600147. ISSN 1863-8880. S2CID 53645208.
- ^ Light-Emitting Diodes (3rd Edition, 2018). E. Fred Schubert. فبراير 3, 2018. ISBN 978-0-9863826-6-6.
- ^ Additive Manufacturing and Strategic Technologies in Advanced Ceramics. John Wiley & Sons. أغسطس 16, 2016. ISBN 978-1-119-23600-9.
- ^ Moreno, I.; Contreras, U. (2007). "Color distribution from multicolor LED arrays". Optics Express. 15 (6): 3607–3618. Bibcode:2007OExpr..15.3607M. doi:10.1364/OE.15.003607. PMID 19532605. S2CID 35468615.
- ^ Yeh, Dong-Ming; Huang, Chi-Feng; Lu, Chih-Feng; Yang, Chih-Chung. "Making white-light-emitting diodes without phosphors | SPIE Homepage: SPIE". spie.org. Retrieved أبريل 7, 2019.
- ^ Cabrera, Rowan (2019). Electronic Devices and Circuits. EDTECH. ISBN 978-1839473838.
- ^ Schubert, E. Fred; Kim, Jong Kyu (2005). "Solid-State Light Sources Getting Smart" (PDF). Science. 308 (5726): 1274–1278. Bibcode:2005Sci...308.1274S. doi:10.1126/science.1108712. PMID 15919985. S2CID 6354382. Archived from the original (PDF) on فبراير 5, 2016.
- ^ Nimz, Thomas; Hailer, Fredrik; Jensen, Kevin (نوفمبر 2012). "Sensors and Feedback Control of Multicolor LED Systems". Led Professional Review: Trends & Technologie for Future Lighting Solutions. LED Professional (34): 2–5. ISSN 1993-890X. Archived from the original (PDF) on أبريل 29, 2014.
- ^ Tanabe, S.; Fujita, S.; Yoshihara, S.; Sakamoto, A.; Yamamoto, S. (2005). Ferguson, Ian T; Carrano, John C; Taguchi, Tsunemasa; Ashdown, Ian E (eds.). "YAG glass-ceramic phosphor for white LED (II): luminescence characteristics" (PDF). Proceedings of SPIE. Fifth International Conference on Solid State Lighting. 5941: 594112. Bibcode:2005SPIE.5941..193T. doi:10.1117/12.614681. S2CID 38290951. Archived from the original (PDF) on مايو 11, 2011.
- ^ Ohno, Y. (2004). Ferguson, Ian T; Narendran, Nadarajah; Denbaars, Steven P; Carrano, John C (eds.). "Color rendering and luminous efficacy of white LED spectra" (PDF). Proc. SPIE. Fourth International Conference on Solid State Lighting. 5530: 89. Bibcode:2004SPIE.5530...88O. doi:10.1117/12.565757. S2CID 122777225. Archived from the original (PDF) on مايو 11, 2011.
- ^ Next-Generation GaN-on-Si White LEDs Suppress Costs, Electronic Design, 19 November 2013
- ^ GaN-on-Silicon LEDs Forecast to Increase Market Share to 40 Percent by 2020, iSuppli, 4 December 2013
- ^ "All You Want to Know about RGBW LED Light". AGC Lighting.
- ^ "Tunable White Application Note". enlightedinc.com.
- ^ "2021 How Green Light Can Maximize the Quality of Tunable White – LEDucation".
- ^ أ ب "Understanding LED Color-Tunable Products". Energy.gov (in الإنجليزية).
- ^ Whitaker, Tim (ديسمبر 6, 2002). "Joint venture to make ZnSe white LEDs". Retrieved يناير 3, 2009.
- ^ Burroughes, J. H.; Bradley, D. D. C.; Brown, A. R.; Marks, R. N.; MacKay, K.; Friend, R. H.; Burns, P. L.; Holmes, A. B. (1990). "Light-emitting diodes based on conjugated polymers". Nature. 347 (6293): 539–541. Bibcode:1990Natur.347..539B. doi:10.1038/347539a0. S2CID 43158308.
- ^ أ ب (March 4, 2008) "Final Report: OLED Solid State Lighting" in Kodak European Research..
- ^ أ ب Bardsley, J. N. (2004). "International OLED Technology Roadmap". IEEE Journal of Selected Topics in Quantum Electronics. 10 (1): 3–4. Bibcode:2004IJSTQ..10....3B. doi:10.1109/JSTQE.2004.824077. S2CID 30084021.
- ^ Hebner, T. R.; Wu, C. C.; Marcy, D.; Lu, M. H.; Sturm, J. C. (1998). "Ink-jet printing of doped polymers for organic light emitting devices". Applied Physics Letters. 72 (5): 519. Bibcode:1998ApPhL..72..519H. doi:10.1063/1.120807. S2CID 119648364.
- ^ Bharathan, J.; Yang, Y. (1998). "Polymer electroluminescent devices processed by inkjet printing: I. Polymer light-emitting logo". Applied Physics Letters. 72 (21): 2660. Bibcode:1998ApPhL..72.2660B. doi:10.1063/1.121090. S2CID 44128025.
- ^ Gustafsson, G.; Cao, Y.; Treacy, G. M.; Klavetter, F.; Colaneri, N.; Heeger, A. J. (1992). "Flexible light-emitting diodes made from soluble conducting polymers". Nature. 357 (6378): 477–479. Bibcode:1992Natur.357..477G. doi:10.1038/357477a0. S2CID 4366944.
- ^ أ ب ت Jiang, Ji; Chu, Zema; Yin, Zhigang; Li, Jingzhen; Yang, Yingguo; Chen, Jingren; Wu, Jinliang; You, Jingbi; Zhang, Xingwang (سبتمبر 2022). "Red Perovskite Light-Emitting Diodes with Efficiency Exceeding 25% Realized by Co-Spacer Cations". Advanced Materials (in الإنجليزية). 34 (36): e2204460. Bibcode:2022AdM....3404460J. doi:10.1002/adma.202204460. ISSN 0935-9648. PMID 35855612. S2CID 250697931.
- ^ أ ب ت ث ج Bai, Wenhao; Xuan, Tongtong; Zhao, Haiyan; Dong, Haorui; Cheng, Xinru; Wang, Le; Xie, Rong-Jun (سبتمبر 2023). "Perovskite Light-Emitting Diodes with an External Quantum Efficiency Exceeding 30%". Advanced Materials (in الإنجليزية). 35 (39): e2302283. Bibcode:2023AdM....3502283B. doi:10.1002/adma.202302283. ISSN 0935-9648. PMID 37246938. S2CID 258959858.
- ^ أ ب Sun, Changjiu; Jiang, Yuanzhi; Cui, Minghuan; Qiao, Lu; Wei, Junli; Huang, Yanmin; Zhang, Li; He, Tingwei; Li, Saisai; Hsu, Hsien-Yi; Qin, Chaochao; Long, Run; Yuan, Mingjian (أبريل 13, 2021). "High-performance large-area quasi-2D perovskite light-emitting diodes". Nature Communications (in الإنجليزية). 12 (1): 2207. Bibcode:2021NatCo..12.2207S. doi:10.1038/s41467-021-22529-x. ISSN 2041-1723. PMC 8044177. PMID 33850141.
- ^ أ ب Zhou, Wei; Shen, Yang; Cao, Long-Xue; Lu, Yu; Tang, Ying-Yi; Zhang, Kai; Ren, Hao; Xie, Feng-Ming; Li, Yan-Qing; Tang, Jian-Xin (يوليو 2023). "Manipulating Ionic Behavior with Bifunctional Additives for Efficient Sky-Blue Perovskite Light-Emitting Diodes". Advanced Functional Materials (in الإنجليزية). 33 (27). doi:10.1002/adfm.202301425. ISSN 1616-301X. S2CID 257609652.
- ^ أ ب Chen, Ziming; Li, Zhenchao; Chen, Zhen; Xia, Ruoxi; Zou, Guangruixing; Chu, Linghao; Su, Shi-Jian; Peng, Junbiao; Yip, Hin-Lap; Cao, Yong (فبراير 2021). "Utilization of Trapped Optical Modes for White Perovskite Light-Emitting Diodes with Efficiency over 12%". Joule. 5 (2): 456–466. doi:10.1016/j.joule.2020.12.008. ISSN 2542-4351. S2CID 233896421.
- ^ Feng, Wenjing; Lin, Kebin; Li, Wenqiang; Xiao, Xiangtian; Lu, Jianxun; Yan, Chuanzhong; Liu, Xinyi; Xie, Liqiang; Tian, Chengbo; Wu, Dan; Wang, Kai; Wei, Zhanhua (مايو 4, 2021). "Efficient all-inorganic perovskite light-emitting diodes enabled by manipulating the crystal orientation". Journal of Materials Chemistry A (in الإنجليزية). 9 (17): 11064–11072. doi:10.1039/D1TA00093D. ISSN 2050-7496. S2CID 234226202.
- ^ أ ب ت Liu, Yuan; Dong, Yitong; Zhu, Tong; Ma, Dongxin; Proppe, Andrew; Chen, Bin; Zheng, Chao; Hou, Yi; Lee, Seungjin; Sun, Bin; Jung, Eui Hyuk; Yuan, Fanglong; Wang, Ya-kun; Sagar, Laxmi Kishore; Hoogland, Sjoerd (سبتمبر 29, 2021). "Bright and Stable Light-Emitting Diodes Based on Perovskite Quantum Dots in Perovskite Matrix". Journal of the American Chemical Society (in الإنجليزية). 143 (38): 15606–15615. doi:10.1021/jacs.1c02148. ISSN 0002-7863. PMID 34542273. S2CID 237574321.
- ^ LED-design. Elektor.com. Retrieved on March 16, 2012. Archived أغسطس 31, 2012 at the Wayback Machine
- ^ "Luminus Products". Luminus Devices. Archived from the original on يوليو 25, 2008. Retrieved أكتوبر 21, 2009.
- ^ "Luminus Products CST-90 Series Datasheet" (PDF). Luminus Devices. Archived from the original (PDF) on مارس 31, 2010. Retrieved أكتوبر 25, 2009.
- ^ أ ب "Xlamp Xp-G Led". Cree.com. Cree, Inc. Archived from the original on مارس 13, 2012. Retrieved مارس 16, 2012.
- ^ High Power Point Source White Led NVSx219A. Nichia.co.jp, November 2, 2010.
- ^ "Seoul Semiconductor launches AC LED lighting source Acrich". LEDS Magazine. نوفمبر 17, 2006. Retrieved فبراير 17, 2008.
- ^ أ ب Visibility, Environmental, and Astronomical Issues Associated with Blue-Rich White Outdoor Lighting (PDF). International Dark-Sky Association. مايو 4, 2010. Archived from the original (PDF) on يناير 16, 2013.
- ^ Oskay, Windell (يونيو 22, 2011). "Does this LED sound funny to you?". Evil Mad Scientist Laboratories (in الإنجليزية الأمريكية). Archived from the original on سبتمبر 24, 2023. Retrieved يناير 30, 2024.
- ^ Tim's Blog (يناير 14, 2024). "Revisiting Candle Flicker-LEDs: Now with integrated Timer". cpldcpu.wordpress.com (in الإنجليزية). Archived from the original on يناير 29, 2024. Retrieved يناير 30, 2024.
- ^ Ting, Hua-Nong (يونيو 17, 2011). 5th Kuala Lumpur International Conference on Biomedical Engineering 2011: BIOMED 2011, 20–23 June 2011, Kuala Lumpur, Malaysia. Springer Science & Business Media. ISBN 9783642217296.
- ^ "The Next Generation of LED Filament Bulbs". LEDInside.com. Trendforce. Retrieved أكتوبر 26, 2015.
- ^ Archived at Ghostarchive and the Wayback Machine: "LED Filaments". YouTube. Retrieved أكتوبر 26, 2015.
- ^ Handbook on the Physics and Chemistry of Rare Earths: Including Actinides. Elsevier Science. أغسطس 1, 2016. p. 89. ISBN 978-0-444-63705-5.
- ^ "Corn Lamps: What Are They & Where Can I Use Them?". Shine Retrofits. سبتمبر 1, 2016. Retrieved ديسمبر 30, 2018.
- ^ "Blue LEDs: A health hazard?". texyt.com. يناير 15, 2007. Retrieved سبتمبر 3, 2007.
- ^ Some evidences that white LEDs are toxic for human at domestic radiance?. Radioprotection (2017-09-12). Retrieved on 2018-07-31.
- ^ Point, S. and Barlier-Salsi, A. (2018) LEDs lighting and retinal damage, technical information sheets, SFRP
- ^ "LED Based Products Must Meet Photobilogical Safety Standards: Part 2". ledsmagazine.com. نوفمبر 29, 2011. Retrieved يناير 9, 2022.
- ^ Lim, S. R.; Kang, D.; Ogunseitan, O. A.; Schoenung, J. M. (2011). "Potential Environmental Impacts of Light-Emitting Diodes (LEDs): Metallic Resources, Toxicity, and Hazardous Waste Classification". Environmental Science & Technology. 45 (1): 320–327. Bibcode:2011EnST...45..320L. doi:10.1021/es101052q. PMID 21138290.
- ^ "Response to the AMA Statement on High Intensity Street Lighting". ledroadwaylighting.com. Retrieved يناير 17, 2019.
- ^ "Solid-State Lighting: Comparing LEDs to Traditional Light Sources". eere.energy.gov. Archived from the original on مايو 5, 2009.
- ^ "Dialight Micro LED SMD LED "598 SERIES" Datasheet" (PDF). Dialight.com. Archived from the original (PDF) on فبراير 5, 2009.
- ^ "Data Sheet — HLMP-1301, T-1 (3 mm) Diffused LED Lamps". Avago Technologies. Retrieved مايو 30, 2010.
- ^ Narra, Prathyusha; Zinger, D.S. (2004). "An effective LED dimming approach". Conference Record of the 2004 IEEE Industry Applications Conference, 2004. 39th IAS Annual Meeting. Vol. 3. pp. 1671–1676. doi:10.1109/IAS.2004.1348695. ISBN 978-0-7803-8486-6. S2CID 16372401.
- ^ "Lifetime of White LEDs". Archived from the original on April 10, 2009. Retrieved 2009-04-10., US Department of Energy
- ^ Lifetime of White LEDs Archived مايو 28, 2016 at the Wayback Machine. US Department of Energy. (PDF). Retrieved on March 16, 2012.
- ^ "In depth: Advantages of LED Lighting". energy.ltgovernors.com.
- ^ "LED Light Bars For Off Road Illumination". Larson Electronics.
- ^ The LED Museum. Retrieved on March 16, 2012.
- ^ Worthey, James A. "How White Light Works". LRO Lighting Research Symposium, Light and Color. Retrieved أكتوبر 6, 2007.
- ^ Hecht, E. (2002). Optics (4 ed.). Addison Wesley. p. 591. ISBN 978-0-19-510818-7.
- ^ أ ب Stevenson, Richard (August 2009), "The LED's Dark Secret: Solid-state lighting will not supplant the lightbulb until it can overcome the mysterious malady known as droop". IEEE Spectrum.
- ^ Stokstad, Erik (أكتوبر 7, 2014). "LEDs: Good for prizes, bad for insects". Science. Retrieved أكتوبر 7, 2014.
- ^ Pawson, S. M.; Bader, M. K.-F. (2014). "LED Lighting Increases the Ecological Impact of Light Pollution Irrespective of Color Temperature". Ecological Applications. 24 (7): 1561–1568. Bibcode:2014EcoAp..24.1561P. doi:10.1890/14-0468.1. PMID 29210222.
- ^ Polakovic, Gary (يونيو 12, 2018). "Scientist's new database can help protect wildlife from harmful hues of LED lights". USC News (in الإنجليزية الأمريكية). Archived from the original on مايو 19, 2020. Retrieved ديسمبر 16, 2019.
- ^ "Information About Sea Turtles: Threats from Artificial Lighting". Sea Turtle Conservancy (in الإنجليزية الأمريكية). Retrieved ديسمبر 16, 2019.
- ^ "Stoplights' Unusual, Potentially Deadly Winter Problem". ABC News. يناير 8, 2010. Archived from the original on ديسمبر 12, 2023.
- ^ Markley, Stephen (ديسمبر 17, 2009). "LED Traffic Lights Can't Melt Snow, Ice". Cars.com. Archived from the original on يونيو 6, 2019.
- ^ "LED Design Forum: Avoiding thermal runaway when driving multiple LED strings". LEDs Magazine. أبريل 20, 2009. Retrieved يناير 17, 2019.
- ^ Stern, Maike Lorena; Schellenberger, Martin (مارس 31, 2020). "Fully convolutional networks for chip-wise defect detection employing photoluminescence images". Journal of Intelligent Manufacturing. 32 (1): 113–126. arXiv:1910.02451. doi:10.1007/s10845-020-01563-4. ISSN 0956-5515. S2CID 254655125.
- ^ Hoque, Md Ashraful; Bradley, Robert Kelley; Fan, Jiajie; Fan, Xuejun (2019). "Effects of humidity and phosphor on silicone/Phosphor composite in white light-emitting diode package". Journal of Materials Science: Materials in Electronics. 30 (23): 20471–20478. doi:10.1007/s10854-019-02393-8.
- ^ "3-Pad LED Flip Chip COB". LED professional - LED Lighting Technology, Application Magazine (in الإنجليزية). Retrieved فبراير 15, 2024.
- ^ European Photonics Industry Consortium (EPIC). This includes use in data communications over fiber optics as well as "broadcast" data or signaling.
- ^ Mims, Forrest M. III. "An Inexpensive and Accurate Student Sun Photometer with Light-Emitting Diodes as Spectrally Selective Detectors".
- ^ "Water Vapor Measurements with LED Detectors". cs.drexel.edu (2002).
- ^ Dziekan, Mike (February 6, 2009) "Using Light-Emitting Diodes as Sensors". soamsci.or. Archived مايو 31, 2013 at the Wayback Machine
- ^ Ben-Ezra, Moshe; Wang, Jiaping; Wilburn, Bennett; Xiaoyang Li; Le Ma (2008). "An LED-only BRDF measurement device". 2008 IEEE Conference on Computer Vision and Pattern Recognition. pp. 1–8. CiteSeerX 10.1.1.165.484. doi:10.1109/CVPR.2008.4587766. ISBN 978-1-4244-2242-5. S2CID 206591080.
- ^ Bantis, Filippos, Sonia Smirnakou, Theoharis Ouzounis, Athanasios Koukounaras, Nikolaos Ntagkas, and Kalliopi Radoglou. "Current status and recent achievements in the field of horticulture with the use of light-emitting diodes (LEDs)." Scientia horticulturae 235 (2018): 437-451.
- ^ "L-Prize U.S. Department of Energy", L-Prize Website, August 3, 2011
- ^ LED There Be Light, Scientific American, March 18, 2009
- ^ Eisenberg, Anne (يونيو 24, 2007). "In Pursuit of Perfect TV Color, With L.E.D.'s and Lasers". New York Times. Retrieved أبريل 4, 2010.
- ^ "CDC – NIOSH Publications and Products – Impact: NIOSH Light-Emitting Diode (LED) Cap Lamp Improves Illumination and Decreases Injury Risk for Underground Miners". cdc.gov. 2011. doi:10.26616/NIOSHPUB2011192. Retrieved مايو 3, 2013.
{{cite journal}}: Cite journal requires|journal=(help) - ^ Janeway, Kimberly (ديسمبر 12, 2014). "LED lightbulbs that promise to help you sleep". Consumer Reports. Retrieved مايو 10, 2018.
- ^ "LED Device Illuminates New Path to Healing" (Press release). nasa.gov. Archived from the original on أكتوبر 13, 2008. Retrieved يناير 30, 2012.
- ^ Fudin, M. S.; Mynbaev, K. D.; Aifantis, K. E.; Lipsanen H.; Bougrov, V. E.; Romanov, A. E. (2014). "Frequency characteristics of modern LED phosphor materials". Scientific and Technical Journal of Information Technologies, Mechanics and Optics. 14 (6).
- ^ Green, Hank (أكتوبر 9, 2008). "Transmitting Data Through LED Light Bulbs". EcoGeek. Archived from the original on ديسمبر 12, 2008. Retrieved فبراير 15, 2009.
- ^ Dimitrov, Svilen; Haas, Harald (2015). Principles of LED Light Communications: Towards Networked Li-Fi. Cambridge: Cambridge University Press. doi:10.1017/cbo9781107278929. ISBN 978-1-107-04942-0.
- ^ Sampath, A. V.; Reed, M. L.; Moe, C.; Garrett, G. A.; Readinger, E. D.; Sarney, W. L.; Shen, H.; Wraback, M.; et al. (2009-12-01), The effects of increasing AlN mole fraction on the performance of AlGaN active regions containing nanometer scale compositionally imhomogeneities, Selected Topics in Electronics and Systems, 51, World Scientific, pp. 69–76, doi:, ISBN 9789814287869
- ^ أ ب Liao, Yitao; Thomidis, Christos; Kao, Chen-kai; Moustakas, Theodore D. (فبراير 21, 2011). "AlGaN based deep ultraviolet light emitting diodes with high internal quantum efficiency grown by molecular beam epitaxy". Applied Physics Letters. 98 (8): 081110. Bibcode:2011ApPhL..98h1110L. doi:10.1063/1.3559842. ISSN 0003-6951.
- ^ أ ب ت ث ج Cabalo, Jerry; DeLucia, Marla; Goad, Aime; Lacis, John; Narayanan, Fiona; Sickenberger, David (أكتوبر 2, 2008). Carrano, John C.; Zukauskas, Arturas (eds.). "Overview of the TAC-BIO detector". Optically Based Biological and Chemical Detection for Defence IV. International Society for Optics and Photonics. 7116: 71160D. Bibcode:2008SPIE.7116E..0DC. doi:10.1117/12.799843. S2CID 108562187.
- ^ Poldmae, Aime; Cabalo, Jerry; De Lucia, Marla; Narayanan, Fiona; Strauch III, Lester; Sickenberger, David (سبتمبر 28, 2006). Carrano, John C.; Zukauskas, Arturas (eds.). "Biological aerosol detection with the tactical biological (TAC-BIO) detector". Optically Based Biological and Chemical Detection for Defence III. SPIE. 6398: 63980E. doi:10.1117/12.687944. S2CID 136864366.
- ^ "Army advances bio-threat detector". www.army.mil. يناير 22, 2015. Retrieved أكتوبر 10, 2019.
- ^ Kesavan, Jana; Kilper, Gary; Williamson, Mike; Alstadt, Valerie; Dimmock, Anne; Bascom, Rebecca (فبراير 1, 2019). "Laboratory validation and initial field testing of an unobtrusive bioaerosol detector for health care settings". Aerosol and Air Quality Research. 19 (2): 331–344. doi:10.4209/aaqr.2017.10.0371. ISSN 1680-8584.
- ^ Dietz, P. H.; Yerazunis, W. S.; Leigh, D. L. (2004). "Very Low-Cost Sensing and Communication Using Bidirectional LEDs".
{{cite journal}}: Cite journal requires|journal=(help) - ^ Goins, G. D.; Yorio, N. C.; Sanwo, M. M.; Brown, C. S. (1997). "Photomorphogenesis, photosynthesis, and seed yield of wheat plants grown under red light-emitting diodes (LEDs) with and without supplemental blue lighting". Journal of Experimental Botany. 48 (7): 1407–1413. doi:10.1093/jxb/48.7.1407. PMID 11541074.
- ^ Li, Jinmin; Wang, Junxi; Yi, Xiaoyan; Liu, Zhiqiang; Wei, Tongbo; Yan, Jianchang; Xue, Bin (أغسطس 31, 2020). III-Nitrides Light Emitting Diodes: Technology and Applications (in الإنجليزية). Springer Nature. p. 248. ISBN 978-981-15-7949-3.
- ^ Gaska, R.; Shur, M. S.; Zhang, J. (أكتوبر 2006). "Physics and Applications of Deep UV LEDs". 2006 8th International Conference on Solid-State and Integrated Circuit Technology Proceedings. pp. 842–844. doi:10.1109/ICSICT.2006.306525. ISBN 1-4244-0160-7. S2CID 17258357.
- ^ أ ب "LED R&D Challenges". Energy.gov. Retrieved مارس 13, 2019.
- ^ "JULY 2015 POSTINGS". Energy.gov. Retrieved مارس 13, 2019.
- ^ Identifying the Causes of LED Efficiency Droop Archived 13 ديسمبر 2013 at the Wayback Machine, By Steven Keeping, Digi-Key Corporation Tech Zone
- ^ Iveland, Justin; et al. (أبريل 23, 2013). "Cause of LED Efficiency Droop Finally Revealed". Physical Review Letters, 2013.
- ^ Di, Dawei; Romanov, Alexander S.; Yang, Le; Richter, Johannes M.; Rivett, Jasmine P. H.; Jones, Saul; Thomas, Tudor H.; Abdi Jalebi, Mojtaba; Friend, Richard H.; Linnolahti, Mikko; Bochmann, Manfred (أبريل 14, 2017). "High-performance light-emitting diodes based on carbene-metal-amides" (PDF). Science (in الإنجليزية). 356 (6334): 159–163. arXiv:1606.08868. Bibcode:2017Sci...356..159D. doi:10.1126/science.aah4345. ISSN 0036-8075. PMID 28360136. S2CID 206651900.
- ^ أ ب Armin, Ardalan; Meredith, Paul (أكتوبر 2018). "LED technology breaks performance barrier". Nature. 562 (7726): 197–198. Bibcode:2018Natur.562..197M. doi:10.1038/d41586-018-06923-y. PMID 30305755.
- ^ أ ب Cao, Yu; Wang, Nana; Tian, He; Guo, Jingshu; Wei, Yingqiang; Chen, Hong; Miao, Yanfeng; Zou, Wei; Pan, Kang; He, Yarong; Cao, Hui (أكتوبر 2018). "Perovskite light-emitting diodes based on spontaneously formed submicrometre-scale structures". Nature (in الإنجليزية). 562 (7726): 249–253. Bibcode:2018Natur.562..249C. doi:10.1038/s41586-018-0576-2. ISSN 1476-4687. PMID 30305742.
- ^ Cho, Sang-Hwan; Song, Young-Woo; Lee, Joon-gu; Kim, Yoon-Chang; Lee, Jong Hyuk; Ha, Jaeheung; Oh, Jong-Suk; Lee, So Young; Lee, Sun Young; Hwang, Kyu Hwan; Zang, Dong-Sik (أغسطس 18, 2008). "Weak-microcavity organic light-emitting diodes with improved light out-coupling". Optics Express (in الإنجليزية). 16 (17): 12632–12639. Bibcode:2008OExpr..1612632C. doi:10.1364/OE.16.012632. ISSN 1094-4087. PMID 18711500.
- ^ Lin, Kebin; Xing, Jun; Quan, Li Na; de Arquer, F. Pelayo García; Gong, Xiwen; Lu, Jianxun; Xie, Liqiang; Zhao, Weijie; Zhang, Di; Yan, Chuanzhong; Li, Wenqiang (أكتوبر 2018). "Perovskite light-emitting diodes with external quantum efficiency exceeding 20 per cent". Nature (in الإنجليزية). 562 (7726): 245–248. Bibcode:2018Natur.562..245L. doi:10.1038/s41586-018-0575-3. hdl:10356/141016. ISSN 1476-4687. PMID 30305741. S2CID 52958604.
Further reading
- David L. Heiserman (1968). Light -Emitting Diodes (PDF). Electronics World.
- Shuji Nakamura; Gerhard Fasol; Stephen J Pearton (2000). The Blue Laser Diode: The Complete Story. Springer Verlag. ISBN 978-3-540-66505-2.
External links
- Building a do-it-yourself LED
- Color cycling LED in a single two pin package,
- Educational video on LEDs at YouTube
|
.svg&filetimestamp=20231005131916){kind=link}
.jpg&filetimestamp=20230823170107){kind=link}
- CS1 الروسية-language sources (ru)
- CS1 الإنجليزية الأمريكية-language sources (en-us)
- Short description is different from Wikidata
- Articles with hatnote templates targeting a nonexistent page
- Missing redirects
- Articles with unsourced statements from March 2016
- Articles with unsourced statements from October 2020
- Articles with unsourced statements from August 2023
- Articles needing additional references from December 2020
- All articles needing additional references
- Articles with broken excerpts
- Articles needing additional references from October 2020
- Articles with unsourced statements from December 2022
- المقالات needing additional references from October 2020
- كل المقالات needing additional references
- Articles with unsourced statements from April 2016
- Vague or ambiguous time from October 2022
- Articles prone to spam from July 2013
- Use American English from October 2015
- All Wikipedia articles written in American English
- Use mdy dates from March 2013
- Light-emitting diodes
- LED lamps
- Optical diodes
- Display technology
- Signage
- 20th-century inventions
- دارات كهربائية
- مثنيات
- كهروضوئيات
- صمامات ضوئية
- إضاءة
- نبائط
- أطروحات 1907
- صمامات ثنائية باعثة للضوء
