حرب مضادة للدبابات

(تم التحويل من Anti-tank warfare)


A soldier preparing to fire the FGR-17 Viper, an American experimental one-man disposable antitank rocket

Anti-tank warfare originated from the need to develop technology and tactics to destroy tanks during World War I. Since the Allies deployed the first tanks in 1916, the German Empire developed the first anti-tank weapons.[1] The first developed anti-tank weapon was a scaled-up bolt-action rifle, the Mauser 1918 T-Gewehr, that fired a 13.2 mm cartridge with a solid bullet that could penetrate the thin armor of tanks at that time and destroy the engine or ricochet inside, killing occupants.[2] Because tanks represent an enemy's strong force projection on land, military strategists have incorporated anti-tank warfare into the doctrine of nearly every combat service since. The most predominant anti-tank weapons at the start of World War II in 1939 included the tank-mounted gun, anti-tank guns and anti-tank grenades used by the infantry, and ground-attack aircraft.

British Indian Army tank-hunting squad with anti-tank rifle and molotov cocktails in North Africa, 6 October 1940

Anti-tank warfare evolved rapidly during World War II, leading to the inclusion of infantry-portable weapons such as the Bazooka, anti-tank combat engineering, specialized anti-tank aircraft and self-propelled anti-tank guns (tank destroyers). Both the Soviet Red Army and the German Army developed methods of combating tank-led offensives, including deployment of static anti-tank weapons embedded in in-depth defensive positions, protected by anti-tank obstacles and minefields, and supported by mobile anti-tank reserves and by ground-attack aircraft.

A British 17-pounder anti-tank gun towed behind half-track in Italy, 1 September 1944

Through the Cold War, the United States, Soviet Union and other countries contemplated the possibility of nuclear warfare. While previous technology had developed to protect the crews of armored vehicles from projectiles and from explosive damage, now the possibility of radiation arose. In the NATO countries, little if any development took place on defining a doctrine of how to use armed forces without the use of tactical nuclear weapons. In the Soviet sphere of influence the legacy doctrine of operational maneuver was being theoretically examined to understand how a tank-led force could be used even with the threat of limited use of nuclear weapons on prospective European battlefields. The Warsaw Pact arrived at the solution of maneuver warfare while massively increasing the number of anti-tank weapons. To achieve this, Soviet military theorists such as Vasily Sokolovsky (1897–1968) realized that anti-tank weapons had to assume an offensive role rather than the traditionally defensive role of the Great Patriotic War (1941–1945) by becoming more mobile. This led to the development of improved guided anti-tank missiles, though similar design work was being performed in Western Europe and the United States.

Both sides in the Cold War also recognized the utility of the light anti-tank weapon, and this led to further development of man-portable weapons used by the infantry squad, while heavier missiles were mounted on dedicated missile tank-destroyers, including dedicated anti-tank helicopters, and even heavier guided anti-tank missiles launched from aircraft. Designers also developed new varieties of artillery munitions in the form of top-attack shells, and shells that were used to saturate areas with anti-armor bomblets. Helicopters could be used as well to rapidly deliver scattered anti-tank mines.

Since the end of the Cold War in 1992, the only major new threats to tanks and other armored vehicles have been remotely detonated improvised explosive devices (IEDs) used in asymmetric warfare and weapon systems like the RPG-29 and FGM-148 Javelin, which can defeat reactive armor or shell armor. Both those weapon systems use a tandem warhead where the first stage of the tandem warhead activates the reactive armor, and the second stage of the tandem warhead defeats the shell armor by means of a high-explosive anti-tank (HEAT) shaped charge.

During the Ukraine war, drones and loitering munitions have been used to destroy tanks.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

تهديد الدبابات

Anti-tank warfare evolved as a countermeasure to the threat of the tank's appearance on the battlefields of the Western Front of the First World War. The tank had been developed to negate the German system of trenches, and allow a return to maneuver against enemy's flanks and to attack the rear with cavalry.

The use of the tank was mainly based on the assumption that, once they were able to eliminate the German trench lines with their machine gun and infantry support gun positions, the Allied infantry would follow and secure the breach, and the cavalry would exploit the breach in the trench lines by attacking into the depth of German-held territory, eventually capturing the field artillery positions and interdicting logistics and reserves being brought up from the rear areas. Naval crews[بحاجة لمصدر] initially used to operate the installed naval guns and machine guns were replaced with Army personnel who were more aware of the infantry tactics with which the tanks were intended to cooperate. However, there was no means of communication between the tank's crew and the accompanying infantry, or between the tanks participating in combat. Radios were not yet portable or robust enough to be mounted in a tank, although Morse Code transmitters were installed in some Mark IVs at Cambrai as messaging vehicles.[3] Attaching a field telephone to the rear would become a practice only during the next war. With greater use of tanks by both sides it was realized that the accompanying infantry could be forced to ground by ambush fire, thus separating them from the tanks, which would continue to advance, eventually finding themselves exposed to close-assaults by German infantry and sappers.

The early tanks were mechanically rudimentary. The 6-to-12-millimetre (0.24 to 0.47 in) thick armor generally prevented penetration by small arms fire and shell fragments. However, even a near miss from field artillery or an impact from a mortar could easily disable or destroy the tank: if the fuel tank was ruptured, it could incinerate the tank's crew. A large caliber gun was recognized as a tactical necessity to attack machine gun positions and defeat any infantry field pieces found in the trench lines which could easily disable tank track with the HE ammunition. This was achieved by mounting a 57 mm QF 6 pounder Hotchkiss light naval gun in the hull barbettes. Hull and track engineering was largely dictated by the terrain—the need to cross wide trenches—although the relationship between ground pressure and soil-vehicle mechanics was not resolved until the Second World War. Turrets were later introduced on medium and light tanks to react to ambushes during the advance.[بحاجة لمصدر]


الحرب العالمية الأولى

The tank, when it appeared on the Western Front in September 1916, was a surprise to German troops, but not the German General Staff. The French Army Staff was highly critical of the British Army's early fielding of the Mark I vehicles in small numbers because the French trials showed the armored vehicles to be highly unreliable. They judged that large numbers had to be employed to sustain an offensive despite losses to mechanical failure or vehicles foundering in intractable no man's land terrain. These losses, coupled with those from enemy artillery fire, later amounted to as high as 70% of the starters during some operations. Deploying small numbers of tanks would therefore cause the Allies to lose the element of surprise, allowing Germans to develop countermeasures.

A British heavy tank of World War One

الأسلحة المضادة للدبابات

Because the German Army was the only force in need of anti-tank weapons, they were first to develop a viable technology to combat the armored vehicle. These technologies took three ammunition approaches: use of grenades by infantrymen, including the Geballte Ladung ("Bundled Charge") of several stick grenades bound together by pioneers; early attempts at the small-caliber anti-tank rifles like the bolt-action 13 mm Mauser 1918 T-Gewehr; 3.7 cm TaK Rheinmetall in starrer Räder-lafette 1916 anti-tank gun on a light carriage which could destroy a tank[4] using large-caliber armor-piercing ammunition issued in 1917 to special commands; and the existing 77 mm field guns (such as the 7.7 cm FK 16) of the infantry division's artillery regiment were also eventually issued with special armor-piercing (AP) ammunition.

A disabled Mark IV tank near Cambrai, 1917 – World War I

التكتيكات المضادة للدبابات

With the appearance of Allied tanks, the German Army were quick to introduce new anti-tank defense detachments within the pioneer battalions of the infantry divisions. These were initially issued 13 mm caliber long barrel rifles firing solid shot. However, these suffered from fouling after 2–3 rounds and had a recoil that was unsustainable by the mechanism or the rifleman. Stick grenades were used to destroy the tracks by individual pioneers, however this required accompanying machine-gunners to first separate the supporting Allied infantry line from the tanks, which proved difficult. Another tactic was to lure the tank beyond the German trench-line, re-establishing it just as the Allied infantry approached. The tank would then be engaged by the divisional 7.7 cm guns brought forward, that would try to disable the tracks with ordinary HE shells (and later AP ammunition). If the crews of the disabled tanks refused to surrender, they were engaged with flamethrowers, or a mortar would be fired on the stricken vehicle until a direct hit was achieved on the top surface, usually resulting in an internal fire. Finally, anti-tank obstacles were prepared on the likely approaches by deepening and widening existing ground cratering, the precursors of the anti-tank trench. Finally in early 1917 the 3.7 cm TaK from Rheinmetall was rushed to the frontline, and proved effective in destroying the tanks despite limited elevation and traverse.

التطور ما بين الحربين

Lack of consensus on the design and use of the tank after the First World War also influenced the development of its anti-tank countermeasures. However, because Germany was restricted by the Treaty of Versailles in its military capability, and there were no other challenges to France and Britain, very little development took place in anti-tank warfare until the 1930s.

Czechoslovak anti-tank gun 3,7cm KPÚV vz. 37 .

The Interwar period was dominated by the strategic thinking with fortified borders at its core. These included obstacles consisting of natural features such as ditches, streams and urban areas, or constructed obstacles such as anti-tank ditches, minefields, dragon's teeth, or log barriers. The pinnacle of this strategic thinking was considered to be the Maginot Line which replaced infantry-filled trenches with artillery-filled bunkers, including casemates housing 37 or 47 mm anti-tank guns, and steel turrets armed with a pair of machine guns and a 25 mm anti-tank gun, although Germany was forbidden to produce tanks. The construction was partially based on the Allied experience with the Hindenburg Line which was breached with tank support during the battles of Cambrai and St. Quentin Canal, although German Command was more impressed by the surprise achieved by the Canadian troops at the Battle of the Canal du Nord. This came to influence their planning in 1940.

The Maginot line defenses – up to 25 km (16 mi) deep from the forward positions to the rear line – were intended to prevent a surprise attack and delay any attack while the French Army was mobilized. With the relative numerical inferiority between the France and Germany,قالب:Meaning? it was a more effective use of manpower. Within the line, passive anti-tank obstacles were supported by anti-infantry and anti-tank bunkers. After Belgium declared neutrality in 1936, France began work on extending the line along the Belgian border.

Improved artillery was seen as the quickest solution to anti-tank defense, and one of the earliest post-war anti-tank gun designs was the 25 mm Hotchkiss model from France. It was intended to replace an Atelier de Puteaux 37 mm weapon designed in 1916 to destroy machine gun positions. Rheinmetall commenced design of a 37 mm anti-tank gun in 1924 and the first guns were produced in 1928 as 3.7 cm Pak L/45,[5] later adopted in Wehrmacht service as 3.7 cm Pak 36. It made an appearance during the Spanish Civil War, as did the Bofors 37 mm developed in Sweden, and used by many early Second World War combatants. The British Army accepted for service the (40 mm) Ordnance QF 2 pounder, which was developed as a tank gun. The Soviet Red Army after the Russian Civil War also begun a search for an anti-tank gun with a French Hotchkiss 37 mm L.33 tank gun, but soon upgraded this to a higher velocity L.45 Model 1935 while also making a licensed copy of the German 3.7 cm PaK 36. However, the Red Army was almost immediately taught a lesson about anti-tank warfare when a tank battalion sent to aid the Spanish Republicans in the Spanish Civil War was almost entirely destroyed in an engagement.

At this time, the predominant ammunition used against tanks was the armor-piercing kinetic energy shell that defeated armor by direct pressure, spiking or punching through it. During the late 1930s shaped charge ammunition was experimented with that used chemical energy for armor penetration. The shaped charge concept is officially known as the "Munroe Effect" and was discovered by accident decades earlier by Professor Charles E. Munroe at the U.S. Torpedo Station, Providence, RI. Professor Munroe was detonating different manufactured blocks of explosives on a sheet of armor plating and observed the blocks having the manufacturing letters recessed (vs. raised) cut an imprint of the manufacturing letters into the armor plate—the birth of the shaped-charged explosive which focuses the blast energy caused by an indentation on the surface area of an explosive.[6] Although shaped charges are somewhat more difficult to manufacture, the advantage is that the projectile does not require as high velocity as typical kinetic energy shells, yet on impact it creates a high-velocity jet of metal flowing like a liquid due to the immense pressure (though x-ray diffraction has shown the metal stays solid[7]) which hydrodynamically penetrates the armor and kills occupants inside.[8] The depth of the penetration, though proportional to the length of the jet and the square root of its density, is also dependent on the strength of the armor. With the development of this new ammunition begun more advanced research into steel manufacturing, and development of spaced armor that caused "jet waver" by detonating prematurely or at the wrong angle to the surface of the main armor.

The only significant attempt to experiment in the use of tanks in the late 1920s was that of the British Army's Experimental Mechanized Force that influenced future development of tanks, armored troops and entire armies of both its future enemies and allies in the next war.

In Spain, the anti-tank defense of the Nationalists was organized by the Wehrmacht officers, and the anti-tank guns were incorporated into a system of obstacles that were constructed with the intent to stop an attack by tanks by slowing it down, separating them from supporting infantry (advancing on foot) with machine-gun and mortar fire, and forcing tanks to conduct deliberate head-on assaults with engineer support, or seek a less-defended area to attack. Minefields laid with purpose-designed mines were used for the first time, destroying tank tracks, and forcing combat engineers to clear them on foot. Delay meant that Nationalist field artillery could engage the lightly armored Soviet tanks. This meant a change in Republican operational and eventually strategic planning, and a more protracted combat operations, with more casualties at a greater cost.

The only change to the German anti-tank tactics of the First World War was that now an effective anti-tank weapon was available to support the defending infantry. However, the Soviet tanks armed with 45 mm guns easily destroyed the German light tanks.

Ironically, in the early 1930s until the Spanish War, German officers were conducting secret testing of a new way of employing tanks, infantry and artillery offensively in the Soviet Union with the cooperation of the Red Army. In Germany, these developments eventually culminated in tactics that later came to be known as Blitzkrieg, while in the Soviet Union they formed the core of the deep battle operational doctrine. The successful test of the latter was during the Battles of Khalkhin Gol although the Red Army foundered on the Mannerheim Line in 1940, largely due to the purge in the Officer Corps, claiming many of the senior proponents of the new doctrine. Anti-tank artillery would be included in mobile tank-led Wehrmacht and Red Army units due to the possibility of encountering enemy tanks in a meeting engagement.

The new doctrines of using the tank, were divided into infantry and cavalry schools of thought. The former regarded the tank as a mobile artillery system to be used for infantry support. This suggested that the infantry needed to be armed with integral anti-tank weapons. The latter advocated use of tanks in the traditional cavalry way of high-tempo attacks intended to outflank the enemy infantry and sever its communication lines. This approach suggested that the tank was the best anti-tank system, and only limited anti-tank troops were required to accompany them. For this reason the late 30s tank configurations came in a great diversity, ranging from light tankettes and cavalry tanks to multi-turreted heavy tanks resembling bunkers, all of which had to be considered in training by the anti-tank artillery troops. The development of these doctrines was the most significant influence on the rapid development in anti-tank technology and tactics in the Second World War.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

الحرب العالمية الثانية

Two aspects of how the Second World War commenced helped to delay development of anti-tank warfare: resignation and surprise. After Poland was attacked, its allies in the West were resigned to its defeat by a numerically superior Wehrmacht. The little information that was brought out about the conduct of combat during that campaign did nothing to convince either France, Britain or the USSR of the need for improved anti-tank technology and tactics. The reliance on the Maginot Line, and the subsequent surprise of the German offensive left no time to develop existing abilities and tactics in the West. The British were preparing the stop lines and the anti-tank islands to slow enemy progress and restrict the route of an attack. The Red Army however was fortunate in having several excellent designs for anti-tank warfare that were either in final stages of development for production, or had been rejected earlier as unnecessary and could now be rushed into production. The relative ease with which the older models of Red Army's tank fleet were destroyed by German anti-tank weapons, using tactics already seen in Spain, once and for all focused Stavka attention on anti-tank warfare as Soviet armies were repeatedly encircled by panzer-led strategic pincer maneuvers. Of the major iconic Soviet weapons of the Second World War, two were made exclusively for anti-tank warfare, the T-34 and the Ilyushin Il-2 Shturmovik. The former was one of the most manufactured tanks in history, and the latter, itself dubbed the 'flying tank', was one of the most manufactured aircraft. The war also saw the creation and almost immediate abandonment of the self-propelled tank destroyer which would be replaced post war by the anti tank guided missile.

الطائرات

Soviet Ilyushin Il-2 planes with 23 mm cannons attacking a German tank column during the Battle of Kursk

As tanks were rarely used in conflicts between the two World Wars, no specific aircraft or tactics were developed to combat them from the air. One solution adopted by almost all European air forces was to use bomb loads for conventional bombers that were composed from small bombs allowing a higher density during bombing. This created a greater chance of causing a direct impact on the thinner top armor of the tank while also having the ability to damage track and wheels through proximity detonation.

The first aircraft able to engage tanks was the Junkers Ju 87 "Stuka" using dive bombing to place the bomb close to the target. Some French and German fighters fitted with 20 mm cannon were also able to engage thinner top armor surfaces of the tanks early in the war. The Stuka was also given cannons for anti-armor role though it was obsolete by 1942, and was joined by the Henschel Hs 129 that mounted a podded 30 mm (1.2 in) MK 101 cannon beneath its fuselage, while the Red Army Air Force fielded the Soviet Ilyushin Il-2 armed with a pair of 23 mm cannons and unguided rockets, but armored to enable the pilots to approach German tanks at very low altitude, ignoring small arms, machine-gun and even small anti-aircraft cannon fire that usually provided tanks with protection against the bombers. Il-2s could also carry large numbers of 2.5 kg shaped-charge anti-tank PTAB bombs.

To give it more firepower against tanks, the RAF mounted two underwing pod-mounted 40 mm Vickers S cannon on the Hawker Hurricane (as the Mk. IID), which saw service in North Africa in 1942 and the Hawker Typhoon was given HE rockets though these were more effective against other ground vehicles. From March 1943 the Red Army Air Force produced the more agile Yakovlev Yak-9T (37 mm cannon) and K (45 mm cannon) bomber interceptor also used for ground attack, with one example of either gun in motornaya pushka mounts attached to the engine's gear reduction unit, that had either one of them firing through a hollow-center propeller shaft.

Following Operation Overlord in 1944, the military version of the slow-flying Piper J-3 Cub high-wing light civilian monoplane, the L-4 Grasshopper, usually used for liaison and artillery-spotting, began to be used in a light anti-armor role by a few U.S. Army artillery spotter units over France; these aircraft were field-outfitted with either two or four bazooka rocket launchers attached to the lift struts,[9] against German armored fighting vehicles. During the summer of 1944, U.S. Army Major Charles Carpenter managed to successfully take on an anti-armor role with his rocket-armed Piper L-4. His L-4, named Rosie the Rocketeer, armed with six bazookas, had a notable anti-armor success during an engagement during the Battle of Arracourt on September 20, 1944, knocking out at least four German armored vehicles,[10] as a pioneering example of taking on heavy enemy armor from a lightweight slow-flying aircraft.[11]

المدفعية الميدانية

Field artillery were often the first ground combat arm to engage detected concentration of troops which included tanks through artillery airborne observers, either in assembly areas (for refueling and rearming), during approach marches to the combat zone, or as the tank unit was forming up for the attack. Conventional artillery shells were very effective against the tank's thinner top armor if fired in appropriate density while the tanks were concentrated, enabling direct hits by a sufficiently powerful shell. Even a non-penetrating shell could still disable a tank through dynamic shock, internal armor shattering or simply overturning the tank. More importantly the tanks could be disabled due to damage to tracks and wheels, and their supporting vehicles and personnel could be damaged and killed, reducing unit's ability to fight in the longer term. Because tanks were usually accompanied by infantry mounted on trucks or half-tracked vehicles that lacked overhead armor, field artillery that fired a mix of ground and air-burst ammunition was likely to inflict heavy casualties on the infantry as well. Field guns, such as the Ordnance QF 25 pounder, were provided with armor-piercing shot for direct engagement of enemy tanks.

المدافع المضادة للدبابات

Bofors 37 mm anti-tank gun as used by several nations

Anti-tank guns are guns designed to destroy armored vehicles from defensive positions. In order to penetrate vehicle armor, they fire smaller caliber shells from longer-barreled guns to achieve higher muzzle velocity than field artillery weapons, many of which are howitzers. The higher velocity, flatter trajectory ballistics provide terminal kinetic energy to penetrate the moving/static target's armor at a given range and contact's angle. Any field artillery cannon with barrel length 15 to 25 times longer than its caliber was able also to fire anti-tank ammunition, such as the Soviet A-19.

Prior to World War II, few anti-tank guns had (or needed) calibers larger than 50 mm. Examples of guns in this class include the German 37 mm, US 37 mm (the largest gun able to be towed by the 1⁄4-ton, 4×4 'jeep'), French 25 mm and 47 mm guns, British QF 2-pounder (40 mm), Italian 47 mm and Soviet 45 mm. All of these light weapons could penetrate the thin armor found on most pre-war and early war tanks.

German PaK 38 50-mm anti-tank gun

At the start of World War II, many of these weapons were still being used operationally, along with a newer generation of light guns that closely resembled their WWI counterparts. After the well-armoured Soviet T-34 medium and KV heavy tanks were encountered, these guns were recognized as ineffective against sloped armor, with the German lightweight 37 mm gun quickly nicknamed the "tank door knocker" (ألمانية: Panzeranklopfgerät), for revealing its presence without penetrating the armor.

Germany introduced more powerful anti-tank guns, some which had been in the early stages of development prior to the war. By late 1942, the Germans had an excellent 50-mm high-velocity design, while they faced the QF 6-pounder introduced in the North African Campaign by the British Army, and later adopted by the US Army. By 1943 Wehrmacht was forced to adopt still larger calibers on the Eastern Front, the 75 mm and the famous 88 mm guns. The Red Army used a variety of 45 mm, 57 mm, and 100 mm guns, and deployed general-purpose 76.2 mm and 122-mm guns in the anti-tank role. By the time of the Invasion of Normandy, the British had the 3 in (76 mm) calibre QF 17 pounder, which design had begun before the 6 pounder entered service, in general use which proved to be a highly effective anti-tank gun and was also used on the Sherman Firefly tank, the Archer self-propelled gun, and on the 17-pdr SP Achilles

مدمرات الدبابات

The British Archer self-propelled anti-tank gun put the 17-pdr gun on the hull of a Valentine tank

As towed anti-tank cannon guns grew in size and weight, they became less mobile and more cumbersome to maneuver, and required ever larger gun crews, who often had to wrestle the gun into position while under heavy artillery and/or tank fire. As the war progressed, this disadvantage often resulted in the loss or destruction of both the antitank gun and its trained crew. This gave impetus to the development of the self-propelled, lightly armored "tank destroyer" (TD). The tank destroyer was usually based on the hull of existing tank designs, using either a gun integrated into the hull or a fully rotating turret much like that of a conventional tank. These self-propelled (SP) AT guns were first employed as infantry support weapons in place of towed antitank guns. Later, due to a shortage of tanks, TDs sometimes replaced the former in offensive armored operations.[بحاجة لمصدر]

Early German-designed tank destroyers, such as the Marder I, employed existing light French or Czech design tank chassis, installing an AT gun as part of an armored, turret-less superstructure. This method reduced both weight and conversion costs. The Soviet Union later adopted this style of self-propelled anti-tank gun or tank destroyer. This type of tank destroyer had the advantage of a reduced silhouette, allowing the crew to more frequently fire from defilade ambush positions. Such designs were easier and faster to manufacture and offered good crew protection, though the lack of a turret limited the gun's traverse to a few degrees. This meant that, if the TD became immobilized due to engine failure or track damage, it could not rotate its gun to counter opposing tanks, making it an easy target. This vulnerability was later exploited by opposing tank forces. Late in the war, it was not unusual to find even the largest and most powerful tank destroyer abandoned on the field after a battle, having been immobilized by one high-explosive shell to the track or front drive sprocket.[بحاجة لمصدر]

US Army pre-war infantry support doctrines emphasized the use of tank destroyers with open-top fully rotating turrets, featuring less armor than the standard M4 Sherman tanks, but with more powerful cannon. A 76 mm long-barrel tank cannon was fitted to the Sherman-based M10 GMC and all-new design M18 designs, with the M18 being the fastest-moving American AFV of any type in World War II.[12] Late in 1944, the Sherman-origin M36 appeared, equipped with a 90 mm cannon. With rotating turrets and good combat maneuverability, American TD designs generally worked well, although their light armor was no match for enemy tank cannon fire during one on one confrontations. Another disadvantage proved to be the open, unprotected turret, and casualties from artillery fire soon led to the introduction of folding armor turret covers. Near the war's end, a change in official doctrine caused both the self-propelled tank destroyer and the towed antitank gun to fall from favor in U.S. service, increasingly replaced by conventional tanks or infantry level antitank weapons. Despite this change, the M36 tank destroyer continued in service, and was used in combat as late as the Korean War.[بحاجة لمصدر]

The third, and likely most effective kind of tank destroyer was the unturreted, casemate-style tank destroyer, known by the Jagdpanzer term in German service, or Samokhodnaya Ustanovka in Soviet service for their own designs. These generally featured a heavy gun mounted on an older or then-current tank chassis, with the gun pointing forward with a limited degree of traverse. Casemate tank destroyers often had the same amount of armour as the tanks they were based on. The removal of the turret allowed for greater room to mount a larger gun with a larger breech and leave room for crew. Many casemate tank destroyers either originated as, or were dual-purpose vehicles with the duty of a self-propelled gun, which share many (but usually not all) of the same features and layout. Some examples are the German Sturmgeschütz III – the most-produced German armored fighting vehicle of WW II — and the Soviets' SU-100, itself based on the T-34 tank's hull and drivetrain.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

المشاة

البنادق

Anti-tank rifles were introduced in some armies before the Second World War to provide infantry with a stand-off weapon when confronted with a tank assault. The intention was to preserve the morale of the infantry by providing a weapon that could actually defeat a tank. Anti-tank rifles were developed in several countries during the 1930s. By the beginning of WW2, anti-tank rifle teams could knock out most tanks from a distance of about 500 m, and do so with a weapon that was man-portable and easily concealed. Although the AT rifle performance was negated by the increased armor of medium and heavy tanks by 1942, they remained viable against lighter-armored and unarmored vehicles, and against field fortification embrasures.

Notable examples include the Finnish Lahti L-39 (which was also used as a sniper rifle during the Continuation War), the automatic Japanese Type 97 20 mm anti-tank rifle, the German Panzerbüchse 38, Panzerbüchse 39, the Polish wz.35 and the Soviet 14.5 mm PTRD and PTRS-41.

By 1943, most armies judged anti-tank rifles to lack combat effectiveness due to the diminished ability to penetrate the thicker armor of new tanks – the British Army had abandoned them by 1942 and the Wehrmacht by 1943, while the US Army never adopted the weapon, although the USMC used Boys anti-tank rifles in the Pacific Theater. However, the anti-tank rifle remained in Soviet use during the conflict due to the importance it occupied in its doctrine of anti-tank in-depth defense, first demonstrated during the defense of Moscow and again during the Kursk battles. This became particularly true later in the war when the Red Army assumed an almost constant offensive, and anti-tank in-depth defensive deployments were used for protecting flanks of the operational breakthroughs against German tactical counterattacks. By firing on the lighter armored infantry and support vehicles (e.g. artillery tractors) the anti-tank rifle units helped to separate the supporting infantry (panzergrenadiers) and artillery of the German tanks and so forced the tanks to halt at short distances from the concealed anti-tank guns leaving them exposed to fire from larger, longer ranged anti-tank guns. PTRS-41 semi-automatic anti-tank rifles were also used for sniping since an additional tracer round enabled rapid fire adjustment by the gunner. Although optical sniper scopes were tried with the PTRS-41, the weapons proved too inaccurate at sniping distances (800 m or more), and the recoil too much for effective use of the scopes.

الصواريخ

British PIAT

The development of light, man-portable, anti-tank weapons increased during the Second World War. Most were based on the Munroe effect which led to the development of the high-explosive shaped charge. These weapons were called high-explosive anti-tank (HEAT). The destructive effect relies fully on the kinetic energy of the explosion rather than the ballistic speed of the round on the damage inflicted to the armor. The effect was also concentrated and could penetrate more armor for a given amount of explosives. The first HEAT rounds were rifle grenades, but better delivery systems were soon introduced: the British PIAT was propelled in a manner similar to the spigot mortar with a blackpowder charge contained in the tailfin assembly, the US Bazooka and the German Panzerschreck used rockets, and the German Panzerfaust was a small recoilless gun. The HEAT warhead was retroactively used to give more power to smaller calibre weapons such as in the conversion of the otherwise limited German 37 mm PaK guns to fire a large shell, called Stielgranate 41, that fitted over the barrel rather than down in it, to a greater range than the Panzerschreck could manage.

The Hungarian 44M "Buzogányvető" was a successful unguided rocket used extensively in the Siege of Budapest.

PARS 3 LR with HEAT warhead of the German Army.

After the war, research on infantry anti-tank weapons continued, with most designers focused on two primary goals: first an anti-tank weapon that could defeat more heavily armored postwar tanks and fighting vehicles, and second a weapon lightweight and portable enough for infantry use.

الألغام والمتفجرات الأخرى

A statue of a Vietminh soldier holding a Lunge AT Mine. In Vietnamese the mine is called bom ba càng, literally means "three-clawed bomb".
Sticky bomb in production
  • Though unsophisticated, the satchel charge was an effective anti-tank weapon during World War II; the blast could sever the tracks of a tank, damage internal components or injure the crew.
  • Hawkins mine
  • The Wehrmacht employed the Goliath tracked mine, an unmanned demolition vehicle.
  • The Soviet Union employed anti-tank dogs during World War II, with very limited success; as a counterpart to the German Goliath the Teletank was used as a remote-controlled unmanned tank.
  • The Japanese forces employed suicide attacks with pole-mounted anti-tank mines dubbed lunge mines during late World War II.[13] In Vietnam, similar mines were called bom ba càng due to the three contact points at the head of each mine.

القنابل اليدوية

Regular fragmentation grenades were ineffective against tanks, so many kinds of anti-tank grenades were developed. These ranged from hollow charge designs (e.g., the British No. 68 AT Grenade), to ones that simply contained a lot of explosive (the British No. 73 Grenade). To increase their effectiveness, some grenades were designed so that they adhered to the tank either through an adhesive (sticky bomb) or with a magnet. The Germans used a magnetic grenade, the Hafthohlladung to ensure that the shaped charge would fire at the optimal 90° angle to the armor.

There was also a special type of grenade called the Nebelhandgranaten or Blendkörper ("smoke hand grenades"), which was supposed to be smashed over an air vent and fill the tank with smoke, widely used by both sides in World War II. Molotov cocktails also saw much use, especially in the Winter War, early tanks (such as the T-26) being very vulnerable to them, but later tanks required a well-thrown bottle directly over the engine compartment to have any effect at all.

On the whole, thrown anti-tank weapons suffered from a variety of drawbacks. In addition to the inherently short range, they required careful aim to be effective, and those that relied on explosive force were often so powerful that the user had to take cover immediately.

Additionally, with hand-thrown grenades, the requirement for the attacker to get close to the tank made the attacker exceptionally vulnerable to counter-attack from the tank (typically by machine gun), or from infantry – mounted or dismounted troops – accompanying the tank. However, if the attacker were very low to the ground, and in very close proximity to the tank – for instance 30 feet (9.1 meters) or less – it might be impossible for the tank crew to see the attacker.[14]

التكتيكات

A Finnish soldier with a Molotov cocktail in the 1939–40 Winter War.

Anti-tank tactics developed rapidly during the war but along different paths in different armies based on the threats they faced and the technologies they were able to produce. Very little development took place in UK because weapons available in 1940 were judged adequate for engaging Italian and German tanks during most of the North African Campaign. Its experience therefore failed to influence the US Army's anti-tank doctrine prior to 1944. From 1941, German anti-tank tactics developed rapidly as a result of being surprised by the previously unknown Soviet tank designs, forcing introduction of new technologies and new tactics. The Red Army was also faced with a new challenge in anti-tank warfare after losing most of its tank fleet and a considerable part of its anti-tank capable cannons.

Anti-tank tactics during the war were largely integrated with the offensive or defensive posture of the troops being supported, usually infantry. Most anti-tank tactics depend on the range effectiveness of various weapons and weapon systems available. These are divided as follows:

  • Operational range over the horizon (20–40 km range)
    Bomber aircraft and long range artillery
  • Tactical staging areas (7–20 km range)
    Ground attack aircraft and field artillery including MRLs
  • Tactical zone forming-up area and rear combat zone (2–7 km range)
    Heavy anti-tank guns and mortars
  • Tactical forward combat zone (1–2 km range)
    Anti-tank guns and tanks deployed in defense
  • Engagement distance (200–1000 m range)
    Mines and anti-tank rifles
  • Close combat distance (25–200 m range)
    Infantry anti-tank weapons

Ground-to-air cooperation was not yet systematic in any army of the period, but given sufficient warning ground attack aircraft could support ground troops even during an enemy attack in an attempt to interdict the enemy units before they come into tactical combat zone. Various bomb loads can be used depending on what type of tank unit is engaged in at the time or who its accompanying troops are. This is an indirect form of anti-tank warfare where the tanks are denied the opportunity to even reach combat.

Field artillery was particularly effective in firing against tank formations because although they were rarely able to destroy a tank by direct penetration, they would severely crater the area preventing the tanks from moving therefore causing them to become nearly stationary targets for the ground attack aircraft, or disrupting the enemy schedule and allowing own troops more time to prepare their defense.

Examples of Czech hedgehogs deployed on the Atlantic Wall in the vicinity of Calais.

Anti-tank defense proper was by 1942 designed in First World War fashion with several prepared trench lines incorporating anti-tank weapons of different abilities. Depending on terrain and the available line-of-sight, the longer-ranged guns could begin to fire on approaching tanks from as far as 2 kilometers, which was also the range at which German Panther and Tiger tank gunners were trained to fire. Anti-tank guns were usually deployed to cover terrain more suitable for tanks, and were protected by minefields laid at about 500 meters to 1 kilometer from their positions by combat engineers. In the Red Army the anti-tank rifle units would be positioned throughout the forward trench line and would engage the lighter tanks and any other vehicles, such as infantry half-tracks in an attempt to separate them from the tanks. The anti-tank guns deployed further back would often hold their fire until enemy tanks were within the most effective range for their ammunition. Where there were insufficient anti-tank weapons, engineers would construct anti-tank obstacles such as dragon's teeth or czech hedgehog.

Towed anti-tank guns were thought to be the primary means of defeating tanks. At the battle of Kursk for example, the Red Army deployed more artillery regiments than infantry regiments and towed gun densities reached over 20 guns per kilometer of defended tactical zone. A towed gun was much cheaper than a tank and could be concealed in a shallow position. When time allowed, dugouts with strong overhead cover could be constructed. Guns deployed on reverse slopes and in flanking positions could take a toll of attacking tanks. However, gun crews were vulnerable to artillery, mortar HE fire and enemy infantry. Their positions had to be carefully selected and once engaged, they generally could not redeploy. Experience strongly suggested that towed AT guns were less effective than self-propelled AT weapons and took heavier casualties.

The tactic of ambushing enemy armor at grazing shot distances was perfected during World War 2. Some combatants, like the Soviet Red Army, doctrinalized it and used it to engage heavy German armor at optimal distances and angles.

Self-propelled anti-tank guns were rare at the beginning of WW2, although the Belgian Army deployed a few T.15 tank destroyers and the French army was developing several wheeled and tracked designs. The advantages of mobility and even thin armor protection were so compelling that most armies were using self-propelled AT guns by mid-war. Examples of these weapons included the US M10, German Jagdpanzer IV, and Soviet SU-85.

هجوم المشاة القريب

Panzerfaust armed German soldiers on the Eastern Front, 1945.

The tank is still vulnerable to infantry, especially in close country or built-up areas. Rough terrain may expose the floor armor, and high ground such as multi-story buildings may expose the top armor. Their large size and loud noise can allow enemy infantry to spot, track and evade tanks until an opportunity presents itself for counter-attack.

Because tank crews have limited visibility from inside the tank, infantry can get close to a tank given enough concealment and if the hatches are closed. If tank crewmen unbutton for better visibility they become vulnerable to small arms fire, grenades and molotov cocktails. An infantryman cannot be targeted by a tank's main gun when close, as it cannot depress sufficiently. Close defense weapons such as pistol ports, hull-, coaxial- and pintle-mounted machine guns gave them some protection however.

Whilst many hand-held infantry anti-tank weapons will not penetrate the front armor of a tank, they may penetrate the less heavily armored top, rear, and sides. Anti-tank weapons can damage the tracks or running gear to inflict a mobility kill. Early WWII tanks had open vision slits that could be fired through to harm the crew. Later tanks' slits had thick glass, and sights and periscopes which could still be damaged with powerful small arms such as anti-tank rifles and heavy machine guns, hampering the crew. If all else fails, the hatch could also be forced open and grenades thrown inside, although later tank designs often have hatches designed to be difficult to open from the outside.

Tanks were also vulnerable to hand-placed anti-tank mines. Infantry have even immobilized tanks using a set of plates covered with leaves and dirt as dummy mines – the ruse being augmented by the crew's obscured vision – infantry can then attack the stopped tank. This tactic was taught to the British Home Guard during World War II since they were not often provided with long-range anti-tank weapons.[15]

In some cases in World War II, a tactic of some infantry was to run directly up to a tank, avoiding its main and machine guns, and pour petrol over and into the tank and light it, sometimes blocking the exit, burning the crew alive.[بحاجة لمصدر]

In the Japanese army, the use of satchel charges and pole charges was widespread. Although the charges could knock out any allied tank, the tactic was extremely close-range and the sappers were vulnerable to allied weapons.

التفجير الإنتحاري

Chinese suicide bomber putting on an explosive vest made out of Model 24 hand grenades to use in an attack on Japanese tanks at the Battle of Taierzhuang.

Chinese troops in the Second Sino-Japanese War used suicide bombing against Japanese tanks. Chinese troops strapped explosives like grenade packs or dynamite to their bodies and threw themselves under Japanese tanks to blow them up.[16] This tactic was used during the Battle of Shanghai, where a Chinese suicide bomber stopped a Japanese tank column by exploding himself beneath the lead tank,[17] and at the Battle of Taierzhuang where dynamite and grenades were strapped on by Chinese troops who rushed at Japanese tanks and blew themselves up.[18][19][20][21][22][23] During one incident at Taierzhuang, Chinese suicide bombers obliterated four Japanese tanks with grenade bundles.[24][25]

North Korean tanks were attacked by South Koreans with suicide tactics during the North Korean invasion of the South.[26][27]

American tanks at Seoul were attacked by North Korean suicide squads,[28] who used satchel charges.[29] A North Korean soldier who exploded an American tank with a suicide bomb named Li Su-Bok is hailed as a hero in North Korean propaganda.[30]

During the Iran–Iraq War, the Iranian Mohammad Hossein Fahmideh blew himself up under an Iraqi tank with a grenade.

According to the Sudanese writer Mansour Al-Hadj, Sudanese jihadists were trained to attack enemy tanks by suicide bombing them.[31]

الحرب الكورية

The initial assault by North Korean KPA forces during the Korean War was aided by the use of Soviet T-34-85 tanks.[32] A North Korean tank corps equipped with about 120 T-34s spearheaded the invasion. These drove against a ROK Army with few anti-tank weapons adequate to deal with the Soviet T-34s.[33] The North Korean tanks had a good deal of early successes against South Korean infantry, elements of the 24th Infantry Division, and the United States built M24 Chaffee light tanks that they encountered.[34][35] For the UN forces, aerial interdiction by ground attack aircraft was the only means of slowing the advancing North Korean armor. The tide turned in favour of the United Nations forces in August 1950 when the North Koreans suffered major tank losses during a series of battles in which the UN forces brought heavier equipment to develop an anti-tank role, including U.S. M4A3 Sherman medium tanks backed by M26 Pershing heavy tanks, along with British Centurion, Churchill, and Cromwell tanks.[36]

In the U.S., the 2.36 in (60 mm) M9A1 bazooka rocket launcher evolved into the more powerful 3.5 in (89 mm) M20 "Super Bazooka", which was used to good effect against North Korean armored spearheads during the Korean War. However, the M20 proved difficult and cumbersome to portage on foot over long distances. The Anti-Tank Aircraft Rocket, developed by the navy, also proved effective against North Korean tanks.

الحرب الباردة

In the Cold War era, HEAT became an almost universal choice outside of artillery and tank units. The British had developed the High-explosive squash head (HESH) warhead as a weapon for attacking fortifications during the war, and found it surprisingly effective against tanks. Although these systems allowed infantry to take on even the largest tanks, and, like HEAT, its effectiveness was independent of range, infantry typically operated at short range. A major influence in anti-tank warfare came with the development and evolution of anti-tank guided missiles (ATGM) that could be fired by infantry operators, from ground vehicles and by aircraft. Increasing use of combined arms tactics allowed the attacking infantry to suppress the anti-tank crews effectively, meaning that they could typically get off only one or two shots before being countered or forced to move.

الطائرات

ثابتة الأجنحة

Cold War aircraft, such as the A-10 Thunderbolt II and SU-25 Frogfoot, have been specifically built for close air support, including tank destruction. They can use a variety of weaponry, including large-caliber anti-tank autocannons or rotary autocannons, air-to-surface missiles (e.g. AGM-65 Maverick), volleys of unguided rockets, and various bombs (unguided or laser-guided and with or without submunitions such as HEAT bomblets, an example of which would be the CBU-100 Cluster Bomb).

المروحيات

AH-64 Apache, an anti-tank helicopter with eight AGM-114 Hellfire missiles

Guided anti-tank missiles were first used in a helicopter-borne role by the French in the late 1950s, when they mounted SS.11 wire-guided missiles on Alouette II helicopters.[37] Initially there were many teething problems; however, the possibilities, such as providing the ability to attack the more lightly armored top of the tank, were clear.

Although putting weapons on helicopters (probably) dates back to 1955 with the Bell 47, the first specific attack helicopter that went into mass production was the Bell AH-1 Cobra in 1966. The AH-1 was equipped with TOW missiles in 1973 for anti-tank ability.[38]

The anti-tank helicopter armed with ATGWs (Anti-Tank Guided Weapons) or anti-tank cannons is one of the biggest threats to a modern tank. The helicopter can position itself where it is not easily seen from a tank and then attack from any quarter, exposing the weaker parts of the tank's armor. The limited visibility from a closed-down tank also makes sighting a helicopter harder.

Most helicopter-launched ATGWs have sufficient range that they can under the right conditions be fired at a range too long for the tank to retaliate with its own weapons. This may change with the Israelis fielding the 105 mm and 120 mm LAHAT missiles that can be fired from the main gun of the Merkava MBT. With both anti-tank and anti-helicopter role, it does level the playing field somewhat. The Indian Arjun tank has also been modified to fire this missile. The People's Republic of China has developed 100 mm gun-launched missiles based on Russian designs such as the GP2 (based on the Russian Bastion). It has been reported to have successfully engaged aerial targets, and is an anti-tank missile. Similar missiles are available for Chinese tanks equipped with the 105 mm gun. The Russians have also displayed a similar if more advanced system in the Reflex. The system involves an automatic targeting of an aerial/land target instigated by a laser warning system.

المدفعية

In the last thirty years, however, a variety of artillery projectiles have been developed specifically to attack tanks. These include laser-guided projectiles, such as the US's Copperhead Cannon Launched Guided Projectile (CLGP), which increases the chances of a direct hit. Some of these CLGPs (including the Copperhead) have HEAT warheads instead of common HE.

Guided and unguided scatter munitions and submunitions have also been developed: one artillery shell containing several smaller munitions designed to attack a tank. A six-gun battery might be able to fire several hundred submunitions in a minute or two.

In one form, a shell bursts in the air above one or more tanks and several shaped charge (HEAT) or high-explosive dual-purpose (HEDP) bomblets or grenades rain down. Any that hit a tank have a good chance to cause damage, since they are striking thin top armor.

Another form scatters a number of small anti-tank mines in a tank's path, which probably will not penetrate the armor but can damage a track, leaving the tank immobile and vulnerable.

More sophisticated are submunitions with a homing ability. Once again the shell explodes above the tank position and dispenses several submunitions. The munitions contain some circuitry to identify tanks, such as IR or millimeter radar. When a tank is identified, a rocket propellant is fired to shoot the projectile at the tank. These munitions will often descend by parachute, to allow time for target acquisition and attack.

All of the above, but the CLGP can be fired from medium (105 mm, 120 mm, and 125 mm) tank guns and medium (122 mm, 130 mm, 152 mm, and 155 mm) tube artillery. There has also been development of medium and large (81 mm, 82 mm, and 120 mm) guided mortar munitions with both internal (e.g., IR or radar) or external (i.e., laser designator) guidance.

الصواريخ

The development of the wire-guided missile, or Anti-Tank Guided Weapon (ATGW) systems came into use in the late 1950s and 1960s that could defeat any known tank at ranges beyond that of the guns of the accompanying infantry. The United Kingdom, France, and other NATO countries were among the first to develop such weapons (e.g., the Malkara missile by the United Kingdom and Australia in 1958). The Soviet Union, and now Russia, put extensive development into these weapons; the first man-portable model to enter service was the AT-3 in 1961. The United States was one of the last, coming up with the BGM-71 TOW in 1970.

For a time, it appeared that the tank was a dead end. A small team of infantry with a few missiles in a well-concealed position could take on a number of the largest and most expensive tanks. In the 1973 Yom Kippur War, Soviet first-generation wire-guided missiles employed by the Egyptian forces inflicted heavy casualties on Israeli tank units, causing a major crisis of confidence for tank designers.

Active protection systems, such as the Russian Arena active protection system, are starting to be more common, with similar systems such as the Israeli Iron Fist active protection system. The tank may be on a comeback because of active defense systems, which attack missiles in mid-air. This may allow the tank to be competitive on the battlefield once again.

المدافع

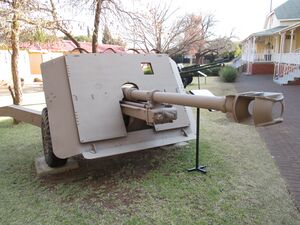

South African tank gun retrofitted to an OQF 17 pdr carriage.

Anti-tank guns continued to be used in a number of conflicts past World War 2 around the world, such as the Six-Day War[39] and the South African Border War.[40] Soviet anti-tank guns in particular were exported to at least eighteen other countries after being retired from service and have continued to see action.[41]

Rather than developing specialized anti-tank artillery, some nations, including South Africa and Israel, grafted obsolete tank guns onto towed carriages for use in that role.[42]

الألغام

Owing to greater sophistication of the tank, and engineering support available to tank units to detect and negate minefields, a considerable effort was made to develop more effective anti-tank mine technology in the effort to deny tank-led formations maneuver space, or channel their movement into unsuitable avenues of approach.

المشاة

Australian Army Land Rover Series 2 "gunbuggy" with an M40 recoilless rifle used in the anti-tank role

The search for a more suitable, longer-range delivery system took up much of the immediate post-war era. The US invested in the recoilless rifle, delivering a widely used 75 mm design, and less common 90 mm and 106 mm designs (the latter was usually mounted rather than infantry-handled). The 106 mm formed the basis of a dedicated anti-tank vehicle, the Ontos tank, which mounted six 106 mm rifles. The Australian Army also fitted M40 recoilless rifles to Land Rover Series 2 vehicles for use in an anti-tank role. The Soviet Union also built recoilless rifles in various calibers intended to be used as anti-tank weapons, most commonly 73 mm, 82 mm, and 110 mm (only the 73 mm remains in service with the Russian military today, though the other two can be found all over the world due to Soviet military aid during the Cold War). The British used a 120 mm (4.7 in) design to equip infantry units, the BAT series, which served from the 1950s until replaced by MILAN, but it was generally too heavy for infantry use and had to be towed by, or mounted on, a vehicle for maneuverability.

The Soviets developed the RPG-2 from the German Panzerfaust 150. Further development led to the ubiquitous RPG-7. The RPG-7 is one of the most widely used anti-tank weapons, favored most by soldiers of irregular militaries. The RPG-7 could fire a range of different warheads, from thermobaric warheads to one HEAT or tandem-charge HEAT warheads against explosive reactive armor equipped tanks. The RPG-7 has a long combat history, and has been used in most wars from the Vietnam War all the way to present day wars. In modern times, the RPG-7 is generally used in an urban environment, which would enhance their effectiveness due to the close ranges involved. However, the aging RPG-7 has evolved to the even more potent RPG-29 which has proven its worth in conflicts in the Middle East, damaging the Merkava IV,[43] Challenger 2[44] and M1 Abrams[45] main battle tanks.

Soviet RPG-7

In the 1960s, the U.S. Army adopted the M72 LAW rocket, a lightweight, collapsible rocket launcher with the ability to penetrate moderate thicknesses of enemy armor. During the Vietnam War, the weapon was used primarily against NVA and Viet Cong defensive works and emplacements, as there were few encounters against enemy armor. Overall, the LAW was regarded as a success, though its ignition system frequently suffered from misfires in the heat and humidity of Vietnamese jungles. The LAW has since been replaced by the AT4 (M136).

التكتيكات

Changes in the anti-tank tactics since the Second World War mostly came from the appearance of new technologies, and increased firepower of the infantry mounted on fully armored vehicles. The most profound anti-tank technology has been the guided missile, which when coupled with a helicopter can mean that tanks can be engaged beyond ground line of sight (LOS), and at one of their most vulnerable aspect, the top armor.

الفعالية

The effect of anti-tank warfare is to destroy or damage enemy tanks, or to prevent enemy tanks, and their supporting troops from maneuvering, which is the primary ability of a tank. In the US Army the degree of effect by an anti-tank weapon on a vehicle is referred to as either "mobility kill", "firepower kill", and "catastrophic kill". In a mobility kill (M-kill), the vehicle loses its ability to move, for example, by breaking a tank track or bogey or damaging the engine; the targeted tank is then immobile, but may retain full use of its weapons (large cannon, heavy machine gun and smaller machine guns) and still be able to fight to some extent. However, a mobility-killed tank is a relatively vulnerable target to RPG or Molotov cocktail attacks, and it cannot maneuver to better firing positions.

A firepower kill (F-kill) is some loss of the vehicle's ability to fire its weapons. For example, a tank may be hit on its main cannon, making the main gun inoperable. M-kills and F-kills may be complete or partial, the latter corresponding to reductions in a target's ability to move or fire. A catastrophic kill (K-kill) removes the tank's ability to fight completely; this may entail complete destruction of the tank or disabling or killing the crew.

Two damaged tanks with their tracks visibly destroyed and a damaged Willy's Jeep displaying the 6th Armoured triangular flash
South African Sherman tanks disabled in the fight to take the Perugia Highlands in Italy 1944 – World War 2.

التوجهات الحالية

Although the future of the tank was questioned in the 1960s due to the development of the anti-tank missiles, increases in thickness and composition of armor, and other improvements in tank design meant that infantry operated systems were no longer sufficiently effective by the 1970s, and the introduction of Chobham armor by the British Army and reactive armor by the Soviet Army forced the HEAT rounds to be increased in size, rendering them less portable.

Weapon systems like the RPG-29 Vampir and FGM-148 Javelin use a Tandem warhead where the first warhead disables reactive armor, while the second warhead defeats the shell armor by means of a HEAT or a shaped charge. Today the anti-tank role is filled with a variety of weapons, such as portable top attack artillery ammunition and missiles, larger HEAT missiles fired from ground vehicles and helicopters, a variety of high velocity autocannon, and ever-larger and heavier tank guns. One of the first lessons of the 2006 Israel-Lebanon conflict is the effectiveness of portable rocket propelled grenades, in particular, Russian-made RPG-29, and Metis-M, Kornet and European MILAN anti-tank missiles.

انظر أيضاً

الهوامش

المصادر

  1. ^ "WW1 Anti-Tank rifles". Retrieved 10 October 2014.
  2. ^ Maj. Frederck Myatt M.C., Modern Small Arms, Crescent Books, New York, NY, 1978, pp,228–29
  3. ^ Macksey, K., Tank vs Tank, Grub Street, London, 1999, p.32
  4. ^ John Norris, Anti-tank weapons, p.7
  5. ^ Terry Gander and Peter Chamberlain, Small Arms, Artillery and Special Weapons of the Third Reich, MacDonald and Janes, London, 1978, p.107
  6. ^ Dr. J.R. Crittenden, "RPG-The Devil's Finger", Shotgun News, Nov. 20, 2003, P.30.
  7. ^ JOURNAL OF BATTLEFIELD TECHNOLOGY, VOL 1, NO 1, MARCH 1998, SOME METALLURGICAL ASPECTS OF SHAPED CHARGE LINERS, Alistair Doig, p.1.
  8. ^ Chant, Christoper, How Weapons Work, Marshal Cavendish, Ltd,, Hong Kong, 1980, p.50.
  9. ^ Francis, Devon E., Mr. Piper and His Cubs, Iowa State University Press, ISBN 0-8138-1250-X, 9780813812502 (1973), p. 117.
  10. ^ Gantt, Marlene, Riding His Piper Cub Through The Skies Over France, Bazooka Charlie Fought A One-man War, World War II Magazine, September 1987
  11. ^ Fountain, Paul, The Maytag Messerschmitts, Flying Magazine, March 1945, p. 90
  12. ^ Zaloga, Steven J (27 April 2004), M18 Hellcat Tank Destroyer 1943–97, p. 14, ISBN 1-84176-687-9
  13. ^ Lone Sentry: New Weapons for Jap Tank Hunters (U.S. WWII Intelligence Bulletin, March 1945)
  14. ^ "b. Defense Against Enemy Armored and Tracked Vehicles," in "3-9. Defensive Employment" in "Section II. Tactical Employment," in "Chapter 3: Employment of Hand Grenades" in U.S. Army Field Manual No. 3-23.30: Grenades and Pyrotechnic Signals, September 1, 2000, Department of the Army, Washington, DC, retrieved February 7, 2022
  15. ^ Dora_Piper; Piper, Leonard (8 April 2004). "Reminiscences of a Hampshire Home Guard - Part 2". WW2 People's War. BBC. Archived from the original on Feb 17, 2009. Retrieved 20 July 2006.
  16. ^ Schaedler, Luc (2007). Angry Monk: Reflections on Tibet: Literary, Historical, and Oral Sources for a Documentary Film (PDF) (Thesis Presented to the Faculty of Arts of the University of Zurich For the Degree of Doctor of Philosophy). University of Zurich, Faculty of Arts. p. 518. Archived from the original (PDF) on 10 June 2015.
  17. ^ Harmsen, Peter (2013). Shanghai 1937: Stalingrad on the Yangtze (illustrated ed.). Casemate. p. 112. ISBN 978-1612001678.
  18. ^ "Chinese Tank Forces and Battles before 1949, Chapter One: PLA Tank Forces In Its Infancy". Tanks! E-Magazine (4). Summer 2001. Archived from the original on 7 August 2014.
  19. ^ Xin Hui (8 January 2002). "Xinhui Presents: Chinese Tank Forces and Battles before 1949". Newsletter 1-8-2002 Articles. Archived from the original on 8 August 2014.
  20. ^ Ong, Siew Chey (2005). China Condensed: 5000 Years of History & Culture (illustrated ed.). Marshall Cavendish. p. 94. ISBN 9812610677.
  21. ^ Olsen, Lance (2012). Taierzhuang 1938 – Stalingrad 1942. Clear Mind Publishing. ISBN 978-0-9838435-9-7. Archived from the original on 26 April 2014 – via Numistamp.
  22. ^ "Storm over Taierzhuang 1938 Player's Aid Sheet" (PDF). grognard.com. Retrieved 24 April 2014.
  23. ^ Ong Siew Chey (2011). China Condensed: 5,000 Years of History & Culture (reprint ed.). Marshall Cavendish International Asia Pte Ltd. p. 79. ISBN 978-9814312998.
  24. ^ International Press Correspondence, Volume 18. Richard Neumann. 1938. p. 447.
  25. ^ Epstein, Israel (1939). The people's war. V. Gollancz. p. 172.
  26. ^ International Journal of Korean Studies. Korea Society and the International Council on Korean Studies. 2001. p. 40.
  27. ^ Carter Malkasian (29 May 2014). The Korean War. Osprey Publishing. pp. 22–. ISBN 978-1-4728-0994-0.[dead link]
  28. ^ T. I. Han (1 May 2011). Lonesome Hero: Memoir of a Korea War POW. AuthorHouse. pp. 69–. ISBN 978-1-4634-1176-3.
  29. ^ Charles R. Smith (2007). U.S. Marines in the Korean War. Government Printing Office. pp. 183–. ISBN 978-0-16-087251-8.
  30. ^ Sonia Ryang (16 January 2009). North Korea: Toward a Better Understanding. Lexington Books. pp. 78–. ISBN 978-0-7391-3207-4.
  31. ^ "Reformist Writer Mansour Al-Hadj: In My Youth, I Was Taught to Love Death". MEMRI. aafaqmagazine.com. November 19, 2009.
  32. ^ Stokesbury 1990, pp. 14, 43.
  33. ^ Stokesbury 1990, p. 39.
  34. ^ Zaloga & Kinnear 1996:36
  35. ^ Stein 1994, p. 18.
  36. ^ Stokesbury 1990, pp. 182–184.
  37. ^ Helicopters at War, Blitz Editions, p. 63, ISBN 1-85605-345-8.
  38. ^ Verier, Mike. Bell AH-1 Cobra. Osprey Publishing, 1990. ISBN 0-85045-934-6.
  39. ^ Oren, Michael (2003). Six Days of War: June 1967 and the Making of the Modern Middle East. Presidio Press. pp. 192–194. ISBN 978-0345461926.
  40. ^ "Ratel teen tenk en". Port Elizabeth: International Veterans' Association/South African Forces Club. 2011. Archived from the original on 28 July 2012.
  41. ^ "Trade Registers". Armstrade.sipri.org. Retrieved 2013-06-20.
  42. ^ Baasjan howitzer (RSA), South African Armour Museum, Bloemfontein: South African National Defence Force, 2014
  43. ^ Schiff, Ze'ev (6 August 2006). "Hezbollah anti-tank fire causing most IDF casualties in Lebanon". Haaretz. Archived from the original on 31 August 2006. Retrieved 8 January 2022.
  44. ^ Rayment, Sean (12 May 2007). "MoD kept failure of best tank quiet". The Daily Telegraph. Archived from the original on 2007-10-15. Retrieved 8 January 2022.
  45. ^ Gordon, Michael R.; Rubin, Alissa J. (21 May 2008). "Operation in Sadr City Is an Iraqi Success, So Far". The New York Times. Archived from the original on 2013-11-14. Retrieved 8 January 2022.

المراجع

وصلات خارجية
