ونگ لونگ 2

Pterodactyl II

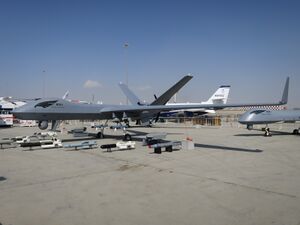

Wing Loong II side view.jpg
Wing Loong II at Dubai Air Show 2017
الوظيفة MALE UCAV
المـُصـَنـِّـع Chengdu Aircraft Industry Group
صممها Chengdu Aircraft Design Institute
أول تحليق February 2017[1]
قـُدِّمـَت 2017
الوضع In service
المستخدم الرئيسي People's Liberation Army Air Force
أنتجت 2015-present
تطورت من CAIG Wing Loong

The Chengdu Wing Loong II (صينية: 翼龙 II؛ پن‌ين: Yìlóng Èr؛ حرفياً: 'Pterodactyl II'�), military designation GJ-2, is an unmanned aerial vehicle (UAV) capable of remotely controlled or autonomous flight developed by the Chengdu Aircraft Industry Group in the People's Republic of China. Intended for use as a surveillance and aerial reconnaissance and precision strike platform, Chengdu unveiled the concept of Wing Loong II at the Aviation Expo China in Beijing in September 2015. Wing Loong II has long range strike capability with a satellite link.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Development

The prototype of the Wing Loong II was presented for the first time to the public during the Airshow China exhibition, held in Zhuhai from 1-6 November, 2016.[2]


Design

Wing Loong II front view, Dubai Air Show 2017

Wing Loong II UAV MALE is an enlarged version of Wing Loong I with longer body and wider wing span. It has a slender fuselage, V-tail and ventral fin. The aircraft features retractable landing gear, including two main wheels under the fuselage and one single wheel under the nose. Each wing has three Hardpoints under the wings with capability of carrying bombs, rockets or air-to-surface missiles. A satellite communications antenna is situated on top front surface of the fuselage, offering long range data transmission between the UAV and the ground station.[2]

Comparison

Comparison of Chinese military UAVs[3][4][5]
Variant Armaments Takeoff weight Engine type Maximum cruise speed Operational endurance
CH-1 No 220 kg Piston 140 km/h 6 hours
CH-2 No 220 kg Piston 160 km/h 8 hours
CH-3 Yes, 80 kg 650 kg Piston 220 km/h 12 hours
CH-4 Yes, 345 kg 1330 kg Piston 180 km/h 30 hours for recon / 12 hours for strike
CH-5 Yes, 1000 kg 3300 kg Turboprop 220 km/h 60 hours for recon / 30 hours with 8 AR-1 missiles
GJ-1 (Wing Loong I) Yes, 200 kg 1100 kg Piston 280 km/h 20 hours
GJ-2 (Wing Loong II) Yes, 480 kg 4200 kg Turboprop 370 km/h 32 hours / 20 hours at max speed
Wing Loong-10 Yes, 400 kg 3200 kg Turbojet 370 km/h 32 hours

Variants

Export military version

  • Wing Loong II: An upgraded variant of the Wing Loong, with provisions for up to twelve air-to-surface missiles.[6][7][8]

Chinese domestic military version

  • GJ-2: Chinese military version of Wing Loong II. Distinguished by the lack of winglets. Officially entered service with the PLAAF in November 2018.[9]

Civilian version

  • Wing Loong 2H: Emergency communication response variant, equipped with synthetic aperture radar and optoelectronic pod which is able to relay and amplify telecommunication signals. The Wing Loong 2H debuted at July 2021 when it was deployed to assist with rescue work in Central China's Henan Province after unprecedented heavy rainfall flooding, providing a stable communication signal that can be directly used by normal phones with areas of over 50 square kilometers.[10]

Operational history

The Wing Loong II is used by UAE to perform airstrikes against the Government of National Accord in the Libyan civil war. The GNA received 12 Bayraktar TB2s in two batches between May and July. At least half of them have been destroyed during LNA airstrikes using Wing Loong IIs; the second batch delivered in July was to replace the losses of the first.[11][12] As June 2020, a total of 6 Wing Loong IIs have been reported shot down or lost in Libya, all operated by the LNA.[13] One was allegedly shot down by a laser: if this was true then it was the first time in history that a laser weapon shot down a combat vehicle.[14]

An investigation led by BBC Africa Eye and BBC Arabic Documentaries revealed that the UAE used Wing Loong II drones to fire Chinese Blue Arrow 7 missiles at a military academy in Libya's capital, Tripoli, in January 2020, killing 26 unarmed cadets. The drone was operated from Libya's Al-Khadim air base which has been under the control of the UAE.[15]

During the 2021 Henan floods, because of the interruption of communication in some areas due to flooding, Ministry of Emergency Management dispatched its emergency disaster-response Chengdu Wing Loong II (Wing Loong 2H) to the corresponding areas, and carried out nearly 6 hours of ground reconnaissance and communication relay services.[16][17]

Operators

Specifications

البيانات من Army Recognition[2]

المواصفات العامة

  • الطاقم: None
  • الطول: 11 m (36 ft 1 in)
  • الباع: 20.5 m (67 ft 3 in)
  • الارتفاع: 4.1 m (13 ft 5 in)
  • وزن الإقلاع الأقصى: 4,200 kg (9,259 lb)

الأداء

  • السرعة القصوى: 370 km/h (230 mph, 200 kn)
  • سرعة التجوال: 200 km/h (120 mph, 110 kn)
  • سرعة المراوغة: 150 km/h (93 mph, 81 kn)
  • التحمل: 32 hours
  • سقف الخدمة: 9,900 m (32,500 ft)

التسليح
Up to 480 kg[22][23]

إلكترونيات الطيران

  • Air to ground radars
  • GPS communication system
  • Electro-optical pod with day light and infrared cameras and sensors
  • Satellite link
  • Communications range: >1,000 km (620 mi) with SatCom, ~150 km (93 mi) from Ground Control Station (GCS)[24]


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
