جارنيت

For other uses, see جارنيت (توضيح).
گارنت
Garnet
Garnet Andradite20.jpg
العامة
التصنيفسيليكات منعزلة nesosilicates
الصيغة
(repeating unit)		The general formula X3Y2(SiO4)3
النظام البلوريIsometric
Crystal class
Space groupIa3d
التعرف
Colorvirtually all colors, blue is rare
Crystal habitRhombic dodecahedron or cubic
CleavageIndistinct
Fractureconchoidal to uneven
Mohs scale hardness6.5–7.5
Lusterزجاجي إلى لدائني
Streakأبيض
الجاذبية النوعية3.1 - 4.3
Polish lusterزجاجي إلى subadamantine [1]
الصفات البصريةSingle refractive, often anomalous double refractive [1]
Refractive index1.72 - 1.94
BirefringenceNone
PleochroismNone
Ultraviolet fluorescencevariable
سمات أخرىvariable magnetic attraction
التنويعات الرئيسية
PyropeMg3Al2Si3O12
AlmandineFe3Al2Si3O12
SpessartiteMn3Al2Si3O12
AndraditeCa3Fe2Si3O12
GrossularCa3Al2Si3O12
UvaroviteCa3Cr2Si3O12

الگارنت Garnet نوع من المعادن اللامعة الصلبة، له ستة أنواع رئيسية: المانداين، أندرادايت، جروسيولارايت، بيروب، سبسارتايت، ويوفاروفايت. يتكون الغارنيت منثاني أكسيد السليكون وعناصر أخرى كالألومنيوم والكالسيوم والحديد والمغنسيوم والمنجنيز. وتتراوح ألوانه بين الأحمر والبني والأسود والعديد من درجات الأصفر والأخضر. ويوجد الجارنيت بشكل رئيسي في الصخور المتحولة.

تستخدم بعض بلورات الغارنيت في صناعة المجوهرات. ويباع الغارنيت ذو اللون الأحمر القاني، وهو أحد أشهر أنواع الأحجار الكريمة شبه النفيسة، في الغالب على شكل ياقوت أحمر مقلد. ويستخدم معظم أنواع الغارنيت الأخرى مادة كاشطة للصقل والتلميع. ويتوافر الغارنيت في جميع أنحاء العالم. أما الأنواع شبه النفيسة فمصادرها الرئيسية وسط أوروبا وروسيا وجنوب إفريقيا.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

أصل الاسم

The word garnet comes from the 14th-century Middle English word gernet, meaning 'dark red'. It is borrowed from Old French grenate from Latin granatus, from granum ('grain, seed').[3] This is possibly a reference to mela granatum or even pomum granatum ('pomegranate',[4] Punica granatum), a plant whose fruits contain abundant and vivid red seed covers (arils), which are similar in shape, size, and color to some garnet crystals.[5] Hessonite garnet is also named 'gomed' in Indian literature and is one of the 9 jewels in Vedic astrology that compose the Navaratna.[6]


الخصائص الطبيعية

الخصائص

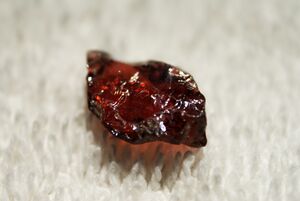

A sample showing the deep red color garnet can exhibit.

Garnet species are found in every colour, with reddish shades most common. Blue garnets are the rarest and were first reported in the 1990s.[7][8][9][10]

Garnet species' light transmission properties can range from the gemstone-quality transparent specimens to the opaque varieties used for industrial purposes as abrasives. The mineral's lustre is categorized as vitreous (glass-like) or resinous (amber-like).[3]

البنية البلورية

النموذج الجزيئي للگارنت.

Garnets are nesosilicates having the general formula X3Y2(SiO 4)3. The X site is usually occupied by divalent cations (Ca, Mg, Fe, Mn)2+ and the Y site by trivalent cations (Al3+, Fe3+, Cr3+) in an octahedral/tetrahedral framework with [SiO4]4− occupying the tetrahedra.[11] Garnets are most often found in the dodecahedral crystal habit, but are also commonly found in the trapezohedron habit as well as the hexoctahedral habit.[3] They crystallize in the cubic system, having three axes that are all of equal length and perpendicular to each other, but are never actually cubic because, despite being isometric, the {100} and {111} families of planes are depleted.[3] Garnets do not have any cleavage planes, so when they fracture under stress, sharp, irregular (conchoidal) pieces are formed.[12]

  • Crystal structure of pyrope garnet. White spheres are oxygen; black, silicon; blue, aluminium; and red, magnesium.

    Crystal structure of pyrope garnet. White spheres are oxygen; black, silicon; blue, aluminium; and red, magnesium.

  • Same view, with ion sizes reduced to better show all ions

    Same view, with ion sizes reduced to better show all ions

  • Silicon ion size exaggerated to emphasize silica tetrahedra

    Silicon ion size exaggerated to emphasize silica tetrahedra

Hardness

Because the chemical composition of garnet varies, the atomic bonds in some species are stronger than in others. As a result, this mineral group shows a range of hardness on the Mohs scale of about 6.0 to 7.5.[13] The harder species like almandine are often used for abrasive purposes.[14]

Magnetics used in garnet series identification

For gem identification purposes, a pick-up response to a strong neodymium magnet separates garnet from all other natural transparent gemstones commonly used in the jewelry trade. Magnetic susceptibility measurements in conjunction with refractive index can be used to distinguish garnet species and varieties, and determine the composition of garnets in terms of percentages of end-member species within an individual gem.[15]


مجموعة الگارنت endmember species

Pyralspite garnets - Aluminium in Y site

ألماندين Almandine

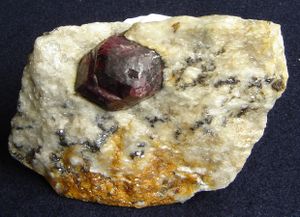

Almandine in metamorphic rock

Almandine, sometimes incorrectly called almandite, is the modern gem known as carbuncle (though originally almost any red gemstone was known by this name).[16] The term "carbuncle" is derived from the Latin meaning "live coal" or burning charcoal. The name Almandine is a corruption of Alabanda, a region in Asia Minor where these stones were cut in ancient times. Chemically, almandine is an iron-aluminium garnet with the formula Fe3Al2(SiO4)3; the deep red transparent stones are often called precious garnet and are used as gemstones (being the most common of the gem garnets).[17] Almandine occurs in metamorphic rocks like mica schists, associated with minerals such as staurolite, kyanite, andalusite, and others.[18] Almandine has nicknames of Oriental garnet,[19] almandine ruby, and carbuncle.[16]

Pyrope

Pyrope (from the Greek pyrōpós meaning "firelike")[3] is red in color and chemically an aluminium silicate with the formula Mg3Al2(SiO4)3, though the magnesium can be replaced in part by calcium and ferrous iron. The color of pyrope varies from deep red to black. Pyrope and spessartine gemstones have been recovered from the Sloan diamondiferous kimberlites in Colorado, from the Bishop Conglomerate and in a Tertiary age lamprophyre at Cedar Mountain in Wyoming.[20]

A variety of pyrope from Macon County, North Carolina is a violet-red shade and has been called rhodolite, Greek for "rose". In chemical composition it may be considered as essentially an isomorphous mixture of pyrope and almandine, in the proportion of two parts pyrope to one part almandine.[21] Pyrope has tradenames some of which are misnomers; Cape ruby, Arizona ruby, California ruby, Rocky Mountain ruby, and Bohemian ruby from the Czech Republic.[16]

Pyrope is an indicator mineral for high-pressure rocks. Mantle-derived rocks (peridotites and eclogites) commonly contain a pyrope variety.[22]

سپسارتين Spessartine

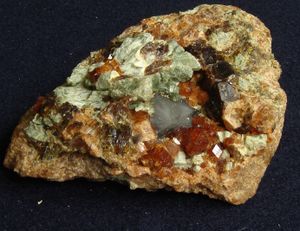

Spessartine (the reddish mineral)

Spessartine or spessartite is manganese aluminium garnet, Mn3Al2(SiO4)3. Its name is derived from Spessart in Bavaria.[3] It occurs most often in skarns,[3] granite pegmatite and allied rock types,[23] and in certain low grade metamorphic phyllites. Spessartine of an orange-yellow is found in Madagascar.[24] Violet-red spessartines are found in rhyolites in Colorado[21] and Maine.[citation needed]


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pyrope–spessartine (blue garnet or color-change garnet)

Blue pyrope–spessartine garnets were discovered in the late 1990s in Bekily, Madagascar. This type has also been found in parts of the United States, Russia, Kenya, Tanzania, and Turkey. It changes color from blue-green to purple depending on the color temperature of viewing light, as a result of the relatively high amounts of vanadium (about 1 wt.% V2O3).[9]

Other varieties of color-changing garnets exist. In daylight, their color ranges from shades of green, beige, brown, gray, and blue, but in incandescent light, they appear a reddish or purplish/pink color.[25]

This is the rarest type of garnet. Because of its color-changing quality, this kind of garnet resembles alexandrite.[26]

Ugrandite group - calcium in X site

أندراديت

Andradite (the black mineral)

Andradite is a calcium-iron garnet, Ca3Fe2(SiO4)3, is of variable composition and may be red, yellow, brown, green or black.[3] The recognized varieties are demantoid (green), melanite (black),[3] and topazolite (yellow or green). Andradite is found in skarns[3] and in deep-seated igneous rocks like syenite[27] as well as serpentines[28] and greenschists.[29] Demantoid is one of the most prized of garnet varieties.[30]

Grossular

Grossular garnet from Quebec, collected by Dr John Hunter in the 18th century, Hunterian Museum, Glasgow
Grossular garnets on display at the U.S. National Museum of Natural History. The green gem at right is a type of grossular known as tsavorite.

Grossular is a calcium-aluminium garnet with the formula Ca3Al2(SiO4)3, though the calcium may in part be replaced by ferrous iron and the aluminium by ferric iron. The name grossular is derived from the botanical name for the gooseberry, grossularia, in reference to the green garnet of this composition that is found in Siberia. Other shades include cinnamon brown (cinnamon stone variety), red, and yellow.[3] Because of its inferior hardness to zircon, which the yellow crystals resemble, they have also been called hessonite from the Greek meaning inferior.[31] Grossular is found in skarns,[3] contact metamorphosed limestones with vesuvianite, diopside, wollastonite and wernerite.

Grossular garnet from Kenya and Tanzania has been called tsavorite. Tsavorite was first described in the 1960s in the Tsavo area of Kenya, from which the gem takes its name.[32][33]

Uvarovite

Uvarovite

Uvarovite is a calcium chromium garnet with the formula Ca3Cr2(SiO4)3. This is a rather rare garnet, bright green in color, usually found as small crystals associated with chromite in peridotite, serpentinite, and kimberlites. It is found in crystalline marbles and schists in the Ural mountains of Russia and Outokumpu, Finland. Uvarovite is named for Count Uvaro, a Russian imperial statesman.[3]

Less common species

  • Calcium in X site
    • Goldmanite: Ca
      3      (V3+
      ,Al,Fe3+
      )
      2      (SiO
      4      )
      3
    • Kimzeyite: Ca
      3      (Zr, Ti)
      2      [(Si,Al,Fe3+
      )O
      4      ]
      3
    • Morimotoite: Ca
      3      Ti4+
      Fe2+
      (SiO
      4      )
      3
    • Schorlomite: Ca
      3      Ti4+

      2      (SiO
      4      )(Fe3+
      O
      4      )
      2
  • Hydroxide bearing – calcium in X site
    • Hydrogrossular: Ca
      3      Al
      2      (SiO
      4      )
      3-x      (OH)
      4x
      • Hibschite: Ca
        3        Al
        2        (SiO
        4        )
        3-x        (OH)
        4x         (where x is between 0.2 and 1.5)
      • Katoite: Ca
        3        Al
        2        (SiO
        4        )
        3-x        (OH)
        4x         (where x is greater than 1.5)
  • Magnesium or manganese in X site


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Knorringite

Knorringite is a magnesium-chromium garnet species with the formula Mg3Cr2(SiO4)3. Pure endmember knorringite never occurs in nature. Pyrope rich in the knorringite component is only formed under high pressure and is often found in kimberlites. It is used as an indicator mineral in the search for diamonds.[34]

مجموعة الگارنت البنيوية

  • Formula: X3Z2(TO4)3 (X = Ca, Fe, etc., Z = Al, Cr, etc., T = Si, As, V, Fe, Al)
    • All are cubic or strongly pseudocubic.
IMA/CNMNC
Nickel-Strunz
Mineral class		 Mineral name Formula Crystal system Point group Space group
04 Oxide Bitikleite-(SnAl) Ca3SnSb(AlO4)3 isometric m3m Ia3d
04 Oxide Bitikleite-(SnFe) Ca3(SnSb5+)(Fe3+O)3 isometric m3m Ia3d
04 Oxide Bitikleite-(ZrFe) Ca3SbZr(Fe3+O4)3 isometric m3m Ia3d
04 Tellurate Yafsoanite Ca3Zn3(Te6+O6)2 isometric m3m
or 432		 Ia3d
or I4132
08 Arsenate Berzeliite NaCa2Mg2(AsO4)3 isometric m3m Ia3d
08 Vanadate Palenzonaite NaCa2Mn2+2(VO4)3 isometric m3m Ia3d
08 Vanadate Schäferite NaCa2Mg2(VO4)3 isometric m3m Ia3d
Mineral name Formula Crystal system Point group Space group
Almandine Fe2+3Al2(SiO4)3 isometric m3m Ia3d
Andradite Ca3Fe3+2(SiO4)3 isometric m3m Ia3d
Calderite Mn+23Fe+32(SiO4)3 isometric m3m Ia3d
Goldmanite Ca3V3+2(SiO4)3 isometric m3m Ia3d
Grossular Ca3Al2(SiO4)3 isometric m3m Ia3d
Henritermierite Ca3Mn3+2(SiO4)2(OH)4 tetragonal 4/mmm I41/acd
Hibschite Ca3Al2(SiO4)(3-x)(OH)4x (x= 0.2–1.5) isometric m3m Ia3d
Katoite Ca3Al2(SiO4)(3-x)(OH)4x (x= 1.5-3) isometric m3m Ia3d
Kerimasite Ca3Zr2(Fe+3O4)2(SiO4) isometric m3m Ia3d
Kimzeyite Ca3Zr2(Al+3O4)2(SiO4) isometric m3m Ia3d
Knorringite Mg3Cr2(SiO4)3 isometric m3m Ia3d
Majorite Mg3(Fe2+Si)(SiO4)3 tetragonal 4/m
or 4/mmm		 I41/a
or I41/acd
Menzerite-(Y) Y2CaMg2(SiO4)3 isometric m3m Ia3d
Momoiite Mn2+3V3+2(SiO4)3 isometric m3m Ia3d
Morimotoite Ca3(Fe2+Ti4+)(SiO4)3 isometric m3m Ia3d
Pyrope Mg3Al2(SiO4)3 isometric m3m Ia3d
Schorlomite Ca3Ti4+2(Fe3+O4)2(SiO4) isometric m3m Ia3d
Spessartine Mn2+3Al2(SiO4)3 isometric m3m Ia3d
Toturite Ca3Sn2(Fe3+O4)2(SiO4) isometric m3m Ia3d
Uvarovite Ca3Cr2(SiO4)3 isometric m3m Ia3d
  • References: Mindat.org; mineral name, chemical formula and space group (American Mineralogist Crystal Structure Database) of the IMA Database of Mineral Properties/ RRUFF Project, Univ. of Arizona, was preferred most of the time. Minor components in formulae have been left out to highlight the dominant chemical endmember that defines each species.

الجارنيت الاصطناعي

ويُعرف أيضاً بإسم جارنيت أرضي نادر.

The crystallographic structure of garnets has been expanded from the prototype to include chemicals with the general formula A3B2(CO4)3. Besides silicon, a large number of elements have been put on the C site, including germanium, gallium, aluminum, vanadium and iron.[35]

Yttrium aluminium garnet (YAG), Y3Al2(AlO4)3, is used for synthetic gemstones. Due to its fairly high refractive index, YAG was used as a diamond simulant in the 1970s until the methods of producing the more advanced simulant cubic zirconia in commercial quantities were developed. When doped with neodymium (Nd3+), erbium or gadolinium YAG may be used as the lasing medium in Nd:YAG lasers,[36] Er:YAG lasers and Gd:YAG lasers respectively. These doped YAG lasers are used in medical procedures including laser skin resurfacing, dentistry, and ophthalmology.[37][38][39]

Interesting magnetic properties arise when the appropriate elements are used. In yttrium iron garnet (YIG), Y3Fe2(FeO4)3, the five iron(III) ions occupy two octahedral and three tetrahedral sites, with the yttrium(III) ions coordinated by eight oxygen ions in an irregular cube. The iron ions in the two coordination sites exhibit different spins, resulting in magnetic behavior. YIG is a ferrimagnetic material having a Curie temperature of 550 K. Yttrium iron garnet can be made into YIG spheres, which serve as magnetically tunable filters and resonators for microwave frequencies.[40]

Lutetium aluminium garnet (LuAG), Al
5Lu
3O
12, is an inorganic compound with a unique crystal structure primarily known for its use in high-efficiency laser devices. LuAG is also useful in the synthesis of transparent ceramics.[41] LuAG is particularly favored over other crystals for its high density and thermal conductivity; it has a relatively small lattice constant in comparison to the other rare-earth garnets, which results in a higher density producing a crystal field with narrower linewidths and greater energy level splitting in absorption and emission.[42]

Terbium gallium garnet (TGG), Tb
3Ga
5O
12, is a Faraday rotator material with excellent transparency properties and is very resistant to laser damage. TGG can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.[43]

Another example is gadolinium gallium garnet (GGG), Gd
3Ga
2(GaO
4)
3 which is synthesized for use as a substrate for liquid-phase epitaxy of magnetic garnet films for bubble memory and magneto-optical applications.[بحاجة لمصدر]

الأهمية الجيولوجية للگارنت

Main garnet producing countries
Garnet var. Spessartine, Putian City, Putian Prefecture, Fujian Province, China

The mineral garnet is commonly found in metamorphic and to a lesser extent, igneous rocks. Most natural garnets are compositionally zoned and contain inclusions.[44] Its crystal lattice structure is stable at high pressures and temperatures and is thus found in green-schist facies metamorphic rocks including gneiss, hornblende schist, and mica schist.[45] The composition that is stable at the pressure and temperature conditions of Earth's mantle is pyrope, which is often found in peridotites and kimberlites, as well as the serpentines that form from them.[45] Garnets are unique in that they can record the pressures and temperatures of peak metamorphism and are used as geobarometers and geothermometers in the study of geothermobarometry which determines "P-T Paths", Pressure-Temperature Paths. Garnets are used as an index mineral in the delineation of isograds in metamorphic rocks.[45] Compositional zoning and inclusions can mark the change from growth of the crystals at low temperatures to higher temperatures.[46] Garnets that are not compositionally zoned more than likely experienced ultra high temperatures (above 700 °C) that led to diffusion of major elements within the crystal lattice, effectively homogenizing the crystal[46] or they were never zoned. Garnets can also form metamorphic textures that can help interpret structural histories.[46]

In addition to being used to devolve conditions of metamorphism, garnets can be used to date certain geologic events. Garnet has been developed as a U-Pb geochronometer, to date the age of crystallization[47] as well as a thermochronometer in the (U-Th)/He system[48] to date timing of cooling below a closure temperature.

Garnets can be chemically altered and most often alter to serpentine, talc, and chlorite.[45]

الاستخدامات

c. 8th century AD, Anglo-Saxon sword hilt fitting – gold with gemstone inlay of garnet cloisonné. From the Staffordshire Hoard, found in 2009, and not fully cleaned.
Pendant in uvarovite, a rare bright-green garnet.

أحجار كريمة

Red garnets were the most commonly used gemstones in the Late Antique Roman world, and the Migration Period art of the "barbarian" peoples who took over the territory of the Western Roman Empire. They were especially used inlaid in gold cells in the cloisonné technique, a style often just called garnet cloisonné, found from Anglo-Saxon England, as at Sutton Hoo, to the Black Sea. Thousands of Tamraparniyan gold, silver and red garnet shipments were made in the old world, including to Rome, Greece, the Middle East, Serica and Anglo Saxons; recent findings such as the Staffordshire Hoard and the pendant of the Winfarthing Woman skeleton of Norfolk confirm an established gem trade route with South India and Tamraparni (ancient Sri Lanka), known from antiquity for its production of gemstones.[49][50][51]

Pure crystals of garnet are still used as gemstones. The gemstone varieties occur in shades of green, red, yellow, and orange.[52] In the US it is known as the birthstone for January.[1] It is the state mineral of Connecticut,[53] New York's gemstone,[54] and star garnet (garnet with rutile asterisms) is the state gemstone of Idaho.[55]

الاستخدامات الصناعية

Garnet sand is a good abrasive, and a common replacement for silica sand in sand blasting. Alluvial garnet grains which are rounder are more suitable for such blasting treatments. Mixed with very high pressure water, garnet is used to cut steel and other materials in water jets. For water jet cutting, garnet extracted from hard rock is suitable since it is more angular in form, therefore more efficient in cutting.[بحاجة لمصدر]

Garnet paper is favored by cabinetmakers for finishing bare wood.[56]

Garnet sand is also used for water filtration media.

As an abrasive, garnet can be broadly divided into two categories; blasting grade and water jet grade. The garnet, as it is mined and collected, is crushed to finer grains; all pieces which are larger than 60 mesh (250 micrometers) are normally used for sand blasting. The pieces between 60 mesh (250 micrometers) and 200 mesh (74 micrometers) are normally used for water jet cutting. The remaining garnet pieces that are finer than 200 mesh (74 micrometers) are used for glass polishing and lapping. Regardless of the application, the larger grain sizes are used for faster work and the smaller ones are used for finer finishes.[بحاجة لمصدر]

There are different kinds of abrasive garnets which can be divided based on their origin. The largest source of abrasive garnet today is garnet-rich beach sand which is quite abundant on Indian and Australian coasts and the main producers today are Australia and India.[57]

This material is particularly popular due to its consistent supplies, huge quantities and clean material. The common problems with this material are the presence of ilmenite and chloride compounds. Since the material has been naturally crushed and ground on the beaches for past centuries, the material is normally available in fine sizes only. Most of the garnet at the Tuticorin beach in south India is 80 mesh, and ranges from 56 mesh to 100 mesh size.[بحاجة لمصدر]

River garnet is particularly abundant in Australia. The river sand garnet occurs as a placer deposit.[58]

A cut and polished garnet gemstone, possibly of the almandine variety.
A cut and polished garnet gemstone, possibly of the almandine variety.

Rock garnet is perhaps the garnet type used for the longest period of time. This type of garnet is produced in America, China and western India. These crystals are crushed in mills and then purified by wind blowing, magnetic separation, sieving and, if required, washing. Being freshly crushed, this garnet has the sharpest edges and therefore performs far better than other kinds of garnet. Both the river and the beach garnet suffer from the tumbling effect of hundreds of thousands of years which rounds off the edges. Gore Mountain Garnet from Warren County, New York, USA is a significant source of rock garnet for use as an industrial abrasive.[59]

الأهمية الثقافية

Garnet is the birthstone of January.[60][61] It is also the birthstone of Aquarius and Capricorn in tropical astrology.[62][63] In Persia this birth gem was considered a talisman from nature's forces like storm and lightning. It was widely accepted that garnet could signal approaching danger by turning pale.[بحاجة لمصدر]

الولايات المتحدة

Garnet is New York State's official gemstone,[64] Connecticut has almandine garnet as its state gemstone,[65] Idaho has star garnet as its state gemstone,[66] and Vermont has grossular garnet as its state gemstone.[67]

Since 2003 New York State has ranked first in industrial garnet-production in the United States. Since there are just a few companies that account for all U.S. industrial garnet production, published detailed production statistics for New York State are not available. However, generally speaking, Barton Mines in Warren County is the largest U.S. garnet producer.[68]

Collections

The New York State Museum in Albany, NY houses specimens from significant sites across the state, including 93 mineral species from the Balmat-Edwards mining district in St. Lawrence, super garnets from the Barton Mine in the Adirondack Mountains, and Herkimer diamonds from Herkimer County, New York[69]

Oldest garnet mine

The largest garnet mine in the world is located Near North Creek New York and is operated by Barton Mines Corporation who supplies about 90% of the world's garnet.[70] Barton Mines Corporation is the first and oldest industrial garnet mining operation in the world and the second oldest continuous mining operation in the United States under the same management and mining the same product throughout its history. The Gore Mountain Mine of the Barton Mines Corporation was first mined under the direction of H. H. Barton Sr. in 1878 to produce garnet as the primary product.[70]

Largest garnet crystal

The open-pit Barton Garnet Mine, located at Gore Mountain in the Adirondack Highlands, yields the world's largest single crystals of garnet; diameters range from 5 to 35 cm and commonly average 10–18 cm.[71]

Gore Mountain garnets are unique in many respects, and considerable effort has been made to determine the timing of garnet growth. The first dating was that of Basu et al. (1989), who used plagioclase-hornblende-garnet to produce a Sm/Nd isochron that yielded an age of 1059 ± 19 Ma. Mezger et al. (1992) conducted their own Sm/Nd investigation using hornblende and the drilled core of a 50 cm garnet to produce an isochron age of 1051 ± 4 Ma. Connelly (2006) utilized seven different fractions of a Gore Mountain garnet to obtain a Lu-Hf isochron age of 1046.6 ± 6 Ma. It is therefore concluded with confidence that the garnets formed at 1049 ± 5 Ma, the average of the three determinations. This is also the local age of peak metamorphism in the 1090–1040 Ma Ottawan phase of the Grenvillian orogeny and serves as a critical data point in ascertaining the evolution of the megacrystic garnet deposits.[71]

انظر أيضاً

المصادر

مشاع المعرفة فيه ميديا متعلقة بموضوع [[commons: Category:جارنيت

| جارنيت

]].
  1. ^ أ ب ت Gemological Institute of America, GIA Gem Reference Guide 1995, ISBN 0-87311-019-6
  2. ^ Warr, L. N. (2021). "IMA–CNMNC approved mineral symbols". Mineralogical Magazine. 85 (3): 291–320. Bibcode:2021MinM...85..291W. doi:10.1180/mgm.2021.43. S2CID 235729616.
  3. ^ أ ب ت ث ج ح خ د ذ ر ز س ش Klein, Cornelis; Hurlbut, Cornelius S. Jr. (1993). Manual of mineralogy : (after James D. Dana) (21st ed.). New York: Wiley. pp. 451–454. ISBN 047157452X.
  4. ^ pomegranate. Online Etymology Dictionary. Retrieved on 2011-12-25.
  5. ^ garnet. Online Etymology Dictionary. Retrieved on 2011-12-25.
  6. ^ Brown, Richard (1995). Ancient astrological gemstones & talismans : the complete science of planetary gemology. Bangkok: A.G.T. Co. p. 47. ISBN 974-89022-4-2. OCLC 33190408.
  7. ^ Klein & Hurlbut 1993, p. 600.
  8. ^ Galoisy, L. (1 December 2013). "Garnet: From Stone to Star". Elements. 9 (6): 453–456. doi:10.2113/gselements.9.6.453.
  9. ^ أ ب Schmetzer, Karl; Bernhardt, Heinz-Jürgen (Winter 1999). "Garnets from Madagascar with a color change from blue-green to purple" (PDF). Gems & Gemology. 35 (4): 196–201. doi:10.5741/GEMS.35.4.196. Archived (PDF) from the original on 2022-10-09. Retrieved 7 December 2020.
  10. ^ Baxter, Ethan F.; Caddick, Mark J.; Ague, Jay J. (1 December 2013). "Garnet: Common Mineral, Uncommonly Useful". Elements. 9 (6): 415–419. doi:10.2113/gselements.9.6.415.
  11. ^ Smyth, Joe. "Mineral Structure Data". Garnet. University of Colorado. Retrieved 2007-01-12.
  12. ^ Nesse, William D. (2000). Introduction to mineralogy. New York: Oxford University Press. p. 311. ISBN 9780195106916.
  13. ^ Deer, W. A.; Howie, R. A.; Zussman, J. (2013). "Garnet Group". An Introduction to the Rock-Forming Minerals. Mineralogical Society of Great Britain and Ireland. ISBN 9780903056434.
  14. ^ Perec, Andrzej (1 October 2017). "Disintegration and recycling possibility of selected abrasives for water jet cutting". DYNA. 84 (203): 249–256. doi:10.15446/dyna.v84n203.62592.
  15. ^ D. B. Hoover, B. Williams, C. Williams and C. Mitchell, Magnetic susceptibility, a better approach to defining garnets Archived 2011-10-05 at the Wayback Machine, The Journal of Gemmology, 2008, Volume 31, No. 3/4 pp. 91–103
  16. ^ أ ب ت Lytvynov, L. A. (2011). "On the words used as names for ruby and sapphire" (PDF). Functional Materials. 18 (2): 274–277. Retrieved 7 December 2020.
  17. ^ Jensen, David E. (November 1975). "The Garnet Group". Rocks & Minerals. 50 (10): 584–587. Bibcode:1975RoMin..50..584J. doi:10.1080/00357529.1975.11767172.
  18. ^ Nesse 2000, pp. 312,320.
  19. ^ "Almandine". Dictionary of Gems and Gemology. 2009. pp. 19–20. doi:10.1007/978-3-540-72816-0_532. ISBN 978-3-540-72795-8.
  20. ^ Hausel, W. Dan (2000). Gemstones and Other Unique Rocks and Minerals of Wyoming – Field Guide for Collectors. Laramie, Wyoming: Wyoming Geological Survey. pp. 268 p.
  21. ^ أ ب Schlegel, Dorothy M. (1957). "Gem stones of the United States". U.S. Geological Survey Bulletin. 1042-G. doi:10.3133/b1042G.
  22. ^ Klein & Hurlbut 1993, pp. 453, 587–588.
  23. ^ Nesse 2000, p. 312.
  24. ^ Schmetzer, Karl; Bernhardt, Heinz-Jürgen (2002). "Gem-quality spessartine-grossular garnet of intermediate composition from Madagascar". Journal of Gemmology. 28 (4): 235–239. doi:10.15506/JoG.2002.28.4.235.
  25. ^ "Color Change Garnet Value, Price, and Jewelry Information - Gem Society". International Gem Society (in الإنجليزية الأمريكية). Retrieved 2022-10-13.
  26. ^ Krambrock, K.; Guimarães, F. S.; Pinheiro, M. V. B.; Paniago, R.; Righi, A.; Persiano, A. I. C.; Karfunkel, J.; Hoover, D. B. (July 2013). "Purplish-red almandine garnets with alexandrite-like effect: causes of colors and color-enhancing treatments". Physics and Chemistry of Minerals. 40 (7): 555–562. Bibcode:2013PCM....40..555K. doi:10.1007/s00269-013-0592-6. S2CID 95448333.
  27. ^ Saha, Abhishek; Ray, Jyotisankar; Ganguly, Sohini; Chatterjee, Nilanjan (10 July 2011). "Occurrence of melanite garnet in syenite and ijolite–melteigite rocks of Samchampi–Samteran alkaline complex, Mikir Hills, Northeastern India". Current Science. 101 (1): 95–100. JSTOR 24077869.
  28. ^ Plümper, Oliver; Beinlich, Andreas; Bach, Wolfgang; Janots, Emilie; Austrheim, Håkon (September 2014). "Garnets within geode-like serpentinite veins: Implications for element transport, hydrogen production and life-supporting environment formation". Geochimica et Cosmochimica Acta. 141: 454–471. Bibcode:2014GeCoA.141..454P. doi:10.1016/j.gca.2014.07.002.
  29. ^ Coombs, D. S.; Kawachi, Y.; Houghton, B. F.; Hyden, G.; Pringle, I. J.; Williams, J. G. (August 1977). "Andradite and andradite-grossular solid solutions in very low-grade regionally metamorphosed rocks in Southern New Zealand". Contributions to Mineralogy and Petrology. 63 (3): 229–246. Bibcode:1977CoMP...63..229C. doi:10.1007/BF00375574. S2CID 129908263.
  30. ^ Phillips, Wm. Revell; Talantsev, Anatoly S. (Summer 1996). "Russian demantoid, czar of the garnet family" (PDF). Gems & Gemology. 32 (2): 100–111. doi:10.5741/GEMS.32.2.100. Archived (PDF) from the original on 2022-10-09. Retrieved 7 December 2020.
  31. ^ Modreski, Peter J. (1 February 1993). "Featured Mineral Group at the 1993 Tucson Show: Garnet". Rocks & Minerals. 68 (1): 20–33. Bibcode:1993RoMin..68...20M. doi:10.1080/00357529.1993.9926521.
  32. ^ Mindat.org - Tsavorite
  33. ^ Feneyrol, J.; Giuliani, G.; Ohnenstetter, D.; Fallick, A.E.; Martelat, J.E.; Monié, P.; Dubessy, J.; Rollion-Bard, C.; Le Goff, E.; Malisa, E.; Rakotondrazafy, A.F.M.; Pardieu, V.; Kahn, T.; Ichang'i, D.; Venance, E.; Voarintsoa, N.R.; Ranatsenho, M.M.; Simonet, C.; Omito, E.; Nyamai, C.; Saul, M. (September 2013). "New aspects and perspectives on tsavorite deposits". Ore Geology Reviews. 53: 1–25. Bibcode:2013OGRv...53....1F. doi:10.1016/j.oregeorev.2013.01.016.
  34. ^ Nixon, Peter H.; Hornung, George (1968). "A new chromium garnet end member, knorringite, from Kimberlite". American Mineralogist. 53 (11–12): 1833–1840. Retrieved 7 December 2020.
  35. ^ S. Geller Crystal chemistry of the garnets Zeitschrift für Kristallographie, 125(125), pp. 1–47 (1967) DOI:10.1524/zkri.1967.125.125.1
  36. ^ Yariv, Amnon (1989). Quantum Electronics (3rd ed.). Wiley. pp. 208–211. ISBN 978-0-471-60997-1.
  37. ^ Teikemeier, G; Goldberg, DJ (1997). "Skin resurfacing with the erbium:YAG laser". Dermatologic Surgery. Philadelphia: Lippincott Williams & Wilkins. 23 (8): 685–687. doi:10.1111/j.1524-4725.1997.tb00389.x. PMID 9256915. S2CID 31557815.
  38. ^ Bornstein, E (2004). "Proper use of Er:YAG lasers and contact sapphire tips when cutting teeth and bone: scientific principles and clinical application". Dentistry Today. 23 (83): 86–89. PMID 15354712.
  39. ^ Kokavec, Jan; Wu, Zhichao; Sherwin, Justin C; Ang, Alan JS; Ang, Ghee Soon (2017-06-01). "Nd:YAG laser vitreolysis versus pars plana vitrectomy for vitreous floaters". The Cochrane Database of Systematic Reviews. 2017 (6): CD011676. doi:10.1002/14651858.CD011676.pub2. ISSN 1469-493X. PMC 6481890. PMID 28570745.
  40. ^ "What is YIG and How Does It Work So Well?". www.microlambdawireless.com. Retrieved 2023-07-17.
  41. ^ Moore, Cheryl (2015). "Towards a Greater Understanding of Hydrothermally Grown Garnets and Sesquioxide Crystals for Laser Applications". Clemson University Tiger Prints. Bibcode:2015PhDT.......308M.
  42. ^ "Lutetium Aluminum Garnet - LuAG - Lu3Al5O12". scientificmaterials.com. Retrieved 2016-04-29.
  43. ^ Majeed, Hassaan; Shaheen, Amrozia; Anwar, Muhammad Sabieh (2013). "Complete Stokes polarimetry of magneto-optical Faraday effect in a terbium gallium garnet crystal at cryogenic temperatures". Optics Express. Washington, D.C.: The Optical Society. 21 (21): 25148–25158. Bibcode:2013OExpr..2125148M. doi:10.1364/OE.21.025148. PMID 24150356.
  44. ^ Nesse, William D. (2013). Introduction to Optical Mineralogy (International Fourth ed.). New York: Oxford University Press. pp. 252–255. ISBN 978-0-19-984628-3.
  45. ^ أ ب ت ث Klein, C; Hurlbut, C. D. (1985). Manual of Mineralogy. New York: John Wiley and Sons. pp. 375–378. ISBN 0-471-80580-7.
  46. ^ أ ب ت "P-T-t Paths". Teaching Phase Equilibria (in الإنجليزية). Retrieved 2020-03-19.
  47. ^ Seman, S.; Stockli, D. F.; McLean, N. M. (2017-06-05). "U-Pb geochronology of grossular-andradite garnet". Chemical Geology (in الإنجليزية). 460: 106–116. Bibcode:2017ChGeo.460..106S. doi:10.1016/j.chemgeo.2017.04.020. ISSN 0009-2541.
  48. ^ Blackburn, Terrence J.; Stockli, Daniel F.; Carlson, Richard W.; Berendsen, Pieter (2008-10-30). "(U–Th)/He dating of kimberlites—A case study from north-eastern Kansas". Earth and Planetary Science Letters (in الإنجليزية). 275 (1): 111–120. Bibcode:2008E&PSL.275..111B. doi:10.1016/j.epsl.2008.08.006. ISSN 0012-821X.
  49. ^ "Staffordshire Hoard Festival 2019". The Potteries Museum & Art Gallery. Retrieved 18 June 2019.
  50. ^ "A trail of garnet and gold: Sri Lanka to Anglo-Saxon England". The Historical Association (in الإنجليزية). 22 June 2017. Retrieved 18 June 2019.
  51. ^ "Acquisitions of the month: June 2018". Apollo Magazine. 5 July 2018. Retrieved 18 June 2019.
  52. ^ Geological Sciences at University of Texas, Austin. Geo.utexas.edu. Retrieved on 2011-12-25.
  53. ^ State of Connecticut, Sites º Seals º Symbols Archived 2008-07-31 at the Wayback Machine; Connecticut State Register & Manual; retrieved on December 20, 2008
  54. ^ New York State Gem Archived 2007-12-08 at the Wayback Machine; State Symbols USA; retrieved on October 12, 2007
  55. ^ Idaho state symbols. idaho.gov
  56. ^ Joyce, Ernest (1987) [1970]. Peters, Alan (ed.). The Technique of Furniture Making (4th ed.). London: Batsford. ISBN 071344407X.
  57. ^ Briggs, J. (2007). The Abrasives Industry in Europe and North America. Materials Technology Publications. ISBN 978-1-871677-52-2.
  58. ^ Industrial Mineral Opportunities in New South Wales
  59. ^ خطأ استشهاد: وسم <ref> غير صحيح؛ لا نص تم توفيره للمراجع المسماة :0
  60. ^ "Tips & Tools: Birthstones". The National Association of Goldsmiths. Archived from the original on 2007-05-28. Retrieved 2014-06-16.
  61. ^ Kunz, George F. (1913). The curious lore of precious stones. Lippincott. pp. 275–306, pp. 319-320
  62. ^ Knuth, Bruce G. (2007). Gems in Myth, Legend and Lore (Revised edition). Parachute: Jewelers Press. p. 294.
  63. ^ Kunz (1913), pp. 345–347
  64. ^ "Minerals of New York State". State of New York. Retrieved 2022-02-25.
  65. ^ "State of Connecticut – Sites, Seals and Symbols". State of Connecticut. Retrieved 2009-11-12.
  66. ^ "Idaho Symbols". State of Idaho. Archived from the original on 2010-06-30. Retrieved 2009-11-12.
  67. ^ "Vermont Emblems". State of Vermont. Archived from the original on 2009-10-29. Retrieved 2009-11-12.
  68. ^ "New York State Gem". Joseph L. Ferguson. Retrieved 2022-04-06.
  69. ^ "Minerals of New York State". State of New York.
  70. ^ أ ب "The Garnet Story". Lake George Guide. 21 October 2010.
  71. ^ أ ب McLelland, James M.; Selleck, Bruce W. (2011). "Megacrystic Gore Mountain–type garnets in the Adirondack Highlands: Age, origin, and tectonic implications". Geosphere. Geological Society of America. 7 (5): 1194–1208. Bibcode:2011Geosp...7.1194M. doi:10.1130/GES00683.1.
  • Hurlbut, Cornelius S.; Klein, Cornelis, 1985, Manual of Mineralogy, 20th ed., Wiley, ISBN 0-471-80580-7
  • Color Encyclopedia of Gemstones ISBN 0-442-20333-0

وصلات خارجية

قالب:Jewelry

تمّ الاسترجاع من "https://www.marefa.org/w/index.php?title=جارنيت&oldid=3629060"
