تجمع جزيئات ضخمة

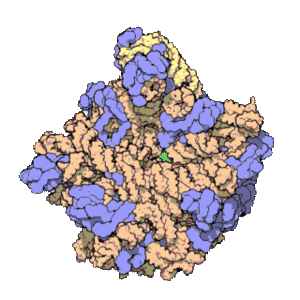

Structure of nucleoprotein MA: The 50S ribosomal subunit from H. marismortui X-ray crystallographic model of 29 of the 33 native components, from the laboratory of Thomas Steitz. Of the 31 component proteins, 27 are shown (blue), along with its 2 RNA strands (orange/yellow).[1] Scale: assembly is approx. 24 nm across.[2]

The term macromolecular assembly (MA) refers to massive chemical structures such as viruses and non-biologic nanoparticles, cellular organelles and membranes and ribosomes, etc. that are complex mixtures of polypeptide, polynucleotide, polysaccharide or other polymeric macromolecules. They are generally of more than one of these types, and the mixtures are defined spatially (i.e., with regard to their chemical shape), and with regard to their underlying chemical composition and structure. Macromolecules are found in living and nonliving things, and are composed of many hundreds or thousands of atoms held together by covalent bonds; they are often characterized by repeating units (i.e., they are polymers). Assemblies of these can likewise be biologic or non-biologic, though the MA term is more commonly applied in biology, and the term supramolecular assembly is more often applied in non-biologic contexts (e.g., in supramolecular chemistry and nanotechnology). MAs of macromolecules are held in their defined forms by non-covalent intermolecular interactions (rather than covalent bonds), and can be in either non-repeating structures (e.g., as in the ribosome (image) and cell membrane architectures), or in repeating linear, circular, spiral, or other patterns (e.g., as in actin filaments and the flagellar motor, image). The process by which MAs are formed has been termed molecular self-assembly, a term especially applied in non-biologic contexts. A wide variety of physical/biophysical, chemical/biochemical, and computational methods exist for the study of MA; given the scale (molecular dimensions) of MAs, efforts to elaborate their composition and structure and discern mechanisms underlying their functions are at the forefront of modern structure science.

A eukaryotic ribosome, which catalytically translate the information content contained in mRNA molecules into proteins. The animation presents the elongation and membrane targeting stages of eukaryotic translation, showing the mRNA as a black arc, the ribosome subunits in green and yellow, tRNAs in dark blue, proteins such as elongation and other factors involved in light blue, the growing polypeptide chain as a black thread growing vertically from the curve of the mRNA. At end of the animation, the polypeptide produced is extruded through a light blue SecY pore[3] into the gray interior of the ER.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

معقد جزيئات ضخمة

3D printed model of the structure of a bacterial flagellum "motor" and partial rod structure of a Salmonella species. Bottom to top: dark blue, repeating FliM and FliN, motor/switch proteins; red, FliG motor/switch proteins; yellow, FliF transmembrane coupling proteins; light blue, L and P ring proteins; and (at top), dark blue, the cap, hook-filament junction, hook, and rod proteins.[4]

A biomolecular complex, also called a biomacromolecular complex, is any biological complex made of more than one biopolymer (protein, RNA, DNA, [5] carbohydrate) or large non-polymeric biomolecules (lipid). The interactions between these biomolecules are non-covalent. [6] أمثلة:

The biomacromolecular complexes are studied structurally by X-ray crystallography, NMR spectroscopy of proteins, cryo-electron microscopy and successive single particle analysis, and electron tomography. [9] The atomic structure models obtained by X-ray crystallography and biomolecular NMR spectroscopy can be docked into the much larger structures of biomolecular complexes obtained by lower resolution techniques like electron microscopy, electron tomography, and small-angle X-ray scattering. [10]

Complexes of macromolecules occur ubiquitously in nature, where they are involved in the construction of viruses and all living cells. In addition, they play fundamental roles in all basic life processes (protein translation, cell division, vesicle trafficking, intra- and inter-cellular exchange of material between compartments, etc.). In each of these roles, complex mixtures of become organized in specific structural and spatial ways. While the individual macromolecules are held together by a combination of covalent bonds and intramolecular non-covalent forces (i.e., associations between parts within each molecule, via charge-charge interactions, van der Waals forces, and dipole-dipole interactions such as hydrogen bonds), by definition MAs themselves are held together solely via the noncovalent forces, except now exerted between molecules (i.e., intermolecular interactions).[بحاجة لمصدر]


مقاييس وأمثلة تجمعات الجزيئات الضخمة

The images above give an indication of the compositions and scale (dimensions) associated with MAs, though these just begin to touch on the complexity of the structures; in principle, each living cell is composed of MAs, but is itself an MA as well. In the examples and other such complexes and assemblies, MAs are each often millions of daltons in molecular weight (megadaltons, i.e., millions of times the weight of a single, simple atom), though still having measurable component ratios (stoichiometries) at some level of precision. As alluded to in the image legends, when properly prepared, MAs or component subcomplexes of MAs can often be crystallized for study by protein crystallography and related methods, or studied by other physical methods (e.g., spectroscopy, microscopy).[بحاجة لمصدر]

Cross-sections of phospholipid (PLs) relevant to biomembrane MAs. Yellow-orange indicates hydrophobic lipid tails; black and white spheres represent PL polar regions (v.i.). Bilayer/liposome dimensions (obscured in graphic): hydrophobic and polar regions, each ~30 Å (3.0 nm) "thick"—the polar from ~15 Å (1.5 nm) on each side.[11][12][13][بحاجة لمصدر غير رئيسي][14]
A graphical representation of the structure of a viral MA, cowpea mosaic virus, with 30 copies of each of its coat proteins, the small coat protein (S, yellow) and the large coat protein (L, green), which, along with 2 molecules of positive-sense RNA (RNA-1 and RNA-2, not visible) constitute the virion. The assembly is highly symmetric, and is ~280 Å (28 nm) across at its widest point.قالب:Verification needed[بحاجة لمصدر]

Virus structures were among the first studied MAs; other biologic examples include ribosomes (partial image above), proteasomes, and translation complexes (with protein and nucleic acid components), procaryotic and eukaryotic transcription complexes, and nuclear and other biological pores that allow material passage between cells and cellular compartments. Biomembranes are also generally considered MAs, though the requirement for structural and spatial definition is modified to accommodate the inherent molecular dynamics of membrane lipids, and of proteins within lipid bilayers.[15]

تجمع ڤيروسات

During assembly of the bacteriophage (phage) T4 virion, the morphogenetic proteins encoded by the phage genes interact with each other in a characteristic sequence. Maintaining an appropriate balance in the amounts of each of these proteins produced during viral infection appears to be critical for normal phage T4 morphogenesis.[16] Phage T4 encoded proteins that determine virion structure include major structural components, minor structural components and non-structural proteins that catalyze specific steps in the morphogenesis sequence[17]

أبحاث في تجمعات الجزيئات الضخمة

The study of MA structure and function is challenging, in particular because of their megadalton size, but also because of their complex compositions and varying dynamic natures. Most have had standard chemical and biochemical methods applied (methods of protein purification and centrifugation, chemical and electrochemical characterization, etc.). In addition, their methods of study include modern proteomic approaches, computational and atomic-resolution structural methods (e.g., X-ray crystallography), small-angle X-ray scattering (SAXS) and small-angle neutron scattering (SANS), force spectroscopy, and transmission electron microscopy and cryo-electron microscopy. Aaron Klug was recognized with the 1982 Nobel Prize in Chemistry for his work on structural elucidation using electron microscopy, in particular for protein-nucleic acid MAs including the tobacco mosaic virus (a structure containing a 6400 base ssRNA molecule and >2000 coat protein molecules). The crystallization and structure solution for the ribosome, MW ~ 2.5 MDa, an example of part of the protein synthetic 'machinery' of living cells, was object of the 2009 Nobel Prize in Chemistry awarded to Venkatraman Ramakrishnan, Thomas A. Steitz, and Ada E. Yonath.[18]

النظائر غير الحيوية

Finally, biology is not the sole domain of MAs. The fields of supramolecular chemistry and nanotechnology each have areas that have developed to elaborate and extend the principles first demonstrated in biologic MAs. Of particular interest in these areas has been elaborating the fundamental processes of molecular machines, and extending known machine designs to new types and processes.[بحاجة لمصدر]

انظر أيضاً

المراجع

  1. ^ Ban N, Nissen P, Hansen J, Moore PB, Steitz TA (August 2000). "The complete atomic structure of the large ribosomal subunit at 2.4 A resolution". Science. 289 (5481): 905–920. Bibcode:2000Sci...289..905B. CiteSeerX 10.1.1.58.2271. doi:10.1126/science.289.5481.905. PMID 10937989.
  2. ^ McClure W. "50S Ribosome Subunit". Archived from the original on 2005-11-24. Retrieved 2019-10-09.
  3. ^ Osborne AR, Rapoport TA, van den Berg B (2005). "Protein translocation by the Sec61/SecY channel". Annual Review of Cell and Developmental Biology. 21: 529–550. doi:10.1146/annurev.cellbio.21.012704.133214. PMID 16212506.
  4. ^ Legend, cover art, J. Bacteriol., October 2006.[استشهاد ناقص]
  5. ^ Kleinjung J, Fraternali F (July 2005). "POPSCOMP: an automated interaction analysis of biomolecular complexes". Nucleic Acids Research. 33 (Web Server issue): W342–W346. doi:10.1093/nar/gki369. PMC 1160130. PMID 15980485.
  6. ^ Moore PB (2012). "How should we think about the ribosome?". Annual Review of Biophysics. 41 (1): 1–19. doi:10.1146/annurev-biophys-050511-102314. PMID 22577819.
  7. ^ Dutta S, Berman HM (March 2005). "Large macromolecular complexes in the Protein Data Bank: a status report". Structure. 13 (3): 381–388. doi:10.1016/j.str.2005.01.008. PMID 15766539.
  8. ^ Russell RB, Alber F, Aloy P, Davis FP, Korkin D, Pichaud M, et al. (June 2004). "A structural perspective on protein-protein interactions". Current Opinion in Structural Biology. 14 (3): 313–324. doi:10.1016/j.sbi.2004.04.006. PMID 15193311.
  9. ^ van Dijk AD, Boelens R, Bonvin AM (January 2005). "Data-driven docking for the study of biomolecular complexes". The FEBS Journal. 272 (2): 293–312. doi:10.1111/j.1742-4658.2004.04473.x. hdl:1874/336958. PMID 15654870. S2CID 20148856.
  10. ^ "Structure of Fluid Lipid Bilayers". Blanco.biomol.uci.edu. 2009-11-10. Retrieved 2019-10-09.
  11. ^ Experimental system, dioleoylphosphatidylcholine bilayers. The hydrophobic hydrocarbon region of the lipid is ~30 Å (3.0 nm) as determined by a combination of neutron and X-ray scattering methods; likewise, the polar/interface region (glyceryl, phosphate, and headgroup moieties, with their combined hydration) is ~15 Å (1.5 nm) on each side, for a total thickness about equal to the hydrocarbon region. See S.H. White references, preceding and following.
  12. ^ Wiener MC, White SH (February 1992). "Structure of a fluid dioleoylphosphatidylcholine bilayer determined by joint refinement of x-ray and neutron diffraction data. III. Complete structure". Biophysical Journal. 61 (2): 434–447. Bibcode:1992BpJ....61..434W. doi:10.1016/S0006-3495(92)81849-0. PMC 1260259. PMID 1547331.
  13. ^ Hydrocarbon dimensions vary with temperature, mechanical stress, PL structure and coformulants, etc. by single- to low double-digit percentages of these values.[بحاجة لمصدر]
  14. ^ Gerle C (June 2019). "Essay on Biomembrane Structure". The Journal of Membrane Biology. 252 (2–3): 115–130. doi:10.1007/s00232-019-00061-w. PMC 6556169. PMID 30877332.
  15. ^ Floor E (February 1970). "Interaction of morphogenetic genes of bacteriophage T4". Journal of Molecular Biology. 47 (3): 293–306. doi:10.1016/0022-2836(70)90303-7. PMID 4907266.
  16. ^ Snustad DP (August 1968). "Dominance interactions in Escherichia coli cells mixedly infected with bacteriophage T4D wild-type and amber mutants and their possible implications as to type of gene-product function: catalytic vs. stoichiometric". Virology. 35 (4): 550–63. doi:10.1016/0042-6822(68)90285-7. PMID 4878023.
  17. ^ "The Nobel Prize in Chemistry 2009". The Nobel Prize. Nobel Prize Outreach AB 2021. Retrieved 10 May 2021.
