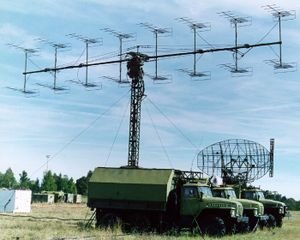

P-18 radar in Germany with Parol IFF
بلد الأصلFlag of الاتحاد السوڤيتي الاتحاد السوڤيتي
تاريخ التقديم1970
النوعانذار مبكر
الترددVHF
النطاق250 km
الارتفاع35 km
السمت360 degrees
المنسوب-5-15 degrees
الدقةنطاق 1 كيلومتر
القدرة260 kW

P-18 أو 1RL131 تـِرِك Terek (ويشار إليها أيضاً بـ NATO reporting name "Spoon Rest D" in the west) is a 2D VHF radar developed and operated by الاتحاد السوڤيتي السابق.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

التطوير

The P-18 early warning radar is a development of the earlier P-12 radar, the P-18 radar being accepted into service in 1970 following the successful completion of the program.[1] The P-18 was developed by the SKB Design Bureau, a division of State Plant No.197 named after V. I. Lenin who developed the previous P-12, the predecessor of the current Nizhny Novgorod Research Institute of Radio Engineering (NNIIRT). In 1979 a new secondary IFF radar the 1L22 "Parol" entered into service to complement the P-18, unlike the previous secondary radar NRS-12 (NATO "Score Board") the new interrogator was carried on a separate truck.[2]

The P-18 is still in service today and was widely exported, many companies offer upgrade options to improve the performance and reliability of the radar and to replace out-dated components. NNIIRT offers an upgrade package for the P-18 which includes the installation of a solid state transmitter and receiver, automatic jammer suppression equipment as well as PC based signal processing, test and interface equipment.[1] These upgraded variants of the P-18 can be referred to as the P-18M, P-18-1 or P-18-2 depending on the manufacturer, modification and radar nationality. The P-18 was superseded by the 1L13 "Nebo" VHF surveillance radar in 1984. Currently, the Russian-Belarusian company Defense Systems provides upgrades for P-18 radars.[3] Also Retia, a Czech civil and military electronics company, developed its own, fundamental modernisation of the P-18 under the name ReVEAL. It is now solid state, digitized and fitted with upgraded IFF system, while allowing to utilise also the legacy IFF. The whole equipment is repackaged into a standard container and already sold in several dozen units.[4]


الوصف

P-18 receiver with digital MTI (top left)

The P-18 shares many similarities with the earlier P-12NA and like the P-12 it is mounted on two Ural-4320 truck chassis. The P-18 features many improvements over the P-12 including increased performance, precision and reliability.[2] The radar was developed to work independently or as part of a C3 system directing SAM and aircraft to hostile targets, the truck mounted design provided the radar with high mobility.[5]

The P-18 uses a single antenna accomplishing both transmission and reception. The antenna is composed of sixteen Yagi antennas mounted in sets of eight with one set above the other. The radar antenna is mounted on the truck used to transport it improving mobility and the radar also features a mechanism which allows the antenna height and elevation to be altered during operation.[1] Azimuth is scanned mechanically by the antenna with a rotation of 10 r.p.m, the original P-18 used three indicators, including two plan position indicators in addition to a back-up A-scope.[5] Like the P-12 the radar features automatic frequency control with four pre-set operating frequencies, moving target indicator to eliminate passive clutter and active jamming, the radar could also display tracks from another radar it was paired with. The original P-18 used a coaxial cavity resonator transmitter, vacuum tube receiver with transistor based preamplifier and a vacuum tube/pin diode based duplexer.[5] A secondary radar for IFF is generally used in conjunction with the P-18, either the NRS-12 or the later 1L22 "Parol".

التنويعات

There is few modification and variants of P-18 radar that allow him to be still in use and most of them substantially extend original capabilities.

لتوانيا

P-18ML[6] – ground-based long-range VHF surveillance radar P-18ML is offered as the modernized follow-on to its prototype, the analogue P-18. Produced in LiTak-Tak[7] (Lithuania).

Radar features:

  • maximum use of COTS components;
  • stable, fail-soft, modular solid-state transmitter;
  • built-in test equipment;
  • no special adjustments required during operation;
  • largely simplified maintenance;
  • engineered for minimum cost of ownership.

As a result of modernization the radar's detection performance is efficiently improved. Modernized radar features automatic tracking capability as well as data receiving from other radar sensors. Data can be exchanged over a variety of communication channels in approved format.

صربيا

During development of modernization electronic set for P-12M radar it was developed digital data receiver that could be used for both P-12 and P-18 radar modernization by Serbian company Iritel. Today that set is in use by Serbian army for modernized P-12 and P-18 radar. [8] This data receiver enables use of remote control for radar using optical cable at distances from 100 to 500 meters.

المشغلون

رادار P-18 في المجر

The P-18 was operated by the Soviet Union from 1970 and though it has since become obsolete it was passed down to successor states after the fall of the Soviet Union. The radar continues to serve in many client and third world states who received the P-18 from the Soviet Union by export. Many P-18 have been upgraded and continue to serve in the military and air traffic control role across the world.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

التاريخ القتالي

The P-18 has served in several conflicts in the Middle East, Europe and Asia. One unusual feature of the P-18 is its counter-stealth capability. Since the radar uses metre-length wave VHF, the shaping features and radar absorbent materials used on stealth aircraft are less efficient, allowing VHF based radars to detect targets at a greater range than centimeter or millimeter wave radar which stealth aircraft are optimized against.[18] The presence of a P-18 radar in Yugoslavia during the Kosovo War is believed to have contributed to the loss of a US F-117 Nighthawk during the conflict.[19]
