أوجين فريسينيه

اوجين فريسينيه
Eugène Freyssinet
وُلِدَ(1879-07-13)يوليو 13, 1879
اوبجا, كوريز, فرنسا
توفييونيو 8, 1962(1962-06-08) (aged 82)
الجنسيةفرنسي
المهنةمهندس
السيرة الهندسية
المجالمهندس انشائي, مهندس مدني
الهيئاتمعهد المهندسين الإنشائيين
المشاريعPlougastel Bridge
Pont le Veurdre
Hangar d'Orly
تقدم بارزتطويرات في الخرسانة سابقة الإجهاد
جوائزIStructE Gold Medal
Frank P. Brown Medal (1950)
Wilhelm Exner Medal (1960)

أوجين فريسينيه ( Eugène Freyssinet ؛ بالفرنسية: [øʒɛn fʁɛsinɛ] ؛ عاش 13 يوليو 1879 – 8 يونيو 1962) كان مهندساً إنشائياً فرنسياً ومهندساً مدنياً. وكان رائداً رئيسياً في الخرسانة سابقة الإجهاد.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

السيرة

Freyssinet was born in at Objat, Corrèze, France. He worked in the École Nationale des Ponts et Chaussées in Paris, France where he designed several bridges until the First World War intervened. His tutors included Charles Rabut.[1] He served in the French Army from 1904–1907 and again from 1914-1918 as a road engineer.

His most significant early bridge was the three span Pont le Veurdre near Vichy, built in 1911. At the time, the 72.5 metre (238 ft) spans were the longest so far constructed in France although Grafton Bridge a 97.6 metre reinforced concrete bridge had been opened in April 1910 and the Rocky River Bridge in Cleveland Ohio, an 85.34 metre unreinforced bridge had been opened in October 1910.

Freyssinet's proposal was for three reinforced concrete truss spans, and was significantly less expensive than the standard masonry arch design. The design used jacks to raise and connect the arches, effectively introducing an element of prestress. The bridge also enabled Freyssinet to discover the phenomenon of creep in concrete, whereby the concrete deforms with time when placed under stress. Regarding this bridge, Freyssinet wrote: "I have always loved it more than any other of my bridges, and of all that the War has destroyed, it is the only one whose ruin has caused me real grief".[1]

He served as the director of Public Works in Moulins starting in 1905. He also served as a road engineer in central France from 1907 till 1914.

Eugène achieved a significant breakthrough in thin-shell structures with the design of two huge and celebrated airship hangars at Villeneuve-Orly Airport in 1923. The principle of the corrugated form for the concrete shell was introduced there to obtain necessary stiffness for a 70m span. In 1924 he applied the same principle of corrugated shell roofing for two airplanes hangars spanning 55m at Vélizy – Villacoublay.[2]

Working for Claude Limousin until 1929, he designed a number of structures including a 96.2 m (315 ft) arch bridge at Villeneuve-sur-Lot, and several large thin-shell concrete roofs, including aircraft hangars at Istres, Bouches-du-Rhone in 1917 and 300-foot-wide, 200-foot-high twin dirigible sheds at Orly from 1916 to 1923.[3] During the First World War he also built cargo ships using reinforced concrete at Rouen.[4] Freyssinet's major contribution to the science of concrete construction was the use of forced steam around the concrete moulds which significantly shortened the curing time of the concrete.

His 1919 design at St Pierre du Vauvray again increased the record for a concrete arch span, with 132 m (435 ft) hollow arches, completed in 1923.[1] Also in 1919 his Pont De La Liberation in Villeneuve-sur-Lot was completed which was the largest single span in the world at 96.25 metres.

His largest structure was the Plougastel Bridge with three identical spans of 180 m (592 ft) each, completed in 1930. Here he studied creep in more detail, and developed his ideas of prestressing, taking out a patent in 1928.[1]

Although Freyssinet did much to develop prestressed concrete, he was not its inventor. Other engineers such as Doehring had patented methods for prestressing as early as 1888, and Freyssinet's mentor Rabut built prestressed concrete corbels. Freyssinet's key contribution was to recognise that only high-strength prestressing wire could counteract the effects of creep and relaxation, and to develop anchorages and other technology which made the system flexible enough to be applied to many different types of structures.[5]

Having left Limousin, he set up his own firm to build prestressed concrete electricity pylons, but the business failed.[6]

In 1935, he used prestressing to consolidate the maritime station of Le Havre which was threatening to settle beyond repair. Freyssinet introduced prestressed concrete beams, and jacked up the shipyard buildings. Following this success, he joined the firm of Campenon-Bernard and went on to design several prestressed bridges.

Many of Freyssinet's designs were new and elaborate for his time—some of them so much so that they were never built, such as the Phare du Monde, a 2,300 foot tower planned for the 1937 World Fair in Paris. According to Leonardo Troyano, "his capacity for creation, invention and research and his non-conformity with existing ideas and doctrines made him one of the most notable engineers in the history of engineering".[7]


الإنجازات أو الإسهامات الرئيسية

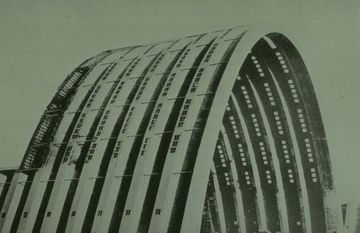

حظيرة طائرات في اورلي.

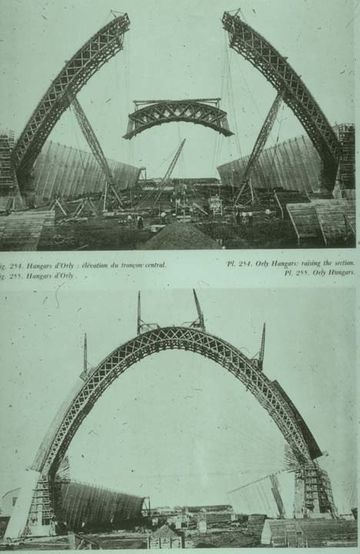

حظيرة الطائرات لاحقاً.

المصادر

  1. ^ أ ب ت ث Billington, David (1985). The Tower and the Bridge. Princeton: Princeton University Press. ISBN 0-691-02393-X.
  2. ^ Bernard Espion, Pierre Halleux, Jacques I. Schiffmann, "Contributions of André Paduart to the Art of Thin Concrete Shell Vaulting," Proceedings of the First International Congress on Construction History (2003) citing: Freyssinet, Eugène (1923) Hangars à dirigeables en ciment armé en construction à l’aéroport de Villeneuve-Orly, Le Génie Civil (Paris) 83: 265-273, 291-297, 313-319; Gotteland, J. (1925) Les hangars d’avions de Villacoublay, Annales des Ponts et Chaussées (Paris) fasc.5 : 169-183; and Fernandez Ordoñez, José A. (1979) Eugène Freyssinet, Barcelone: 2c editions.
  3. ^ Billington, op. cit.
  4. ^ Bennett, David: "The Creation of Bridges", Aurum Press Ltd, undated (circa 1998)
  5. ^ Troyano, L.F.: "Bridge Engineering - A Global Perspective", Thomas Telford Publishing, 2003
  6. ^ Bennett, op.cit.
  7. ^ Troyano, op.cit.
  8. ^ قالب:Base Mérimée
  9. ^ Notice du pont d'Oelde sur Structurae.com
