إشعاع سنكروتروني

هذا المقال هو عن الظاهرة الطبيعية للإشعاع السنكروتروني. إذا كنت تريد تفاصيل حول انتاج هذا الإشعاع وتطبيقاته في المعامل، انظر مصدر ضوء سنكروتروني.

الإشعاع السنكروتروني (Synchrotron radiation أو إشعاع برمزشترالونگ المغناطيسي magnetobremsstrahlung radiation) هو إشعاع كهرومغناطيسي ينطلق حين تتعرض الجسيمات المشحونة لتسارع قطري، أي حين تتعرض لتسارع عمودي على سرعتها (a ⊥ v). وتُنتَج، على سبيل المثال، في السنكروترونات باستخدام مغناطيسات منحنية، متموجات و/أو متمايلات. إذا كان الجسيم غير نسباوي، فإن الإشعاع يُدعى إشعاع سيكلوتروني. أما إذا كانت الجسيمات نسباوية، فأحياناً يشار إليها بإسم فائق النسباوية، والإشعاع يسمى "إشعاع سنكروتروني". الإشعاع السنكروتروني قد يتحقق اصطناعياً في السنكروترونات أو حلقات التخزين، أو طبيعياً بسبب مرور إلكترونات سريعة خلال مجالات مغناطيسية. الإشعاع الناتج بهذه الطريقة تكون له استقطاب مميز والترددات المتولدة يمكن أن تنتشر على كامل نطاق الطيف الكهرومغناطيسي، ويسمى ذلك الإشعاع أيضاً إشعاع متصل.

إشعاع سنكروتروني من مغناطيس منحني

إشعاع سنكروتروني من متموج.

من خلال إلكترونيات سريعة الحركة أثناء دورانها في مجال مغناطيسي قوى. والإشعاع السنكروتروني هو سبب الضوضاء والتشويش الراديوي الذي يصدر من خلال معظم المنابع الراديوية في الكون.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 إشعاع سنكروتروني في علم الفلك

تُولد الإشعاعات السنكروترونية في الطبيعة في النجوم و المجرات من الإلكترونات السريعة التي تنتشر بسرعات مقاربة لسرعة الضوء وتقع تحت تأثير مجالات مغناطيسية شديدة فيكون مسارها على هيئة مسارات حلزونية يمكن مراقبتها من الأرض . وهذه تتسم بخاصتين : الخاصة الأولى ، وهو أن طيفها ليس من نوع الطيف العادي الذي ينشأ عن الحرارة ، وهذه تتميز بتوزيع يعرف في الفيزياء بتوزيع الفوتونات الصادرة من الجسم الأسود وتعادل طيف الشمس . والخاصية الثانية ، الاستقطاب.

 سدم رياح النباضات

سديم السرطان

الوهج المائل للزرقة من المنطقة الوسطى للسديم هو بسبب الإشعاع السنكروتروني.

 التاريخ

معجل سنكروتروني من جنرال إلكتريك، المبني في 1946، أصل اكتشاف الإشعاع السنكروترني.

Synchrotron radiation was first observed by technician Floyd Haber, on April 24, 1947, at the 70 MeV electron synchrotron of the General Electric research laboratory in Schenectady, New York. While this was not the first synchrotron built, it was the first with a transparent vacuum tube, allowing the radiation to be directly observed.

As recounted by Herbert Pollock:

On April 24, Langmuir and I were running the machine and as usual were trying to push the electron gun and its associated pulse transformer to the limit. Some intermittent sparking had occurred and we asked the technician to observe with a mirror around the protective concrete wall. He immediately signaled to turn off the synchrotron as "he saw an arc in the tube". The vacuum was still excellent, so Langmuir and I came to the end of the wall and observed. At first we thought it might be due to Cherenkov radiation, but it soon became clearer that we were seeing Ivanenko and Pomeranchuk radiation.

 الوصف

A direct consequence of Maxwell's equations is that accelerated charged particles always emit electromagnetic radiation. Synchrotron radiation is the special case of charged particles moving at relativistic speed undergoing acceleration perpendicular to their direction of motion, typically in a magnetic field. In such a field, the force due to the field is always perpendicular to both the direction of motion and to the direction of field, as shown by the Lorentz force law.

The power carried by the radiation is found (in SI units) by the relativistic Larmor formula:

$$P_{\gamma }={\frac {q^{2}}{6\pi \varepsilon _{0}c^{3}}}a^{2}\gamma ^{4}={\frac {q^{2}c}{6\pi \varepsilon _{0}}}{\frac {\beta ^{4}\gamma ^{4}}{\rho ^{2}}},$$

where

• $\varepsilon _{0}$ is the vacuum permittivity,
• $q$ is the particle charge,
• $a$ is the magnitude of the acceleration,
• $c$ is the speed of light,
• $\gamma$ is the Lorentz factor,
• $\beta =v/c$,
• $\rho$ is the radius of curvature of the particle trajectory.

The force on the emitting electron is given by the Abraham–Lorentz–Dirac force.

When the radiation is emitted by a particle moving in a plane, the radiation is linearly polarized when observed in that plane, and circularly polarized when observed at a small angle. Considering quantum mechanics, however, this radiation is emitted in discrete packets of photons and has significant effects in accelerators called quantum excitation. For a given acceleration, the average energy of emitted photons is proportional to $\gamma ^{3}$ and the emission rate to $\gamma$.

 من المعجلات

المقالة الرئيسية: Synchrotron light source

Circular accelerators will always produce gyromagnetic radiation as the particles are deflected in the magnetic field. However, the quantity and properties of the radiation are highly dependent on the nature of the acceleration taking place. For example, due to the difference in mass, the factor of $\gamma ^{4}$ in the formula for the emitted power means that electrons radiate energy at approximately 10¹³ times the rate of protons.

Energy loss from synchrotron radiation in circular accelerators was originally considered a nuisance, as additional energy must be supplied to the beam in order to offset the losses. However, beginning in the 1980s, circular electron accelerators known as light sources have been constructed to deliberately produce intense beams of synchrotron radiation for research.

 في الفلك

منفث نشط من M87's.، صورة من HST. الضوء الأزرق من المنفث المنبثق من لب AGN الساطع، باتجاه أسفل اليمين، هو بسبب الإشعاع السنكروتروني.

Synchrotron radiation is also generated by astronomical objects, typically where relativistic electrons spiral (and hence change velocity) through magnetic fields. Two of its characteristics include power-law energy spectra and polarization. It is considered to be one of the most powerful tools in the study of extra-solar magnetic fields wherever relativistic charged particles are present. Most known cosmic radio sources emit synchrotron radiation. It is often used to estimate the strength of large cosmic magnetic fields as well as analyze the contents of the interstellar and intergalactic media.

 History of detection

This type of radiation was first detected in a jet emitted by Messier 87 in 1956 by Geoffrey R. Burbidge, who saw it as confirmation of a prediction by Iosif S. Shklovsky in 1953. However, it had been predicted earlier (1950) by Hannes Alfvén and Nicolai Herlofson. Solar flares accelerate particles that emit in this way, as suggested by R. Giovanelli in 1948 and described by J.H. Piddington in 1952.

T. K. Breus noted that questions of priority on the history of astrophysical synchrotron radiation are complicated, writing:

In particular, the Russian physicist V.L. Ginzburg broke his relationships with I.S. Shklovsky and did not speak with him for 18 years. In the West, Thomas Gold and Sir Fred Hoyle were in dispute with H. Alfven and N. Herlofson, while K.O. Kiepenheuer and G. Hutchinson were ignored by them.

The bluish glow from the central region of the Crab Nebula is due to synchrotron radiation.

 From supermassive black holes

It has been suggested that supermassive black holes produce synchrotron radiation in "jets", generated by the gravitational acceleration of ions in their polar magnetic fields. The nearest such observed jet is from the core of the galaxy Messier 87. This jet is interesting for producing the illusion of superluminal motion as observed from the frame of Earth. This phenomenon is caused because the jets are traveling very near the speed of light and at a very small angle towards the observer. Because at every point of their path the high-velocity jets are emitting light, the light they emit does not approach the observer much more quickly than the jet itself. Light emitted over hundreds of years of travel thus arrives at the observer over a much smaller time period, giving the illusion of faster than light travel, despite the fact that there is actually no violation of special relativity.

 Pulsar wind nebulae

A class of astronomical sources where synchrotron emission is important is pulsar wind nebulae, also known as plerions, of which the Crab nebula and its associated pulsar are archetypal. Pulsed emission gamma-ray radiation from the Crab has recently been observed up to ≥25 GeV, probably due to synchrotron emission by electrons trapped in the strong magnetic field around the pulsar. Polarization in the Crab nebula at energies from 0.1 to 1.0 MeV, illustrates this typical property of synchrotron radiation.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Interstellar and intergalactic media

Much of what is known about the magnetic environment of the interstellar medium and intergalactic medium is derived from observations of synchrotron radiation. Cosmic ray electrons moving through the medium interact with relativistic plasma and emit synchrotron radiation which is detected on Earth. The properties of the radiation allow astronomers to make inferences about the magnetic field strength and orientation in these regions. However, accurate calculations of field strength cannot be made without knowing the relativistic electron density.

 في المستعرات العظمى

When a star explodes in a supernova, the fastest ejecta move at semi-relativistic speeds approximately 10% the speed of light. This blast wave gyrates electrons in ambient magnetic fields and generates synchrotron emission, revealing the radius of the blast wave at the location of the emission. Synchrotron emission can also reveal the strength of the magnetic field at the front of the shock wave, as well as the circumstellar density it encounters, but strongly depends on the choice of energy partition between the magnetic field, proton kinetic energy, and electron kinetic energy. Radio synchrotron emission has allowed astronomers to shed light on mass loss and stellar winds that occur just prior to stellar death.

 الصياغة

 مجال لينار-ڤيكرت

فلنبدأ بتعبيرات عن مجال لينار-ڤيكرت لشحنة نقطية بكتلة $m$ and charge $q$:

${\begin{aligned}\mathbf {B} (\mathbf {r} ,t)&=-{\frac {\mu _{0}q}{4\pi }}\left[{\frac {c\,{\hat {\mathbf {n} }}\times {\vec {\beta }}}{\gamma ^{2}R^{2}\,(1-{\vec {\beta }}\mathbf {\cdot } {\hat {\mathbf {n} }})^{3}}}+{\frac {{\hat {\mathbf {n} }}\times [\,{\dot {\vec {\beta }}}+{\hat {\mathbf {n} }}\times ({\vec {\beta }}\times {\dot {\vec {\beta }}})]}{R\,(1-{\vec {\beta }}\mathbf {\cdot } {\hat {\mathbf {n} }})^{3}}}\right]_{\mathrm {retarded} },\qquad &(1)\\\mathbf {E} (\mathbf {r} ,t)&={\frac {q}{4\pi \varepsilon _{0}}}\left[{\frac {{\hat {\mathbf {n} }}-{\vec {\beta }}}{\gamma ^{2}R^{2}\,(1-{\vec {\beta }}\mathbf {\cdot } {\hat {\mathbf {n} }})^{3}}}+{\frac {{\hat {\mathbf {n} }}\times [({\hat {\mathbf {n} }}-{\vec {\beta }})\times {\dot {\vec {\beta }}}\,]}{c\,R\,(1-{\vec {\beta }}\mathbf {\cdot } {\hat {\mathbf {n} }})^{3}}}\right]_{\mathrm {retarded} },\qquad &(2)\end{aligned}}$

where R(t′) = r − r₀(t′), R(t′) = |R(t′)|, and n(t′) = R(t′)/R(t′), which is the unit vector between the observation point and the position of the charge at the retarded time, and t′ is the retarded time.

In equation (1), and (2), the first terms for B and E resulting from the particle fall off as the inverse square of the distance from the particle, and this first term is called the generalized Coulomb field or velocity field. These terms represents the particle static field effect, which is a function of the component of its motion that has zero or constant velocity, as seen by a distant observer at r. By contrast, the second terms fall off as the inverse first power of the distance from the source, and these second terms are called the acceleration field or radiation field because they represent components of field due to the charge's acceleration (changing velocity), and they represent E and B which are emitted as electromagnetic radiation from the particle to an observer at r.

If we ignore the velocity field in order to find the power of emitted EM radiation only, the radial component of Poynting's vector resulting from the Liénard–Wiechert fields can be calculated to be

$[\mathbf {S\cdot } {\hat {\mathbf {n} }}]={\frac {q^{2}}{16\pi ^{2}\varepsilon _{0}c}}\left\{{\frac {1}{R^{2}}}\left|{\frac {{\hat {\mathbf {n} }}\times [({\hat {\mathbf {n} }}-{\vec {\beta }})\times {\dot {\vec {\beta }}}]}{(1-{\vec {\beta }}\mathbf {\cdot } {\hat {\mathbf {n} }})^{3}}}\right|^{2}\right\}_{\text{retarded}}.\qquad \qquad (3)$

لاحظ أن

• The spatial relationship between β← and قالب:Overset determines the detailed angular power distribution.
• The relativistic effect of transforming from the rest frame of the particle to the observer's frame manifests itself by the presence of the factors (1 − β←⋅n̂) in the denominator of Eq. (3).
• For ultrarelativistic particles the latter effect dominates the whole angular distribution.

The energy radiated into per solid angle during a finite period of acceleration from t′ = T₁ to t′ = T₂ is

${\begin{aligned}{\frac {\mathrm {d} P}{\mathrm {d} {\mathit {\Omega }}}}&=R(t')^{2}\,[\mathbf {S} (t')\mathbf {\cdot } {\hat {\mathbf {n} }}(t')]\,{\frac {\mathrm {d} t}{\mathrm {d} t'}}=R(t')^{2}\,\mathbf {S} (t')\mathbf {\cdot } {\hat {\mathbf {n} }}(t')\,[1-{\vec {\beta }}(t')\mathbf {\cdot } {\hat {\mathbf {n} }}(t')]\\&={\frac {q^{2}}{16\pi ^{2}\varepsilon _{0}c}}\,{\frac {|{\hat {\mathbf {n} }}(t')\times \{[{\hat {\mathbf {n} }}(t')-{\vec {\beta }}(t')]\times {\dot {\vec {\beta }}}(t')\}|^{2}}{[1-{\vec {\beta }}(t')\mathbf {\cdot } {\vec {\mathbf {n} }}(t')]^{5}}}.\qquad \qquad (4)\end{aligned}}$

Integrating Eq. (4) over the all solid angles, we get the relativistic generalization of Larmor's formula

$P={\frac {q^{2}}{6\pi \varepsilon _{0}c}}\gamma ^{6}\left[\left|{\dot {\vec {\beta }}}\right|^{2}-\left|{\vec {\beta }}\times {\dot {\vec {\beta }}}\right|^{2}\right].\qquad (5)$

However, this also can be derived by relativistic transformation of the 4-acceleration in Larmor's formula.

 السرعة العمودية على التسارع (v ⟂ a): الإشعاع السنكروتروني

When the electron velocity approaches the speed of light, the emission pattern is sharply collimated forward.

When the charge is in instantaneous circular motion, its acceleration قالب:Overset is perpendicular to its velocity β←. Choosing a coordinate system such that instantaneously β← is in the z direction and قالب:Overset is in the x direction, with the polar and azimuth angles θ and φ defining the direction of observation, the general formula Eq. (4) reduces to

${\frac {\mathrm {d} P}{\mathrm {d} {\mathit {\Omega }}}}={\frac {q^{2}}{16\pi ^{2}\epsilon _{0}c}}{\frac {|{\dot {\vec {\beta }}}|^{2}}{(1-\beta \cos \theta )^{3}}}\left[1-{\frac {\sin ^{2}\theta \cos ^{2}\phi }{\gamma ^{2}(1-\beta \cos \theta )^{2}}}\right].\qquad (6)$

In the relativistic limit $(\gamma \gg 1)$, the angular distribution can be written approximately as

${\frac {\mathrm {d} P}{\mathrm {d} {\mathit {\Omega }}}}\simeq {\frac {2}{\pi }}{\frac {q^{2}}{c^{3}}}\gamma ^{6}{\frac {|{\dot {\mathbf {v} }}|^{2}}{(1+\gamma ^{2}\theta ^{2})^{3}}}\left[1-{\frac {4\gamma ^{2}\theta ^{2}\cos ^{2}\phi }{(1+\gamma ^{2}\theta ^{2})^{2}}}\right].\qquad \qquad (7)$

The factors (1 − βcosθ) in the denominators tip the angular distribution forward into a narrow cone like the beam of a headlight pointing ahead of the particle. A plot of the angular distribution (dP/dΩ vs. γθ) shows a sharp peak around θ = 0.

If we neglect any electric force on the particle, the total power radiated (over all solid angle) from Eq. (4) is

$P={\frac {q^{2}}{6\pi \epsilon _{0}c}}\left|{\dot {\vec {\beta }}}\right|^{2}\gamma ^{4}={\frac {q^{2}c}{6\pi \epsilon _{0}}}{\frac {\beta ^{4}\gamma ^{4}}{\rho ^{2}}}={\frac {q^{4}}{6\pi \epsilon _{0}m^{4}c^{5}}}B^{2}E^{2}\beta ^{2}={\frac {q^{4}}{6\pi \epsilon _{0}m^{4}c^{5}}}B^{2}(E^{2}-m^{2}c^{4}),\qquad (8)$

where E is the particle's total (kinetic plus rest) energy, B is the magnetic field, and ρ is the radius of curvature of the track in the field. Note that the radiated power is proportional to 1/m⁴, 1/ρ², and B². In some cases the surfaces of vacuum chambers hit by synchrotron radiation have to be cooled because of the high power of the radiation.

باستخدام

$B={\frac {E\beta }{q\,r\sin(\alpha )}},$

where α is the angle between the velocity and the magnetic field and r is the radius of the circular acceleration, the power emitted is:

$P={\frac {q^{2}}{6\pi \epsilon _{0}m^{4}c^{5}r^{2}\sin ^{2}(\alpha )}}E^{4}\beta ^{4}={\frac {q^{2}}{6\pi \epsilon _{0}m^{4}c^{5}r^{2}\sin ^{2}(\alpha )}}(E^{2}-m^{2}c^{4})^{2}.$

Thus the power emitted scales as energy to the fourth, and decreases with the square of the radius and the fourth power of particle mass. This radiation is what limits the energy of an electron-positron circular collider. Generally, proton-proton colliders are instead limited by the maximum magnetic field; this is why, for example, the LHC has a center-of-mass energy 70 times higher than the LEP even though the proton mass is 2000 times the electron mass.

 تكامل الإشعاع

The energy received by an observer (per unit solid angle at the source) is

${\frac {d^{2}W}{d\Omega }}=\int _{-\infty }^{\infty }{\frac {d^{2}P}{d\Omega }}dt=c\varepsilon _{0}\int _{-\infty }^{\infty }\left|R{\vec {E}}(t)\right|^{2}dt$

Using the Fourier transformation we move to the frequency space

${\frac {d^{2}W}{d\Omega }}=2c\varepsilon _{0}\int _{0}^{\infty }\left|R{\vec {E}}(\omega )\right|^{2}d\omega$

Angular and frequency distribution of the energy received by an observer (consider only the radiation field)

${\frac {d^{3}W}{d\Omega d\omega }}=2c\varepsilon _{0}R^{2}\left|{\vec {E}}(\omega )\right|^{2}={\frac {q^{2}}{4\pi \varepsilon _{0}4\pi ^{2}c}}\left|\int _{-\infty }^{\infty }{\frac {{\hat {n}}\times \left[\left({\hat {n}}-{\vec {\beta }}\right)\times {\dot {\vec {\beta }}}\right]}{\left(1-{\hat {n}}\cdot {\vec {\beta }}\right)^{2}}}e^{i\omega (t-{\hat {n}}\cdot {\vec {r}}(t)/c)}dt\right|^{2}.\qquad (9)$

Therefore, if we know the particle's motion, cross products term, and phase factor, we could calculate the radiation integral. However, calculations are generally quite lengthy (even for simple cases as for the radiation emitted by an electron in a bending magnet, they require Airy function or the modified Bessel functions).

 مثال 1: المغناطيس المنحني

 التكامل

مسار قوس محيط

مسار قوس محيط هو

${\vec {r}}(t)=\left(\rho \sin {\frac {\beta c}{\rho }}t,\rho \left(1-\cos {\frac {\beta c}{\rho }}t\right),0\right).$

In the limit of small angles we compute

${\hat {n}}\times \left({\hat {n}}\times {\vec {\beta }}\right)=\beta \left[-{\vec {\varepsilon }}_{\parallel }\sin \left({\frac {\beta ct}{\rho }}\right)+{\vec {\varepsilon }}_{\perp }\cos \left({\frac {\beta ct}{\rho }}\right)\sin \theta \right]$

$\omega \left(t-{\frac {{\hat {n}}\cdot {\vec {r}}(t)}{c}}\right)=\omega \left[t-{\frac {\rho }{c}}\sin \left({\frac {\beta ct}{\rho }}\right)\cos \theta \right]$

Substituting into the radiation integral and introducing

$\xi ={\frac {\rho \omega }{3c\gamma ^{3}}}\left(1+\gamma ^{2}\theta ^{2}\right)^{3/2}$

${\frac {d^{3}W}{d\Omega d\omega }}={\frac {3q^{2}}{16\pi ^{3}\varepsilon _{0}c}}\left({\frac {2\omega \rho }{3c\gamma ^{2}}}\right)^{2}\left(1+\gamma ^{2}\theta ^{2}\right)^{2}\left[K_{2/3}^{2}(\xi )+{\frac {\gamma ^{2}\theta ^{2}}{1+\gamma ^{2}\theta ^{2}}}K_{1/3}^{2}(\xi )\right]\qquad (10),$

حيث الدالة K is a modified Bessel function of the second kind.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 توزيع تردد الطاقة المنبعثة

Angular distribution of radiated energy

From Eq.(10), we observe that the radiation intensity is negligible for $\xi \gg 1$. Critical frequency is defined as the frequency when ξ = 1/2 and θ = 0. So,

$\omega _{\text{c}}={\frac {3}{2}}{\frac {c}{\rho }}\gamma ^{3},$

and critical angle is defined as the angle for which $\xi (\theta _{\text{c}})\simeq \xi (0)+1$ and is approximately

$\theta _{\text{c}}\simeq {\frac {1}{\gamma }}\left({\frac {2\omega _{\text{c}}}{\omega }}\right)^{1/3}$

For frequencies much larger than the critical frequency and angles much larger than the critical angle, the synchrotron radiation emission is negligible.

Integrating on all angles, we get the frequency distribution of the energy radiated.

${\frac {dW}{d\omega }}=\oint {\frac {d^{3}W}{d\omega d\Omega }}d\Omega ={\frac {{\sqrt {3}}e^{2}}{4\pi \varepsilon _{0}c}}\gamma {\frac {\omega }{\omega _{\text{c}}}}\int _{\omega /\omega _{\text{c}}}^{\infty }K_{5/3}(x)dx$

Frequency distribution of radiated energy

فإذا عرّفنا

$S(y)\equiv {\frac {9{\sqrt {3}}}{8\pi }}y\int _{y}^{\infty }K_{5/3}(x)dx$

$\int _{0}^{\infty }S(y)dy=1,$

حيث y = ω/ω_c. فإن

${\frac {dW}{d\omega }}={\frac {2q^{2}\gamma }{9\varepsilon _{0}c}}S(y).\qquad (11)$

Note that ${\frac {dW}{d\omega }}\sim {\frac {q^{2}}{4\pi \varepsilon _{0}c}}\left({\frac {\omega \rho }{c}}\right)^{1/3}$, if $\omega \ll \omega _{\text{c}}$, and ${\frac {dW}{d\omega }}\approx {\sqrt {\frac {3\pi }{2}}}{\frac {q^{2}}{4\pi \varepsilon _{0}c}}\gamma \left({\frac {\omega }{\omega _{\text{c}}}}\right)^{0.5}e^{-\omega /\omega _{\text{c}}}$, if $\omega \gg \omega _{\text{c}}$

The formula for spectral distribution of synchrotron radiation, given above, can be expressed in terms of a rapidly converging integral with no special functions involved (see also modified Bessel functions ) by means of the relation:

$\int _{\xi }^{\infty }K_{5/3}(x)dx={\frac {1}{\sqrt {3}}}\,\int _{0}^{\infty }\,{\frac {9+36x^{2}+16x^{4}}{(3+4x^{2}){\sqrt {1+x^{2}/3}}}}\exp \left[-\xi \left(1+{\frac {4x^{2}}{3}}\right){\sqrt {1+{\frac {x^{2}}{3}}}}\right]\ dx$

 انبعاث الإشعاع السنكروتروني كدالة في طاقة الشعاع

Relationship between power radiated and the photon energy

First, define the critical photon energy as

$\varepsilon _{c}=\hbar \omega _{\text{c}}={\frac {3}{2}}{\frac {\hbar c}{\rho }}\gamma ^{3}.$

Then, the relationship between radiated power and photon energy is shown in the graph on the right side. The higher the critical energy, the more photons with high energies are generated. Note that, there is no dependence on the energy at longer wavelength.

 استقطاب الإشعاع السنكروتروني

In Eq.(10), the first term $K_{2/3}^{2}(\xi )$ is the radiation power with polarization in the orbit plane, and the second term ${\frac {\gamma ^{2}\theta ^{2}}{1+\gamma ^{2}\theta ^{2}}}K_{1/3}^{2}(\xi )$ is the polarization orthogonal to the orbit plane.

In the orbit plane $\theta =0$, the polarization is purely horizontal. Integrating on all frequencies, we get the angular distribution of the energy radiated

${\frac {d^{2}W}{d\Omega }}=\int _{0}^{\infty }{\frac {d^{3}W}{d\omega d\Omega }}d\omega ={\frac {7q^{2}\gamma ^{5}}{64\pi \varepsilon _{0}\rho }}{\frac {1}{(1+\gamma ^{2}\theta ^{2})^{5/2}}}\left[1+{\frac {5}{7}}{\frac {\gamma ^{2}\theta ^{2}}{1+\gamma ^{2}\theta ^{2}}}\right].\qquad (12)$

Integrating on all the angles, we find that seven times as much energy is radiated with parallel polarization as with perpendicular polarization. The radiation from a relativistically moving charge is very strongly, but not completely, polarized in the plane of motion.

 المثال 2: المتموج undulator

 حل معادلة الحركة ومعادلة المتموج

يتكون المتموج من مصفوفة دورية من المغناطيسات، بحثي يعطوا مجال مغناطيسي جيبي.

${\vec {B}}=\left(0,B_{0}\sin(k_{\text{u}}z),0\right)$

undulator

حل معادلة الحركة هو

${\vec {r}}(t)={\frac {\lambda _{\text{u}}K}{2\pi \gamma }}\sin \omega _{\text{u}}t\cdot {\hat {x}}+\left({\bar {\beta _{z}}}ct+{\frac {\lambda _{\text{u}}K^{2}}{16\pi \gamma ^{2}}}\cos(2\omega _{\text{u}}t)\right)\cdot {\hat {z}}$

حيث

$K={\frac {qB_{0}\lambda _{\text{u}}}{2\pi mc}},$

و

${\bar {\beta _{z}}}=1-{\frac {1}{2\gamma ^{2}}}\left(1+{\frac {K^{2}}{2}}\right),$

and the parameter $K$ is called the undulator parameter.

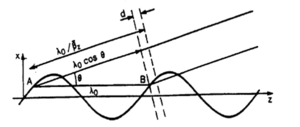

Constructive interference of the beam in the undulator

Condition for the constructive interference of radiation emitted at different poles is

$d={\frac {\lambda _{\text{u}}}{\bar {\beta }}}-\lambda _{\text{u}}\cos \theta =n\lambda$

Expanding $\cos \theta \approx 1-{\frac {\theta ^{2}}{2}}$ and neglecting the terms $O(\theta ^{2})$ in the resulting equation, one obtains

$\lambda _{n}={\frac {\lambda _{\text{u}}}{2\gamma ^{2}n}}\left({\frac {1+{\frac {K^{2}}{2}}+\gamma ^{2}\theta ^{2}}{\bar {\beta }}}\right)$

For ${\bar {\beta }}\rightarrow 1$, one finally gets

$\lambda _{n}={\frac {\lambda _{\text{u}}}{2\gamma ^{2}n}}\left(1+{\frac {K^{2}}{2}}+\gamma ^{2}\theta ^{2}\right)\qquad (13).$

هذه المعادلة تسمى معادلة المتموج undulator equation.

 الإشعاع من المتموج

تكامل الإشعاع هو

${\frac {d^{3}W}{d\Omega d\omega }}={\frac {q^{2}}{4\pi \varepsilon _{0}4\pi ^{2}c}}\left|\int _{-\infty }^{\infty }{\frac {{\hat {n}}\times \left[\left({\hat {n}}-{\vec {\beta }}\right)\times {\dot {\vec {\beta }}}\right]}{\left(1-{\hat {n}}\cdot {\vec {\beta }}\right)^{2}}}e^{i\omega (t-{\hat {n}}\cdot {\vec {r}}(t)/c)}dt\right|^{2}.$

Using the periodicity of the trajectory, we can split the radiation integral into a sum over $N$ terms, where $2N$ is the total number of bending magnets of the undulator.

${\frac {d^{3}W}{d\Omega d\omega }}={\frac {q^{2}\omega ^{2}}{4\pi \varepsilon _{0}4\pi ^{2}c}}\left|\int _{-\lambda _{u}/2{\bar {\beta }}c}^{\lambda _{u}/2{\bar {\beta }}c}{\hat {n}}\times \left({\hat {n}}\times {\vec {\beta }}\right)e^{i\omega (t-{\hat {n}}\cdot {\vec {r}}(t)/c)}dt\right|^{2}\left|1+e^{i\delta }+e^{2i\delta }+\cdots +e^{i(N_{u}-1)\delta }\right|^{2},\qquad (14)$

where 　${\bar {\beta }}=\beta \left(1-{\frac {K^{2}}{4\gamma ^{2}}}\right)$

Peak frequencies become sharp as the number N increases

, and $\delta ={\frac {2\pi \omega }{\omega _{\text{res}}(\theta )}}$,　$\omega _{\text{res}}(\theta )={\frac {2\pi c}{\lambda _{\text{res}}(\theta )}}$,　and　$\lambda _{\text{res}}(\theta )={\frac {\lambda _{u}}{2\gamma ^{2}}}\left(1+{\frac {K^{2}}{2}}+\gamma ^{2}\theta ^{2}\right).$

Only odd harmonics are radiated on-axis

Off-axis radiation contains many harmonics

The radiation integral in an undulator can be written as

${\frac {d^{3}W}{d\Omega d\omega }}={\frac {q^{2}\gamma ^{2}N^{2}}{4\pi \varepsilon _{0}c}}L\left(N{\frac {\Delta \omega _{n}}{\omega _{\text{res}}(\theta )}}\right)F_{n}(K,\theta ,\phi )\qquad (15).$

where $\Delta \omega _{n}=\omega -n\omega _{\text{res}}$ is the frequency difference to the n-th harmonic. The sum of δ generates a series of sharp peaks in the frequency spectrum harmonics of fundamental wavelength

$L\left(N{\frac {\Delta \omega _{n}}{\omega _{\text{res}}(\theta )}}\right)={\frac {\sin ^{2}\left(N\pi \Delta \omega _{n}/\omega _{\text{res}}(\theta )\right)}{N^{2}\left(\pi \Delta \omega _{n}/\omega _{\text{res}}(\theta )\right)^{2}}},$

and F_n depends on the angles of observations and K

$F_{n}(K,\theta ,\phi )\propto \left|\int _{-\lambda _{u}/2{\bar {\beta }}c}^{\lambda _{u}/2{\bar {\beta }}c}{\hat {n}}\times \left({\hat {n}}\times {\vec {\beta }}\right)e^{i\omega (t-{\hat {n}}\cdot {\vec {r}}(t)/c)}dt\right|^{2}.$

On the axis (θ = 0, φ = 0), the radiation integral becomes

${\frac {d^{3}W}{d\Omega d\omega }}={\frac {e^{2}\gamma ^{2}N^{2}}{4\pi \varepsilon _{0}c}}L\left(N{\frac {\Delta \omega _{n}}{\omega _{\text{res}}(0)}}\right)F_{n}(K,0,0)$

و

$F_{n}(K,0,0)={\frac {n^{2}K^{2}}{1+K^{2}/2}}\left[J_{\frac {n+1}{2}}(Z)-J_{\frac {n-1}{2}}(Z)\right]^{2},$

where $Z={\frac {nK^{2}}{4(1+K^{2}/2)}}.$

لاحظ أن only odd harmonics are radiated on-axis, and as K increases higher harmonic becomes stronger.
