دفع نووي

(تم التحويل من Nuclear propulsion)

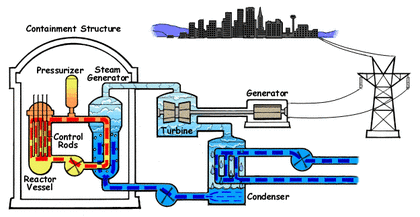

المفاعلات التي تعمل بالماء المضغوط هي المفاعلات الأكثر استخداماً في السفن والغواصات. يوضح الرسم التخطيطي مبادئ التشغيل. المبرد الأساسي باللون البرتقالي والمبرد الثانوي (البخار ومياه التغذية لاحقًا) باللون الأزرق.

الدفع النووي (Nuclear propulsion)، يتضمن مجموعة واسعة من طرق الدفع التي تستخدم شكلًاً من أشكال التفاعل النووي كمصدر أساسي للطاقة.[1] تعود فكرة استخدام المواد النووية للدفع إلى بداية القرن العشرين. ففي عام 1903، طُرح فرض مفاده أن المادة المشعة، الراديوم، قد تكون وقوداً مناسباً للمحركات لدفع السيارات والطائرات والقوارب.[2] التقط هربرت ولز هذه الفكرة في عمله الخيالي العالم يتحرر الذي نشره عام 1914.[3] تستخدم العديد من حاملات الطائرات والغواصات حالياً مفاعلات نووية تعمل اليورانيوم والتي يمكنها توفير الدفع لفترات طويلة دون الحاجة إلى إعادة التزود بالوقود. وهناك أيضاً تطبيقات في قطاع الفضاء باستخدام محركات الصواريخ الحرارية النووية والصواريخ الكهربائية النووية والتي قد تكون أكثر كفاءة من محركات الصواريخ التقليدية.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

السفن والغواصات والطوربيدات

المقالة الرئيسية: الدفع البحري النووي
يوإس‌إس Nimitz (CVN-68), lead ship of the Nimitz، طراز of nuclear-powered aircraft carriers
A Delta-class nuclear-powered submarine

Nuclear-powered vessels are mainly military submarines, and aircraft carriers.[1] Russia is the only country that currently has nuclear-powered civilian surface ships, mainly icebreakers. The US Navy currently (as of 2022) has 11 aircraft carriers and 70 submarines in service, that are all powered by nuclear reactors. For more detailed articles see:


الاستخدامات البحرية المدنية

الاستخدامات البحرية العسكرية

الطوربيدات

المقالة الرئيسية: نظام سيتس-6 المحيطي متعدد الأغراض

Russia's Channel One Television news broadcast a picture and details of a nuclear-powered torpedo called Status-6 on about 12 November 2015. The torpedo was stated as having a range of up to 10,000 km, a cruising speed of 100 knots, and an operational depth of up to 1000 metres below the surface. The torpedo carried a 100-megaton nuclear warhead.[4]

One of the suggestions emerging in the summer of 1958 from the first meeting of the scientific advisory group that became JASON was for "a nuclear-powered torpedo that could roam the seas almost indefinitely".[5]

الطائرات والصواريخ

المقالة الرئيسية: طائرة تعمل بالطاقة النووية

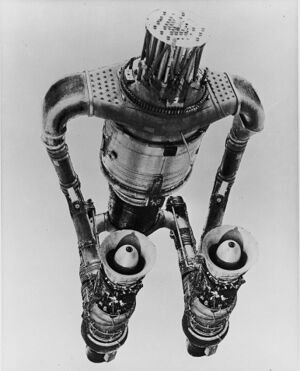

A picture of an Aircraft Nuclear Propulsion system, known as HTRE-3 (Heat Transfer Reactor Experiment no. 3). The central EBR-1 based reactor took the place of chemical fuel combustion to heat the air. The reactor rapidly raised the temperature via an air heat exchanger and powered the dual J47 engines in a number of ground tests.[6]

Research into nuclear-powered aircraft was pursued during the Cold War by the United States and the Soviet Union as they would presumably allow a country to keep nuclear bombers in the air for extremely long periods of time, a useful tactic for nuclear deterrence. Neither country created any operational nuclear aircraft.[1] One design problem, never adequately solved, was the need for heavy shielding to protect the crew from radiation sickness. Since the advent of ICBMs in the 1960s the tactical advantage of such aircraft was greatly diminished and respective projects were cancelled.[1] Because the technology was inherently dangerous it was not considered in non-military contexts. Nuclear-powered missiles were also researched and discounted during the same period.[1]

الطائرات

الصواريخ

سفن الفضاء

المقالة الرئيسية: الطاقة النووية في الفضاء

Many types of nuclear propulsion have been proposed, and some of them (e.g., NERVA) tested for spacecraft applications.[9]

دفع النبضة النووية

المقالة الرئيسية: دفع النبضة النووية

الصواريخ الحرارية النووية

المقالة الرئيسية: صاروخ حراري نووي
Bimodal nuclear thermal rockets conduct nuclear fission reactions similar to those employed at nuclear power plants including submarines. The energy is used to heat the liquid hydrogen propellant. The vehicle depicted is the "Copernicus" an upper stage assembly being designed for the Space Launch System (2010).

Bimodal nuclear thermal rockets conduct nuclear fission reactions similar to those employed at nuclear power plants including submarines. The energy is used to heat the liquid hydrogen propellant. Advocates of nuclear-powered spacecraft point out that at the time of launch, there is almost no radiation released from the nuclear reactors. Nuclear-powered rockets are not used to lift off the Earth. Nuclear thermal rockets can provide great performance advantages compared to chemical propulsion systems. Nuclear power sources could also be used to provide the spacecraft with electrical power for operations and scientific instrumentation.[12] Examples:

النفاث التضاغطي


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

النووية المباشرة

الكهربائية النووية

تطوير وكالة الفضاء الروسية

المقالة الرئيسية: TEM (دفع نووي)

Anatolij Perminov, head of the Russian Federal Space Agency, announced[when?] that it is going to develop a nuclear-powered spacecraft for deep space travel.[13][14] Preliminary design was done by 2013, and 9 more years are planned for development (in space assembly). The price is set at 17 billion rubles (600 million dollars).[15] The nuclear propulsion would have mega-watt class,[16][17] provided necessary funding, Roscosmos Head stated.

This system would consist of a space nuclear power and a matrix of ion engines. "...Hot inert gas temperature of 1500 °C from the reactor turns turbines. The turbine turns the generator and compressor, which circulates the working fluid in a closed circuit. The working fluid is cooled in the radiator. The generator produces electricity for the same ion (plasma) engine..."[18][المصدر لا يؤكد ذلك]

According to him, the propulsion will be able to support human mission to Mars, with cosmonauts staying on the Red planet for 30 days. This journey to Mars with nuclear propulsion and a steady acceleration would take six weeks, instead of eight months by using chemical propulsion – assuming thrust of 300 times higher than that of chemical propulsion.[19][20]

المركبات البرية

السيارات

The idea of making cars that used radioactive material, radium, for fuel dates back to at least 1903. Analysis of the concept in 1937 indicated that the driver of such a vehicle might need a 50-ton lead barrier to shield them from radiation.[21]

In 1941, a Caltech physicist named R. M. Langer espoused the idea of a car powered by uranium-235 in the January edition of Popular Mechanics. He was followed by William Bushnell Stout, designer of the Stout Scarab and former Society of Engineers president, on 7 August 1945 in The New York Times. The problem of shielding the reactor continued to render the idea impractical.[22] In December 1945, a John Wilson of London, announced he had created an atomic car. This created considerable interest. The Minister of Fuel and Power along with a large press contingent turned out to view it. The car did not show and Wilson claimed that it had been sabotaged. A later court case found that he was a fraud and there was no nuclear-powered car.[23][24]

Despite the shielding problem, through the late 1940s and early 1950s debate continued around the possibility of nuclear-powered cars. The development of nuclear-powered submarines and ships, and experiments to develop a nuclear-powered aircraft at that time kept the idea alive.[25] Russian papers in the mid-1950s reported the development of a nuclear-powered car by Professor V P Romadin, but again shielding proved to be a problem.[26] It was claimed that its laboratories had overcome the shielding problem with a new alloy that absorbed the rays.[27]

In 1958, at the height of the 1950s American automobile culture there were at least four theoretical nuclear-powered concept cars proposed, the American Ford Nucleon and Studebaker Packard Astral, as well as the French Simca Fulgur designed by Robert Opron[28][29] and the Arbel Symétric. Apart from these concept models, none were built and no automotive nuclear power plants ever made. Chrysler engineer C R Lewis had discounted the idea in 1957 because of estimates that an 80,000 lb (36,000 kg) engine would be required by a 3,000 lb (1,400 kg) car. His view was that an efficient means of storing energy was required for nuclear power to be practical.[30] Despite this, Chrysler's stylists in 1958 drew up some possible designs.

In 1959 it was reported that Goodyear Tire and Rubber Company had developed a new rubber compound that was light and absorbed radiation, obviating the need for heavy shielding. A reporter at the time considered it might make nuclear-powered cars and aircraft a possibility.[31]

Ford made another potentially nuclear-powered model in 1962 for the Seattle World's Fair, the Ford Seattle-ite XXI.[32][33] This also never went beyond the initial concept.

In 2009, for the hundredth anniversary of General Motors' acquisition of Cadillac, Loren Kulesus created concept art depicting a car powered by thorium.[34]

أخرى

The Chrysler TV-8 was an experimental concept tank designed by Chrysler in the 1950s.[1] The tank was intended to be a nuclear-powered medium tank capable of land and amphibious warfare. The design was never mass-produced.[35]

The X-12 was a nuclear powered locomotive, proposed in a feasibility study done in 1954 at the University of Utah.[36]

The Mars rovers Curiosity and Perseverance are powered by a radioisotope thermoelectric generator (RTG), like the successful Viking 1 and Viking 2 Mars landers in 1976.[37][38]

انظر أيضاً

المصادر

  1. ^ أ ب ت ث ج ح خ Trakimavičius, Lukas. "The Future Role of Nuclear Propulsion in the Military" (PDF). NATO Energy Security Centre of Excellence (in الإنجليزية). Archived from the original (PDF) on 2021-10-18. Retrieved 2021-10-15.
  2. ^ Some practical uses of radium rays, The Republic, Sunday, September 13, 1903
  3. ^ The new source of energy, The World Set Free, H G Wells, Collins, London and Glasgow, 1956 edition, page 55
  4. ^ Russia reveals giant nuclear torpedo in state TV 'leak', BBC news, 12 November 2015 - retrieved 27 November 2015
  5. ^ Science Magazine, 29 November 1991, p.1284
  6. ^ Thornton, G; Blumbeg, B. (January 1961). "Aircraft Nuclear Propulsion Heat Transfer Reactor Experiments Fulfill Test Goals". Nucleonics. McGraw-Hill. 19 (1). ISSN 0096-6207.
  7. ^ Norris, Guy (14 October 2014). "False Starts For Aviation's Atomic Age". Aviation Week. Retrieved 17 October 2014.
  8. ^ Gady, Franz-Stefan (2 March 2018). "Russia Reveals 'Unstoppable' Nuclear-Powered Cruise Missile". The Diplomat. Retrieved 26 March 2018.
  9. ^ Moeckel, W. E. (August 1969). Propulsion Systems for Manned Exploration of the Solar System (NASA TM X-1864). U. S. National Aeronautics and Space Administration. Archived from the original. You must specify the date the archive was made using the |archivedate= parameter. http://large.stanford.edu/courses/2013/ph241/micks1/docs/nasa-tm-x-1864.pdf. Retrieved on January 15, 2023.
  10. ^ Schmidt, G. R.; Bonometti, J. A.; Morton, P. J. (July 2000). Nuclear Pulse Propulsion: Orion and Beyond (AIAA 2000-3856). Am. Inst. Aero. Astro.. Archived from the original. You must specify the date the archive was made using the |archivedate= parameter. http://large.stanford.edu/courses/2013/ph241/micks1/docs/aiaa-2000-3856.pdf. Retrieved on January 15, 2023.
  11. ^ External Pulsed Plasma Propulsion (EPPP). NASA. January 1, 1999. Archived from the original. You must specify the date the archive was made using the |archivedate= parameter. https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20000021516.pdf. Retrieved on January 15, 2023.
  12. ^ Contact: Gynelle C. Steele (July 15, 2005). "F-22 Raptor Stealth". NASA Glenn's Research & Technology. Archived from the original on February 19, 2006. Retrieved 2009-07-08.
  13. ^ "Russian Space Agency Announces Plans to Build Nuclear-Powered Deep Space Rocket". Archived from the original on 2017-04-20. Retrieved 2017-04-20.
  14. ^ Russia And US To Discuss Nuke-Powered Spaceship Project
  15. ^ Russians to ride a nuclear-powered spacecraft to Mars // 2009
  16. ^ Page, Lewis (5 April 2011). "Russia, NASA to hold talks on nuclear-powered spacecraft. Muscovites have the balls but not the money". The Register. Retrieved 26 December 2013.
  17. ^ "Interview: Academician Anatoly Koroteyev An Inside Look at Russia's Nuclear Power Propulsion System" (PDF). 21st Century Science and Technology. No. Fall/Winter 2012-2013. 21st Century. 3 December 2012. Retrieved 26 December 2013.
  18. ^ (in روسية) Academician Anatoly Koroteev: "Nuclear power can provide a qualitative leap in the development of space" Archived 2014-07-14 at the Wayback Machine
  19. ^ "Space Propulsion for Martian Mission may be Developed in 6-9 Years". Archived from the original on 2011-04-05. Retrieved 2011-07-11.
  20. ^ Russia Leads Nuclear Space Race After U.S. Drops Out
  21. ^ The Science Review, Issues 1-12, University of Melbourne Science Club, Melbourne University, 1937, page 22
  22. ^ Automobile Quarterly, Volume 31 Number 1, 1992, pages 14-29
  23. ^ First Atomic Car "sabotaged", Townsville Daily Bulletin, Queensland, Australia, Monday 3 December 1945 page 2
  24. ^ "Atomic Car" hoax - Elderly inventor gets goal sentence, Cairns Post, Queensland Australia, Monday 22 July 1946, page 3
  25. ^ "Benson Ford poses challenge on atomic powered automobiles". The Brooklyn Daily Eagle. October 2, 1951. p. 3. Retrieved June 4, 2015 – via Newspapers.com. open access
  26. ^ Reading Eagle, Sunday, February 20, 1955, page 8
  27. ^ Atom-powered Automobile Claimed Russian, The victoria Advocate, Victoria, Texas, Sunday, January 30, 1955, page 7
  28. ^ "Radioactive cars of the twentieth century". Archived from the original on 26 October 2018. Retrieved 26 April 2012.
  29. ^ "Une anticipation Simca : la "fulgur"" (in الفرنسية). Retrieved 26 April 2012.
  30. ^ Hearst Magazines (April 1957). "The Atom powered carPopular Mechanics". Popular Mechanics. Hearst Magazines. p. 141.
  31. ^ Advent of Atom Powered Plane Speeded, Ray Cromley, The Victoria Advocate, Victoria, Texas, Wednesday, June 24, 1959, page 4
  32. ^ Hanlon, Mike (4 June 2004). "Ford Seattle-ite: one of history's most significant concept cars". Gizmag.com. Retrieved 26 April 2012.
  33. ^ "1962 Ford Seattle-ite XXI". Archived from the original on 12 May 2013. Retrieved 26 April 2012.
  34. ^ WTF? Cadillac World Thorium Fuel Concept?
  35. ^ Hunnicutt, RP (1990). A History of the American Main Battle Tank, Volume 2: Abrams. United States: Presidio. p. 36. ISBN 9780891413882.
  36. ^ Abel, G.K.; Borst, L.B.; Bowie, D.M.; Petty, K.W.; Stover, B.J.; Van Dilla, M.A. (1954), An Atomic Locomotive, https://babel.hathitrust.org/cgi/pt?id=mdp.39015020157130, retrieved on 2023-12-14
  37. ^ "Multi-Mission Radioisotope Thermoelectric Generator" (PDF). NASA/JPL. January 1, 2008. Archived from the original (PDF) on August 13, 2012. Retrieved August 6, 2012.
  38. ^ "Mars Exploration: Radioisotope Power and Heating for Mars Surface Exploration" (PDF). NASA/JPL. April 18, 2006. Archived from the original (PDF) on October 12, 2012. Retrieved September 7, 2009.

قراءات إضافية

  • Bussard, R.; DeLauer, R. (1958). 'Nuclear Rocket Propulsion'. McGraw-Hill.
  • Bussard, R. (1965). 'Fundamentals of Nuclear Flight'. McGraw-Hill.
  • Cushin, Harry (April 1951). "Atomic Power — In your car". Motor Trend. Archived from the original on 2015-05-13. Retrieved 2012-04-23.


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
