منساب هوائي

هذا المقال هو عن airfoils. إذا كنت تريد other types of foil، انظر Foil (disambiguation).

Examples of aerofoils in nature and in or on various vehicles. The dolphin flipper at bottom left obeys the same principles in a different fluid medium; it is an example of a hydrofoil.

المُنساب الهوائي (airfoil بالإنگليزية الأمريكية) أو aerofoil (بالإنگليزية البريطانية) هو cross-sectional shape of an object whose motion through a gas is capable of generating significant lift, such as a wing, a sail, or the blades of propeller, rotor, or turbine.

A solid body moving through a fluid produces an aerodynamic force. The component of this force perpendicular to the relative freestream velocity is called lift. The component parallel to the relative freestream velocity is called drag. An airfoil is a streamlined shape that is capable of generating significantly more lift than drag. Airfoils designed for use at different speeds differ in their geometry: those for subsonic flight generally have a rounded leading edge, while those designed for supersonic flight tend to be slimmer with a sharp leading edge. All have a sharp trailing edge. Foils of similar function designed with water as the working fluid are called hydrofoils.

The lift on an airfoil is primarily the result of its angle of attack. When oriented at a suitable angle, the airfoil deflects the oncoming air (for fixed-wing aircraft, a downward force), resulting in a force on the airfoil in the direction opposite to the deflection. This force is known as aerodynamic force and can be resolved into two components: lift and drag. Most foil shapes require a positive angle of attack to generate lift, but cambered airfoils can generate lift at zero angle of attack. This "turning" of the air in the vicinity of the airfoil creates curved streamlines, resulting in lower pressure on one side and higher pressure on the other. This pressure difference is accompanied by a velocity difference, via Bernoulli's principle, so the resulting flowfield about the airfoil has a higher average velocity on the upper surface than on the lower surface. In some situations (e.g. inviscid potential flow) the lift force can be related directly to the average top/bottom velocity difference without computing the pressure by using the concept of circulation and the Kutta–Joukowski theorem.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 Overview

Streamlines around a NACA 0012 airfoil at moderate angle of attack

Lift and drag curves for a typical airfoil

The wings and stabilizers of fixed-wing aircraft, as well as helicopter rotor blades, are built with airfoil-shaped cross sections. Airfoils are also found in propellers, fans, compressors and turbines. Sails are also airfoils, and the underwater surfaces of sailboats, such as the centerboard, rudder, and keel, are similar in cross-section and operate on the same principles as airfoils. Swimming and flying creatures and even many plants and sessile organisms employ airfoils/hydrofoils: common examples being bird wings, the bodies of fish, and the shape of sand dollars. An airfoil-shaped wing can create downforce on an automobile or other motor vehicle, improving traction.

When the wind is obstructed by an object such as a flat plate, a building, or the deck of a bridge, the object will experience drag and also an aerodynamic force perpendicular to the wind. This does not mean the object qualifies as an airfoil. Airfoils are highly-efficient lifting shapes, able to generate more lift than similarly sized flat plates of the same area, and able to generate lift with significantly less drag. Airfoils are used in the design of aircraft, propellers, rotor blades, wind turbines and other applications of aeronautical engineering.

A lift and drag curve obtained in wind tunnel testing is shown on the right. The curve represents an airfoil with a positive camber so some lift is produced at zero angle of attack. With increased angle of attack, lift increases in a roughly linear relation, called the slope of the lift curve. At about 18 degrees this airfoil stalls, and lift falls off quickly beyond that. The drop in lift can be explained by the action of the upper-surface boundary layer, which separates and greatly thickens over the upper surface at and past the stall angle. The thickened boundary layer's displacement thickness changes the airfoil's effective shape, in particular it reduces its effective camber, which modifies the overall flow field so as to reduce the circulation and the lift. The thicker boundary layer also causes a large increase in pressure drag, so that the overall drag increases sharply near and past the stall point.

Airfoil design is a major facet of aerodynamics. Various airfoils serve different flight regimes. Asymmetric airfoils can generate lift at zero angle of attack, while a symmetric airfoil may better suit frequent inverted flight as in an aerobatic airplane. In the region of the ailerons and near a wingtip a symmetric airfoil can be used to increase the range of angles of attack to avoid spin–stall. Thus a large range of angles can be used without boundary layer separation. Subsonic airfoils have a round leading edge, which is naturally insensitive to the angle of attack. The cross section is not strictly circular, however: the radius of curvature is increased before the wing achieves maximum thickness to minimize the chance of boundary layer separation. This elongates the wing and moves the point of maximum thickness back from the leading edge.

Supersonic airfoils are much more angular in shape and can have a very sharp leading edge, which is very sensitive to angle of attack. A supercritical airfoil has its maximum thickness close to the leading edge to have a lot of length to slowly shock the supersonic flow back to subsonic speeds. Generally such transonic airfoils and also the supersonic airfoils have a low camber to reduce drag divergence. Modern aircraft wings may have different airfoil sections along the wing span, each one optimized for the conditions in each section of the wing.

Movable high-lift devices, flaps and sometimes slats, are fitted to airfoils on almost every aircraft. A trailing edge flap acts similarly to an aileron; however, it, as opposed to an aileron, can be retracted partially into the wing if not used.

A laminar flow wing has a maximum thickness in the middle camber line. Analyzing the Navier–Stokes equations in the linear regime shows that a negative pressure gradient along the flow has the same effect as reducing the speed. So with the maximum camber in the middle, maintaining a laminar flow over a larger percentage of the wing at a higher cruising speed is possible. However, some surface contamination will disrupt the laminar flow, making it turbulent. For example, with rain on the wing, the flow will be turbulent. Under certain conditions, insect debris on the wing will cause the loss of small regions of laminar flow as well. Before NASA's research in the 1970s and 1980s the aircraft design community understood from application attempts in the WW II era that laminar flow wing designs were not practical using common manufacturing tolerances and surface imperfections. That belief changed after new manufacturing methods were developed with composite materials (e.g. laminar-flow airfoils developed by F. X. Wortmann for use with wings made of fibre-reinforced plastic). Machined metal methods were also introduced. NASA's research in the 1980s revealed the practicality and usefulness of laminar flow wing designs and opened the way for laminar-flow applications on modern practical aircraft surfaces, from subsonic general aviation aircraft to transonic large transport aircraft, to supersonic designs.

Schemes have been devised to define airfoils – an example is the NACA system. Various airfoil generation systems are also used. An example of a general purpose airfoil that finds wide application, and pre–dates the NACA system, is the Clark-Y. Today, airfoils can be designed for specific functions by the use of computer programs.

 مصطلحات الانسيابيات الهوائية

Airfoil nomenclature

The various terms related to airfoils are defined below:

• The suction surface (a.k.a. upper surface) is generally associated with higher velocity and lower static pressure.
• The pressure surface (a.k.a. lower surface) has a comparatively higher static pressure than the suction surface. The pressure gradient between these two surfaces contributes to the lift force generated for a given airfoil.

The geometry of the airfoil is described with a variety of terms :

• The leading edge is the point at the front of the airfoil that has maximum curvature (minimum radius).
• The trailing edge is defined similarly as the point of maximum curvature at the rear of the airfoil.
• The chord line is the straight line connecting leading and trailing edges. The chord length, or simply chord, $c$, is the length of the chord line. That is the reference dimension of the airfoil section.

Different definitions of airfoil thickness

An airfoil designed for winglets (PSU 90-125WL)

The shape of the airfoil is defined using the following geometrical parameters:

• The mean camber line or mean line is the locus of points midway between the upper and lower surfaces. Its shape depends on the thickness distribution along the chord;
• The thickness of an airfoil varies along the chord. It may be measured in either of two ways:
  • Thickness measured perpendicular to the camber line. This is sometimes described as the "American convention";
  • Thickness measured perpendicular to the chord line. This is sometimes described as the "British convention".

Some important parameters to describe an airfoil's shape are its camber and its thickness. For example, an airfoil of the NACA 4-digit series such as the NACA 2415 (to be read as 2 – 4 – 15) describes an airfoil with a camber of 0.02 chord located at 0.40 chord, with 0.15 chord of maximum thickness.

Finally, important concepts used to describe the airfoil's behaviour when moving through a fluid are:

• The aerodynamic center, which is the chord-wise length about which the pitching moment is independent of the lift coefficient and the angle of attack.
• The center of pressure, which is the chord-wise location about which the pitching moment is zero.

 Thin airfoil theory

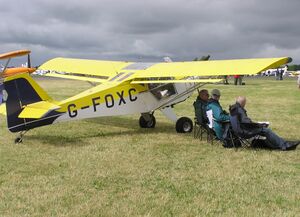

An airfoil section is displayed at the tip of this Denney Kitfox aircraft, built in 1991.

Airfoil of a Kamov Ka-26 helicopter's lower rotor blade

Thin airfoil theory is a simple theory of airfoils that relates angle of attack to lift for incompressible, inviscid flows. It was devised by German mathematician Max Munk and further refined by British aerodynamicist Hermann Glauert and others in the 1920s. The theory idealizes the flow around an airfoil as two-dimensional flow around a thin airfoil. It can be imagined as addressing an airfoil of zero thickness and infinite wingspan.

Thin airfoil theory was particularly notable in its day because it provided a sound theoretical basis for the following important properties of airfoils in two-dimensional inviscid flow:

1. on a symmetric airfoil, the center of pressure and aerodynamic center are coincident and lie exactly one quarter of the chord behind the leading edge.
2. on a cambered airfoil, the aerodynamic center lies exactly one quarter of the chord behind the leading edge, but the position of the center of pressure moves when the angle of attack changes.
3. the slope of the lift coefficient versus angle of attack line is $2\pi \!$ units per radian.

As a consequence of (3), the section lift coefficient of a symmetric airfoil of infinite wingspan is:

$\ c_{l}=2\pi \alpha$

where $c_{l}\!$ is the section lift coefficient,

$\alpha \!$ is the angle of attack in radians, measured relative to the chord line.

(The above expression is also applicable to a cambered airfoil where $\alpha \!$ is the angle of attack measured relative to the zero-lift line instead of the chord line.)

Also as a consequence of (3), the section lift coefficient of a cambered airfoil of infinite wingspan is:

$\ c_{l}=c_{l_{0}}+2\pi \alpha$

where $\ c_{l_{0}}$ is the section lift coefficient when the angle of attack is zero.

Thin airfoil theory does not account for the stall of the airfoil, which usually occurs at an angle of attack between 10° and 15° for typical airfoils. In the mid-late 2000s, however, a theory predicting the onset of leading-edge stall was proposed by Wallace J. Morris II in his doctoral thesis. Morris's subsequent refinements contain the details on the current state of theoretical knowledge on the leading-edge stall phenomenon. Morris's theory predicts the critical angle of attack for leading-edge stall onset as the condition at which a global separation zone is predicted in the solution for the inner flow. Morris's theory demonstrates that a subsonic flow about a thin airfoil can be described in terms of an outer region, around most of the airfoil chord, and an inner region, around the nose, that asymptotically match each other. As the flow in the outer region is dominated by classical thin airfoil theory, Morris's equations exhibit many components of thin airfoil theory.

 اشتقاق نظري المُنساب الهوائي

من أعلى لأسفل:
• Laminar flow airfoil for a RC park flyer
• Laminar flow airfoil for a RC pylon racer
• Laminar flow airfoil for a manned propeller aircraft
• Laminar flow at a jet airliner airfoil
• Stable airfoil used for flying wings
• Aft loaded airfoil allowing for a large main spar and late stall
• Transonic supercritical airfoil
• Supersonic leading edge airfoil

  laminar flow

  turbulent flow

  subsonic stream

  supersonic flow volume

The airfoil is modeled as a thin lifting mean-line (camber line). The mean-line, y(x), is considered to produce a distribution of vorticity $\gamma (s)$ along the line, s. By the Kutta condition, the vorticity is zero at the trailing edge. Since the airfoil is thin, x (chord position) can be used instead of s, and all angles can be approximated as small.

From the Biot–Savart law, this vorticity produces a flow field $w(x)$ where

$w(x)={\frac {1}{(2\pi )}}\int _{0}^{c}{\frac {\gamma (x')}{(x-x')}}\,dx'$

$x$ is the location where induced velocity is produced, $x'$ is the location of the vortex element producing the velocity and $c$ is the chord length of the airfoil.

Since there is no flow normal to the curved surface of the airfoil, $w(x)$ balances that from the component of main flow $V$, which is locally normal to the plate – the main flow is locally inclined to the plate by an angle $\alpha -dy/dx$. That is:

$V\;(\alpha -dy/dx)=w(x)={\frac {1}{(2\pi )}}\int _{0}^{c}{\frac {\gamma (x')}{(x-x')}}\,dx'.$

This integral equation can be solved for $\gamma (x)$, after replacing x by

$x=c\cdot {\frac {1-\cos(\theta )}{2}},$

as a Fourier series in $A_{n}\sin(n\theta )$ with a modified lead term $A_{0}(1+\cos(\theta ))/\sin(\theta )$.

That is

${\frac {\gamma (\theta )}{(2V)}}=A_{0}{\frac {(1+\cos(\theta ))}{\sin(\theta )}}+\sum A_{n}\sin(n\theta ))$

(These terms are known as the Glauert integral).

The coefficients are given by

$A_{0}=\alpha -{\frac {1}{\pi }}\int _{0}^{\pi }\left({\frac {dy}{dx}}\right)d\theta$

and

$A_{n}={\frac {2}{\pi }}\int _{0}^{\pi }\left({\frac {dy}{dx}}\right)\cos(n\theta )\;d\theta .$

By the Kutta–Joukowski theorem, the total lift force F is proportional to

$\rho V\int _{0}^{c}\gamma (x)\,dx$

and its moment M about the leading edge to

$\rho V\int _{0}^{c}x\;\gamma (x)\,dx.$

The calculated Lift coefficient depends only on the first two terms of the Fourier series, as

$C_{L}=2\pi (A_{0}+A_{1}/2).$

The moment M about the leading edge depends only on $A_{0},A_{1}$ and $A_{2}$, as

$C_{M}=-0.5\pi (A_{0}+A_{1}-A_{2}/2).$

The moment about the 1/4 chord point will thus be

$C_{M}(1/4c)=-\pi /4(A_{1}-A_{2}).$

From this it follows that the center of pressure is aft of the 'quarter-chord' point 0.25 c, by

$\Delta x/c=\pi /4((A_{1}-A_{2})/C_{L}).$

The aerodynamic center, AC, is at the quarter-chord point. The AC is where the pitching moment M′ does not vary with a change in lift coefficient, i.e.,

${\frac {\partial (C_{M'})}{\partial (C_{L})}}=0.$
