نسبة پواسون

Poisson's ratio of a material defines the ratio of transverse strain (x direction) to the axial strain (y direction)

في علم المواد وميكانيكا الأجسام الصلبة، نسبة بواسون إنگليزية: Poisson's ratio تُنسب إلى العالم سيمون بواسون وهي النسبة بين الانفعال العرضي إلى الانفعال الطولي عندما يؤثر على العينة إجهاد ضمن حدود المرونة. في العادة عندما تشد المادة في أحد الاتجاهات، فإنها تميل إلى التقلص في الاتجاهين الآخرين، وعلى العكس عندما تضغط المادة في أحد الاتجاهات فإنها تميل إلى أن تتمدد في الاتجاهين الباقيين، وتكون نسبة بواسون (v) هي المقياس لهذا الميل للتمدد والتقلص.

لا يمكن أن تكون نسبة بواسون لأي مادة مستقرة أقل من -1.0 أو أكبر من 0.5، ومعظم المواد تكون نسبة بواسون لها في حدود 0.0 إلى 0.5.

 سبب تأثير بواسون

في المستوى الجزيئي للمادة يسبب تأثير بواسون بسبب الحركة البسيطة بين الجزيئات وتمدد الروابط في الشبكة الجزيئية لتتماشى مع الإجهاد المطبق. عندما تتمدد الروابط في اتجاه تطبيق الإجهاد فإنها تتقلص في الاتجاهات الأخرى وبضرب هذا السلوك لعدة ملايين من المرات ضمن الشبكة الجزيئية للمادة تظهر هذه الظاهرة للعيان.

 نسبة پواسون من تغيرات الهندسة

 تغير الطول

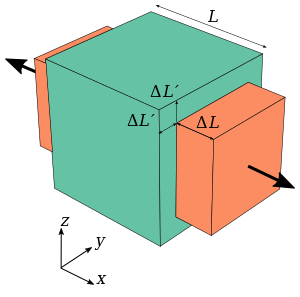

Figure 1: A cube with sides of length L of an isotropic linearly elastic material subject to tension along the x axis, with a Poisson's ratio of 0.5. The green cube is unstrained, the red is expanded in the x-direction by ΔL due to tension, and contracted in the y- and z-directions by ΔL′.

For a cube stretched in the x-direction (see Figure 1) with a length increase of ΔL in the x-direction, and a length decrease of ΔL′ in the y- and z-directions, the infinitesimal diagonal strains are given by

${\displaystyle{\displaystyle d\varepsilon_{x}={\frac{dx}{x}},\qquad d\varepsilon_{y}={\frac{dy}{y}},\qquad d\varepsilon_{z}={\frac{dz}{z}}.}}$

If Poisson's ratio is constant through deformation, integrating these expressions and using the definition of Poisson's ratio gives

${\displaystyle{\displaystyle-\nu\int_{L}^{L+\Delta L}{\frac{dx}{x}}=\int_{L}^{L+\Delta L^{\prime}}{\frac{dy}{y}}=\int_{L}^{L+\Delta L^{\prime}}{\frac{dz}{z}}.}}$

Solving and exponentiating, the relationship between ΔL and ΔL′ is then

${\displaystyle{\displaystyle\left(1+{\frac{\Delta L}{L}}\right)^{-\nu}=1+{\frac{\Delta L^{\prime}}{L}}.}}$

For very small values of ΔL and ΔL′, the first-order approximation yields:

${\displaystyle{\displaystyle\nu\approx-{\frac{\Delta L^{\prime}}{\Delta L}}.}}$

 التغير الحجمي

The relative change of volume ΔV/V of a cube due to the stretch of the material can now be calculated. Since V = L³ and

${\displaystyle{\displaystyle V+\Delta V=(L+\Delta L)\left(L+\Delta L^{\prime}\right)^{2}}}$

one can derive

${\displaystyle{\displaystyle{\frac{\Delta V}{V}}=\left(1+{\frac{\Delta L}{L}}\right)\left(1+{\frac{\Delta L^{\prime}}{L}}\right)^{2}-1}}$

Using the above derived relationship between ΔL and ΔL′:

${\displaystyle{\displaystyle{\frac{\Delta V}{V}}=\left(1+{\frac{\Delta L}{L}}\right)^{1-2\nu}-1}}$

and for very small values of ΔL and ΔL′, the first-order approximation yields:

${\displaystyle{\displaystyle{\frac{\Delta V}{V}}\approx(1-2\nu){\frac{\Delta L}{L}}}}$

For isotropic materials we can use Lamé's relation

${\displaystyle{\displaystyle\nu\approx{\frac{1}{2}}-{\frac{E}{6K}}}}$

where K is bulk modulus and E is Young's modulus.

 تغير العرض

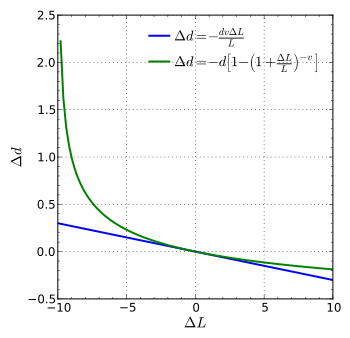

Figure 2: The blue slope represents a simplified formula (the top one in the legend) that works well for modest deformations, ∆L, up to about ±3. The green curve represents a formula better suited for larger deformations.

If a rod with diameter (or width, or thickness) d and length L is subject to tension so that its length will change by ΔL then its diameter d will change by:

${\displaystyle{\displaystyle{\frac{\Delta d}{d}}=-\nu{\frac{\Delta L}{L}}}}$

The above formula is true only in the case of small deformations; if deformations are large then the following (more precise) formula can be used:

${\displaystyle{\displaystyle\Delta d=-d\left(1-{\left(1+{\frac{\Delta L}{L}}\right)}^{-\nu}\right)}}$

where

• d is original diameter
• Δd is rod diameter change
• ν is Poisson's ratio
• L is original length, before stretch
• ΔL is the change of length.

The value is negative because it decreases with increase of length

 مواد مميِّزة

 Isotropic

For a linear isotropic material subjected only to compressive (i.e. normal) forces, the deformation of a material in the direction of one axis will produce a deformation of the material along the other axis in three dimensions. Thus it is possible to generalize Hooke's Law (for compressive forces) into three dimensions:

${\displaystyle{\displaystyle{\begin{aligned} \displaystyle\varepsilon_{xx}&\displaystyle={\frac{1}{E}}\left[\sigma_{xx}-\nu\left(\sigma_{yy}+\sigma_{zz}\right)\right]\\ \displaystyle\varepsilon_{yy}&\displaystyle={\frac{1}{E}}\left[\sigma_{yy}-\nu\left(\sigma_{zz}+\sigma_{xx}\right)\right]\\ \displaystyle\varepsilon_{zz}&\displaystyle={\frac{1}{E}}\left[\sigma_{zz}-\nu\left(\sigma_{xx}+\sigma_{yy}\right)\right]\end{aligned}}}}$

where:

• ε_xx, ε_yy, and ε_zz are strain in the direction of x, y and z
• σ_xx, σ_yy, and σ_zz are stress in the direction of x, y and z
• E is Young's modulus (the same in all directions for isotropic materials)
• ν is Poisson's ratio (the same in all directions for isotropic materials)

these equations can be all synthesized in the following:

${\displaystyle{\displaystyle\varepsilon_{ii}={\frac{1}{E}}\left[\sigma_{ii}(1+\nu)-\nu\sum_{k}\sigma_{kk}\right]}}$

In the most general case, also shear stresses will hold as well as normal stresses, and the full generalization of Hooke's law is given by:

${\displaystyle{\displaystyle\varepsilon_{ij}={\frac{1}{E}}\left[\sigma_{ij}(1+\nu)-\nu\delta_{ij}\sum_{k}\sigma_{kk}\right]}}$

where δ_ij is the Kronecker delta. The Einstein notation is usually adopted:

${\displaystyle{\displaystyle\sigma_{kk}\equiv\sum_{l}\delta_{kl}\sigma_{kl}}}$

to write the equation simply as:

${\displaystyle{\displaystyle\varepsilon_{ij}={\frac{1}{E}}\left[\sigma_{ij}(1+\nu)-\nu\delta_{ij}\sigma_{kk}\right]}}$

 Anisotropic

For anisotropic materials, the Poisson ratio depends on the direction of extension and transverse deformation

${\displaystyle{\displaystyle{\begin{aligned} \displaystyle\nu(\mathbf{n},\mathbf{m})&\displaystyle=-E\left(\mathbf{n}\right)s_{ij\alpha\beta}n_{i}n_{j}m_{\alpha}m_{\beta}\\ \displaystyle E^{-1}(\mathbf{n})&\displaystyle=s_{ij\alpha\beta}n_{i}n_{j}n_{\alpha}n_{\beta}\end{aligned}}}}$

Here ν is Poisson's ratio, E is Young's modulus, n is a unit vector directed along the direction of extension, m is a unit vector directed perpendicular to the direction of extension. Poisson's ratio has a different number of special directions depending on the type of anisotropy.

 Orthotropic

المقالة الرئيسية: Orthotropic material

Orthotropic materials have three mutually perpendicular planes of symmetry in their material properties. An example is wood, which is most stiff (and strong) along the grain, and less so in the other directions.

Then Hooke's law can be expressed in matrix form as

${\displaystyle{\displaystyle{\begin{bmatrix}\epsilon_{xx}\\ \epsilon_{yy}\\ \epsilon_{zz}\\ 2\epsilon_{yz}\\ 2\epsilon_{zx}\\ 2\epsilon_{xy}\end{bmatrix}}={\begin{bmatrix}{\tfrac{1}{E_{x}}}&-{\tfrac{\nu_{yx}}{E_{y}}}&-{\tfrac{\nu_{zx}}{E_{z}}}&0&0&0\\ -{\tfrac{\nu_{xy}}{E_{x}}}&{\tfrac{1}{E_{y}}}&-{\tfrac{\nu_{zy}}{E_{z}}}&0&0&0\\ -{\tfrac{\nu_{xz}}{E_{x}}}&-{\tfrac{\nu_{yz}}{E_{y}}}&{\tfrac{1}{E_{z}}}&0&0&0\\ 0&0&0&{\tfrac{1}{G_{yz}}}&0&0\\ 0&0&0&0&{\tfrac{1}{G_{zx}}}&0\\ 0&0&0&0&0&{\tfrac{1}{G_{xy}}}\\ \end{bmatrix}}{\begin{bmatrix}\sigma_{xx}\\ \sigma_{yy}\\ \sigma_{zz}\\ \sigma_{yz}\\ \sigma_{zx}\\ \sigma_{xy}\end{bmatrix}}}}$

where

• E_i is the Young's modulus along axis i
• G_ij is the shear modulus in direction j on the plane whose normal is in direction i
• ν_ij is the Poisson ratio that corresponds to a contraction in direction j when an extension is applied in direction i.

The Poisson ratio of an orthotropic material is different in each direction (x, y and z). However, the symmetry of the stress and strain tensors implies that not all the six Poisson's ratios in the equation are independent. There are only nine independent material properties: three elastic moduli, three shear moduli, and three Poisson's ratios. The remaining three Poisson's ratios can be obtained from the relations

${\displaystyle{\displaystyle{\frac{\nu_{yx}}{E_{y}}}={\frac{\nu_{xy}}{E_{x}}}\,,\qquad{\frac{\nu_{zx}}{E_{z}}}={\frac{\nu_{xz}}{E_{x}}}\,,\qquad{\frac{\nu_{yz}}{E_{y}}}={\frac{\nu_{zy}}{E_{z}}}}}$

From the above relations we can see that if E_x > E_y then ν_xy > ν_yx. The larger ratio (in this case ν_xy) is called the major Poisson ratio while the smaller one (in this case ν_yx) is called the minor Poisson ratio. We can find similar relations between the other Poisson ratios.

 Transversely isotropic

Transversely isotropic materials have a plane of isotropy in which the elastic properties are isotropic. If we assume that this plane of isotropy is the yz-plane, then Hooke's law takes the form

${\displaystyle{\displaystyle{\begin{bmatrix}\epsilon_{xx}\\ \epsilon_{yy}\\ \epsilon_{zz}\\ 2\epsilon_{yz}\\ 2\epsilon_{zx}\\ 2\epsilon_{xy}\end{bmatrix}}={\begin{bmatrix}{\tfrac{1}{E_{x}}}&-{\tfrac{\nu_{yx}}{E_{y}}}&-{\tfrac{\nu_{zx}}{E_{z}}}&0&0&0\\ -{\tfrac{\nu_{xy}}{E_{x}}}&{\tfrac{1}{E_{y}}}&-{\tfrac{\nu_{zy}}{E_{z}}}&0&0&0\\ -{\tfrac{\nu_{xz}}{E_{x}}}&-{\tfrac{\nu_{yz}}{E_{y}}}&{\tfrac{1}{E_{z}}}&0&0&0\\ 0&0&0&{\tfrac{1}{G_{\rm{yz}}}}&0&0\\ 0&0&0&0&{\tfrac{1}{G_{\rm{zx}}}}&0\\ 0&0&0&0&0&{\tfrac{1}{G_{\rm{xy}}}}\\ \end{bmatrix}}{\begin{bmatrix}\sigma_{xx}\\ \sigma_{yy}\\ \sigma_{zz}\\ \sigma_{yz}\\ \sigma_{zx}\\ \sigma_{xy}\end{bmatrix}}}}$

where we have used the yz-plane of isotropy to reduce the number of constants, that is,

${\displaystyle{\displaystyle E_{y}=E_{z},\qquad\nu_{xy}=\nu_{xz},\qquad\nu_{yx}=\nu_{zx}.}}$.

The symmetry of the stress and strain tensors implies that

${\displaystyle{\displaystyle{\frac{\nu_{xy}}{E_{x}}}={\frac{\nu_{yx}}{E_{y}}},\qquad\nu_{yz}=\nu_{zy}.}}$

This leaves us with six independent constants E_x, E_y, G_xy, G_yz, ν_xy, ν_yz. However, transverse isotropy gives rise to a further constraint between G_yz and E_y, ν_yz which is

${\displaystyle{\displaystyle G_{yz}={\frac{E_{y}}{2\left(1+\nu_{yz}\right)}}.}}$

Therefore, there are five independent elastic material properties two of which are Poisson's ratios. For the assumed plane of symmetry, the larger of ν_xy and ν_yx is the major Poisson ratio. The other major and minor Poisson ratios are equal.

 قيم نسبة بواسون لمختلف المواد

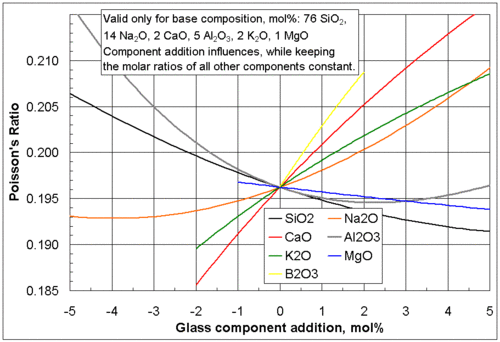

Influences of selected glass component additions on Poisson's ratio of a specific base glass.

Material	Poisson's ratio
rubber	0.4999
gold	0.42–0.44
saturated clay	0.40–0.49
magnesium	0.252–0.289
titanium	0.265–0.34
copper	0.33
aluminium alloy	0.32
clay	0.30–0.45
stainless steel	0.30–0.31
steel	0.27–0.30
cast iron	0.21–0.26
sand	0.20–0.455
concrete	0.1–0.2
glass	0.18–0.3
metallic glasses	0.276–0.409
foam	0.10–0.50
cork	0.0

Material	Plane of symmetry	νxy	νyx	νyz	νzy	νzx	νxz
Nomex honeycomb core	xy, ribbon in x direction	0.49	0.69	0.01	2.75	3.88	0.01
glass fiber epoxy resin	xy	0.29	0.32	0.06	0.06	0.32

 المواد ذات قيم سالبة لنسبة بواسون

هناك مواد يطلق عليها أوكسيتك تظهر قيم سالبة لنسبة بواسون. حيث أنها عند خضوعها لإجهاد شد فإن إجهاد القص يكون ذو قيمة موجبة (أي أن مساحة مقطعها العرضي يزداد).

Some materials known as auxetic materials display a negative Poisson's ratio. When subjected to positive strain in a longitudinal axis, the transverse strain in the material will actually be positive (i.e. it would increase the cross sectional area). For these materials, it is usually due to uniquely oriented, hinged molecular bonds. In order for these bonds to stretch in the longitudinal direction, the hinges must ‘open’ in the transverse direction, effectively exhibiting a positive strain. This can also be done in a structured way and lead to new aspects in material design as for mechanical metamaterials.

Studies have shown that certain solid wood types display negative Poisson's ratio exclusively during a compression creep test. Initially, the compression creep test shows positive Poisson's ratios, but gradually decreases until it reaches negative values. Consequently, this also shows that Poisson's ratio for wood is time-dependent during constant loading, meaning that the strain in the axial and transverse direction do not increase in the same rate.

Media with engineered microstructure may exhibit negative Poisson's ratio. In a simple case auxeticity is obtained removing material and creating a periodic porous media. Lattices can reach lower values of Poisson's ratio, which can be indefinitely close to the limiting value −1 in the isotropic case.

More than three hundred crystalline materials have negative Poisson's ratio. For example, Li, Na, K, Cu, Rb, Ag, Fe, Ni, Co, Cs, Au, Be, Ca, Zn Sr, Sb, MoS₂ and others.

 دالة پواسون

At finite strains, the relationship between the transverse and axial strains ε_trans and ε_axial is typically not well described by the Poisson ratio. In fact, the Poisson ratio is often considered a function of the applied strain in the large strain regime. In such instances, the Poisson ratio is replaced by the Poisson function, for which there are several competing definitions. Defining the transverse stretch λ_trans = ε_trans + 1 and axial stretch λ_axial = ε_axial + 1, where the transverse stretch is a function of the axial stretch, the most common are the Hencky, Biot, Green, and Almansi functions:

${\displaystyle{\displaystyle{\begin{aligned} \displaystyle\nu^{\text{Hencky}}&\displaystyle=-{\frac{\ln\lambda_{\text{trans}}}{\ln\lambda_{\text{axial}}}}\\ \displaystyle\nu^{\text{Biot}}&\displaystyle={\frac{1-\lambda_{\text{trans}}}{\lambda_{\text{axial}}-1}}\\ \displaystyle\nu^{\text{Green}}&\displaystyle={\frac{1-\lambda_{\text{trans}}^{2}}{\lambda_{\text{axial}}^{2}-1}}\\ \displaystyle\nu^{\text{Almansi}}&\displaystyle={\frac{\lambda_{\text{trans}}^{-2}-1}{1-\lambda_{\text{axial}}^{-2}}}\end{aligned}}}}$

 تطبيقات مفعول پواسون

One area in which Poisson's effect has a considerable influence is in pressurized pipe flow. When the air or liquid inside a pipe is highly pressurized it exerts a uniform force on the inside of the pipe, resulting in a hoop stress within the pipe material. Due to Poisson's effect, this hoop stress will cause the pipe to increase in diameter and slightly decrease in length. The decrease in length, in particular, can have a noticeable effect upon the pipe joints, as the effect will accumulate for each section of pipe joined in series. A restrained joint may be pulled apart or otherwise prone to failure.

Another area of application for Poisson's effect is in the realm of structural geology. Rocks, like most materials, are subject to Poisson's effect while under stress. In a geological timescale, excessive erosion or sedimentation of Earth's crust can either create or remove large vertical stresses upon the underlying rock. This rock will expand or contract in the vertical direction as a direct result of the applied stress, and it will also deform in the horizontal direction as a result of Poisson's effect. This change in strain in the horizontal direction can affect or form joints and dormant stresses in the rock.

Although cork was historically chosen to seal wine bottle for other reasons (including its inert nature, impermeability, flexibility, sealing ability, and resilience), cork's Poisson's ratio of zero provides another advantage. As the cork is inserted into the bottle, the upper part which is not yet inserted does not expand in diameter as it is compressed axially. The force needed to insert a cork into a bottle arises only from the friction between the cork and the bottle due to the radial compression of the cork. If the stopper were made of rubber, for example, (with a Poisson's ratio of about +0.5), there would be a relatively large additional force required to overcome the radial expansion of the upper part of the rubber stopper.

Most car mechanics are aware that it is hard to pull a rubber hose (such as a coolant hose) off a metal pipe stub, as the tension of pulling causes the diameter of the hose to shrink, gripping the stub tightly. (This is the same effect as shown in a Chinese finger trap.) Hoses can more easily be pushed off stubs instead using a wide flat blade.
