تحصينات القرون الوسطي
.jpg&filetimestamp=20241218161836&)
Medieval fortification refers to medieval military methods that cover the development of fortification construction and use in Europe, roughly from the fall of the Western Roman Empire to the Renaissance. During this millennium, fortifications changed warfare, and in turn were modified to suit new tactics, weapons and siege techniques.
أنواع التحصينات
أبراج الرماة
Towers of medieval castles were usually made of stone, wood or a combination of both (with a stone base supporting a wooden loft). Often toward the later part of the era they included battlements and arrow loops. Arrow loops were vertical slits in the wall through which archers inside shot arrows at the attackers, but made it extremely difficult for attackers to get many arrows back through at the defenders.
Siege Defenses
Sieges were common during the Middle Ages and because of this many cities fortified their walls and castles to defend against the use of siege engines by their attackers1. Many cities utilized catapults that would hurl stones and other missiles at enemy siege engines and soldiers. The most commonly used catapult for defense was the trebuchet, a torsion powered catapult that dominated the Middle Ages both offensively and defensively. The trebuchet was known for its considerable force but required a longer loading time compared to other siege engines, sometimes taking up to an hour, which lead to some cities using catapults such as the mangonel and onager instead, which could put projectiles downrange much faster than the trebuchet. The trebuchet’s destructive force caused engineers to thicken walls, round out towers, and to redesign fortifications so that they could employ trebuchets for defense. The Ayyubids between 1196 and 1218 built towers mounted with massive trebuchets, which hypothetically would use their height advantage to take out opposing siege engines.[1] Ballistas were another type of catapult utilized as a defensive weapon, however they were not often used. This is because their missiles sometimes lacked the force to dismantle enemy siege engines and their immobility confined them to the top of a city's towers were they could easily be taken out by enemy catapults, including offensive ballistas which were usually employed for the very reason of dismantling defenses on the top of towers and keeping defenders off of a wall's battlements. After the invention of cannons near the beginning of 12th century CE, many torsion powered catapults became largely obsolete and cannons became commonplace medieval siege engines by the 15th century. While mostly used for offensive purposes, the first recorded use of a cannon in Europe was to defend the city of Algeciras during the siege of 1343-44.[2] However slow to load, cannons proved to be devastating weapons that could level a city's walls or destroy siege engines with only a single projectile.
City walls
An exact nature of the walls of a medieval town or city would depend on the resources available for building them, the nature of the terrain, and the perceived threat. In northern Europe, early in the period, walls were likely to have been constructed of wood and proofed against small forces. Especially where stone was readily available for building, the wood will have been replaced by stone to a higher or lower standard of security. This would have been the pattern of events in the Five Boroughs of the Danelaw in England.
In many cases, the wall would have had an internal and an external pomoerium. This was a strip of clear ground immediately adjacent the wall. The word is from the late medieval, derived from the classical Latin post murum ("behind the wall").
An external pomoerium, stripped of bushes and building, gave defenders a clear view of what was happening outside and an unobstructed field of shot. An internal pomoerium gave ready access to the rear of the curtain wall to facilitate movement of the garrison to a point of need. By the end of the sixteenth century, the word had developed further in common use, into pomery.
Also by that time, the medieval walls were no longer secure against a serious threat from an army, as they were not designed to be strong enough to resist cannon fire. They were sometimes rebuilt, as at Berwick on Tweed, or retained for use against thieves and other threats of a lower order. Very elaborate and complex schemes for town defenses were developed in the Netherlands and France, but these belong mainly to the post-medieval periods. By 1600, the medieval wall is likely to have been seen more as a platform for displaying hangings and the pomery as a gathering ground for spectators, or as a source of building stone and a site for its use, respectively. However, a few, such as those of Carcassonne and Dubrovnik, survived fairly well and have been restored to a nearly complete state.
Medieval walls that were no longer adequate for defending were succeeded by the star fort. After the invention of the explosive shell, star forts became obsolete as well.
Harbors
Harbors or some sort of water access were often essential to the construction of medieval fortifications. It was a direct route for trading and fortification. Having direct access to a body of water provided a route for resupply in times of war, an additional method of transportation in times of peace, and potential drinking water for a besieged castle or fortification. The concept of rivers or harbors coming directly up to the walls of fortifications was especially used by the English as they constructed castles throughout Wales. There is evidence that harbors were fortified, with wooden structures in the water creating a semi-circle around the harbor, or jetties, as seen in an artist's reconstruction of Hedeby, in Denmark, with an opening for ships to access the land. Usually, these wooden structures would have small bases at either end, creating a 'watch' and defense platform.
Churches and monasteries
Religion was a central part of the lives of medieval soldiers, and churches, chapels, monasteries, and other buildings of religious function were often included within the walls of any fortification, be it temporary or permanent. A place to conduct religious services was usually essential to the morale of the soldiers.
_jeste_lepe.jpg&filetimestamp=20241218161820&)
Mottes and baileys
Motte-and-bailey was the prevalent form of castle during 11th and 12th centuries. A courtyard (called a bailey) was protected by a ditch and a palisade (strong timber fence). Often the entrance was protected by a lifting bridge, a drawbridge or a timber gate tower. Inside the bailey were stables, workshops, and a chapel. The motte was the final refuge in this type of castle. It was a raised earth mound, and varied considerably, with these mounds being 3 metres to 30 metres in height (10 feet to 100 feet), and from 30 to 90 metres (98 to 295 ft) in diameter.[3] There was a tower on top of the motte. In most cases, the tower was made of timber, though some were also made of stones. Stone towers were found in natural mounds, as artificial ones were not strong enough to support stone towers. Larger mottes had towers with many rooms, including the great hall. Smaller ones had only a watch tower.
Construction
Construction could sometimes take decades. The string of Welsh castles Edward I of England had built were an exception in that he focused much of the resources of his kingdom on their speedy construction. In addition to paid workers, forced levies of labourers put thousands of men on each site and shortened construction to a few years.
Location
Nature could provide very effective defenses for the castle. For this reason many castles were built on larger hills, cliffs, close to rivers, lakes or even caves.
Materials
Materials that were used in the building of castles varied through history. Wood was used for most castles until 1066. They were cheap and were quick to construct. The reason wood fell into disuse as a material is that it is quite flammable. Soon stone became more popular.
Stone castles took years to construct depending on the overall size of the castle. Stone was stronger and of course much more expensive than wood. Most stone had to be quarried miles away, and then brought to the building site. But with the invention of the cannon and gunpowder, castles soon lost their power.
Costs
.jpg&filetimestamp=20241218161803&)
Costs for the walls depended on the material used. Wood would cost very little and was quick to build, but was weak. Stone was strong but very expensive and time-consuming to construct.
Manpower
Work was done by teams of craftsmen assisted by local labor. For larger projects, skilled labor would often be brought in from surrounding areas.[4]
Walls
The height of walls varied widely by castle, but were often 2.5–6 m (8.2–19.7 ft) thick. They were usually topped with crenellation or parapets that offered protection to defenders. Some also featured machicolations (from the French machicoulis, approximately "neck-crusher") which consisted of openings between a wall and a parapet, formed by corbelling out the latter, allowing defenders to throw stones, boiling water, and so forth, upon assailants below. Some castles featured additional inner walls, as additional fortifications from which to mount a defense if outer walls were breached.
Gates
Any entrance through a wall, being an opening, forms an obvious weak point. To be practical, the entryway would have to accommodate supplies being brought through, yet difficult for attackers to breach. For example, passage over ditches or moats would have to be withdrawn to deny attackers. The use of multiple walls or ditches around an entrance would also make it difficult for defenders to use the entrance practically, necessitating better methods of control. Gates came in many forms, from the simple stone buttress and timber blocks,[5] to the massive and imposing stone archways and thick wooden doors most associated with medieval citadels.
Killing fields
A killing field was an area between the main wall and a secondary wall, so when the first wall was breached the attackers would run into the killing field to be confronted by another wall from which soldiers bombarded them. Soldiers would be positioned atop the second wall and armed with any variety of weapons, ranging from bows to crossbows to simple rocks.
Moats
A moat was a common addition to medieval fortifications, and the principal purpose was to simply increase the effective height of the walls and to prevent digging under the walls. In many instances, natural water paths were used as moats, and often extended through ditches to surround as much of the fortification as possible. Provided this was not so unnaturally contrived as to allow an attacker to drain the system, it served two defensive purposes. It made approaching the curtain wall of the castle more difficult and the undermining of the wall virtually impossible. To position a castle on a small island was very favorable from a defensive point of view, although it made deliveries of supplies and building materials more cumbersome and expensive.
Keeps
A keep is a strong central tower which normally forms the heart of a castle. Often the keep is the most defended area of a castle, and as such may form the main habitation area for a noble or lord, or contain important stores such as the armoury or the main well.
Stairs

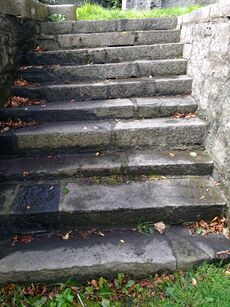

Stairs were also constructed to contain trick or stumble steps. These were steps that had different rise height or tread depth from the rest and would cause anyone running up the stairs to stumble or fall, so slowing down the attackers' progress.
Doors
A typical exterior wooden door might be made out of two or more layers of oak planks. The grain of the wood would run vertically on the front layer and horizontally on the back, like a simple form of plywood. The two layers would be held together by iron studs, and the structure might be strengthened and stiffened with iron bands.
The studs themselves were pointed on the front so that attackers would damage their weapons (swords, axes, etc.) while trying to break through.
Transition to modern fortification
From the mid-15th century onwards, the power of cannons grew and medieval walls became obsolete as they were too thin to offer any realistic protection against prolonged bombardment.[6] As a consequence of this, medieval walls were often upgraded with the addition of artillery platforms or bastions, and battlements were replaced by thick parapets with embrasures. In many cases, the medieval walls were dismantled and their stonework, which was still valuable as construction material, was reused in the construction of the new fortifications.[7] The resulting space is often seen in old city centers of Europe even to this day, as broader streets often outline where the old wall once stood (evident for example in Prague and Florence, Italy).
The transition between medieval and early modern fortification can be seen in the fortifications of Rhodes in Greece and the fortifications of Famagusta in Cyprus.[8]
Defensive obstacles
Just as modern military engineers enhance field fortifications with obstacles such as barbed wire, medieval engineers used a number of obstacle types including abatis, caltrops, cheval de frise, and trou de loup.
Siegecraft
See also
- Medieval warfare
- Siege engine
- Guédelon Castle - from 1996 to 2020 they will build a 13th-century castle exclusively using methods of that time. A lot of information regarding castrametation and castellology had already surfaced thanks to this project.
- Star fort replaced medieval fortifications.
- Encastellation
- Rocca di Manerba del Garda
- Castle Site of Montbazon
Notes
- These defenses were not only used as counter-measures against siege engines and were effective defenses against many other forms of attack including the dispatchment of attackers unshielded by siege engines.
References
- ^ Brown, University (2008). "Part Two: Impact". www.brown.edu. Retrieved 2024-04-24.
- ^ Finlayson, Clive (2024). "The Development of Artillery". Gibraltar National Museum (in الإنجليزية). Retrieved 2024-04-24.
- ^ Toy, p.52.
- ^ Speculum, Vol. 39 No. 3 July 1964
- ^ Avery, Michael (October 1986). World Archeology. Vol. 18. pp. 216–230.
- ^ Pañeda Ruiz, José Manuel. "Evolution of siege techniques: From the Catholic Monarchs to Vauban" (PDF). MilitaryArchitecture.com. pp. 6–7. Archived from the original (PDF) on 10 August 2015. Retrieved 22 October 2015.
- ^ Spiteri, Stephen C. (2009). "A Cubete Artillero at Mdina? – Gunpowder fortifications in Late Medieval Malta" (PDF). Proceedings of History Week: 150–159. Archived from the original (PDF) on 14 April 2016.
- ^ Walsh, Michael J. K.; Coureas, Nicholas; Edbury, Peter W., eds. (2012). Medieval and Renaissance Famagusta: Studies in Architecture, Art and History. Ashgate Publishing, Ltd. p. 191. ISBN 9781409435570.
Bibliography
- Toy, Sidney. (1985) Castles: Their Construction and History. ISBN 978-0-486-24898-1.
